Suzuki DF 250 Parts Listings - 2014
S/N 25003F-410001 to 25003F-41XXXX
S/N 25003Z-410001 to 25003Z-41XXXX

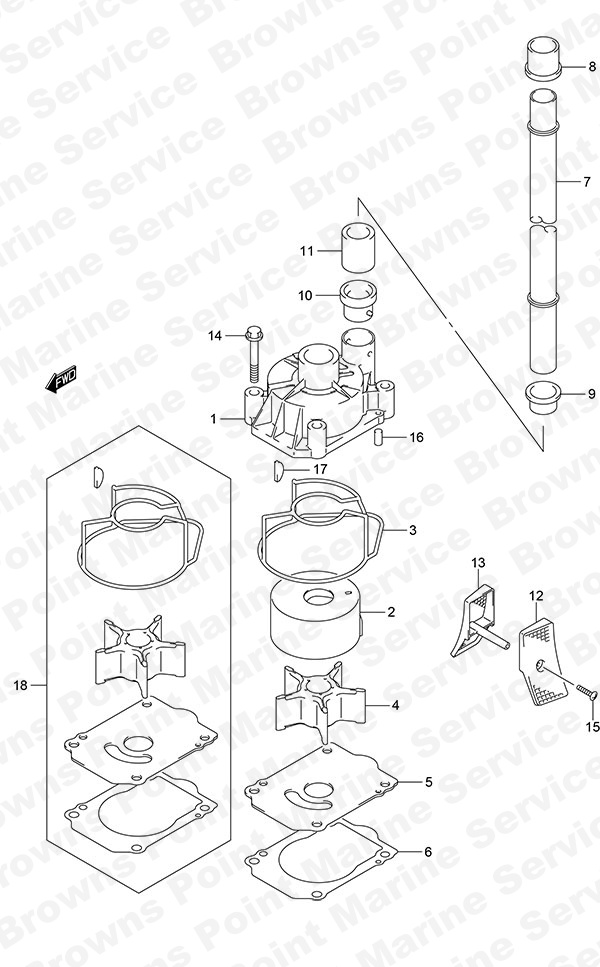

Fig. 58 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17410-93J01 Water Pump Case
SKU: 17410-93J01 Weight: 0.420000 Brand: Price: $ 73.00 |
Water Pump Case | 1 | $ 73.00 | ||
| 2 | 17413-93J02 Water Pump Case Sleeve
SKU: 17413-93J02 Weight: 0.250000 Brand: Price: $ 22.77 |
Water Pump Case Sleeve | 1 | $ 22.77 | ||
| 3 | 17416-93J01 Water Pump Seal Ring
SKU: 17416-93J01 Weight: 0.060000 Brand: Price: $ 7.16 |
Water Pump Seal Ring | 1 | $ 7.16 | ||
| 4 | 17461-93J01 IMPELLER,WATER
SKU: 17461-93J01 Weight: 0.000000 Brand: Price: $ 29.55 |
IMPELLER,WATER | 1 | $ 29.55 | ||
| 5 | 17471-93J02 Water Pump Plate
SKU: 17471-93J02 Weight: 0.340000 Brand: Price: $ 13.07 |
Water Pump Plate | 1 | $ 13.07 | ||
| 6 | 17472-93J00 Water Pump Plate Gasket
SKU: 17472-93J00 Weight: 0.060000 Brand: Price: $ 7.68 |
Water Pump Plate Gasket | 1 | $ 7.68 | ||
| 7-1 | 17561-93J03 Water Tube (X)
SKU: 17561-93J03 Weight: 0.500000 Brand: Price: $ 46.77 |
Water Tube (X) | 1 | $ 46.77 | Type: X | |
| 7-2 | 17561-93J13 Water Tube (XX)
SKU: 17561-93J13 Weight: 0.500000 Brand: Price: $ 60.79 |
Water Tube (XX) | 1 | $ 60.79 | Type: XX | |
| 8 | 17562-93J01 Upper Water Tube Bushing
SKU: 17562-93J01 Weight: 0.125000 Brand: Price: $ 3.22 |
Upper Water Tube Bushing | 1 | $ 3.22 | ||
| 9 | 17563-93J01 Lower Water Tube Bushing
SKU: 17563-93J01 Weight: 0.060000 Brand: Price: $ 3.14 |
Lower Water Tube Bushing | 1 | $ 3.14 | ||
| 10 | 17564-93J01 Water Pump Case Bushing
SKU: 17564-93J01 Weight: 0.060000 Brand: Price: $ 3.34 |
Water Pump Case Bushing | 1 | $ 3.34 | ||
| 11 | 17612-93J00 Water Tube Spacer
SKU: 17612-93J00 Weight: 0.060000 Brand: Price: $ 5.44 |
Water Tube Spacer | 1 | $ 5.44 | ||
| 12-1 | 17631-93J20 Port Side Water Filter
SKU: 17631-93J20 Weight: 0.060000 Brand: Price: $ 9.53 |
Port Side Water Filter | 1 | $ 9.53 | ||
| 12-2 | 17631-93J30 Port Side Water Filter
SKU: 17631-93J30 Weight: 0.060000 Brand: Price: $ 10.84 |
Port Side Water Filter | 1 | $ 10.84 | Optional | |
| 13-1 | 17632-93J20 Starboard Side Water Filter
SKU: 17632-93J20 Weight: 0.060000 Brand: Price: $ 9.53 |
Starboard Side Water Filter | 1 | $ 9.53 | ||
| 13-2 | 17632-93J30 Starboard Side Water Filter
SKU: 17632-93J30 Weight: 0.060000 Brand: Price: $ 10.84 |
Starboard Side Water Filter | 1 | $ 10.84 | Optional | |
| 14 | 09116-08131 Bolt (8x45)
SKU: 09116-08131 Weight: 0.060000 Brand: Price: $ 5.06 |
Bolt (8x45) | 4 | $ 5.06 | ||
| 15 | 09132-04034 Screw (4x18)
SKU: 09132-04034 Weight: 0.060000 Brand: Price: $ 2.32 |
Screw (4x18) | 1 | $ 2.32 | ||
| 16 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.14 |
Knock Pin (6x12) | 2 | $ 2.14 | ||
| 17 | 09420-05009 Water Pump Key
SKU: 09420-05009 Weight: 0.060000 Brand: Price: $ 6.12 |
Water Pump Key | 1 | $ 6.12 | ||
| 18 | 17400-93J06 Water Pump Repair Kit DF200/225/250
SKU: 17400-93J06 Weight: 0.000000 Brand: Price: $ 49.63 |
Water Pump Repair Kit DF200/225/250 | 1 | $ 49.63 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
