Suzuki DF 250 Parts Listings - 2014
S/N 25003F-410001 to 25003F-41XXXX
S/N 25003Z-410001 to 25003Z-41XXXX
S/N 25004F-410001 to 25004F-41XXXX

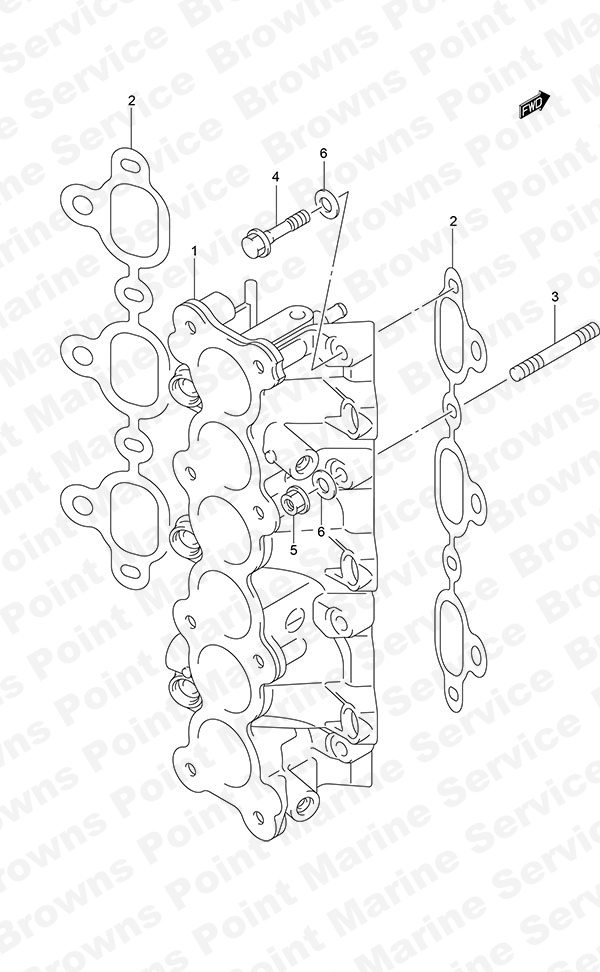

Fig. 37 - Intake Manifold

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 13110-93J00 Intake Manifold 1 $ 490.29
2 13119-93J00 Intake Manifold Gasket 2 $ 15.01
3 09108-08282 Stud Bolt 4 $ 9.42
4 09103-08437 Bolt (8x65) 4 $ 8.90
5 09159-08136 Nut 4 $ 2.72
6 09160-08016 Washer (8.5x20x2.0) 8 $ 1.93

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
