Suzuki DF 250 Parts Listings - 2014
S/N 25003F-410001 to 25003F-41XXXX
S/N 25003Z-410001 to 25003Z-41XXXX

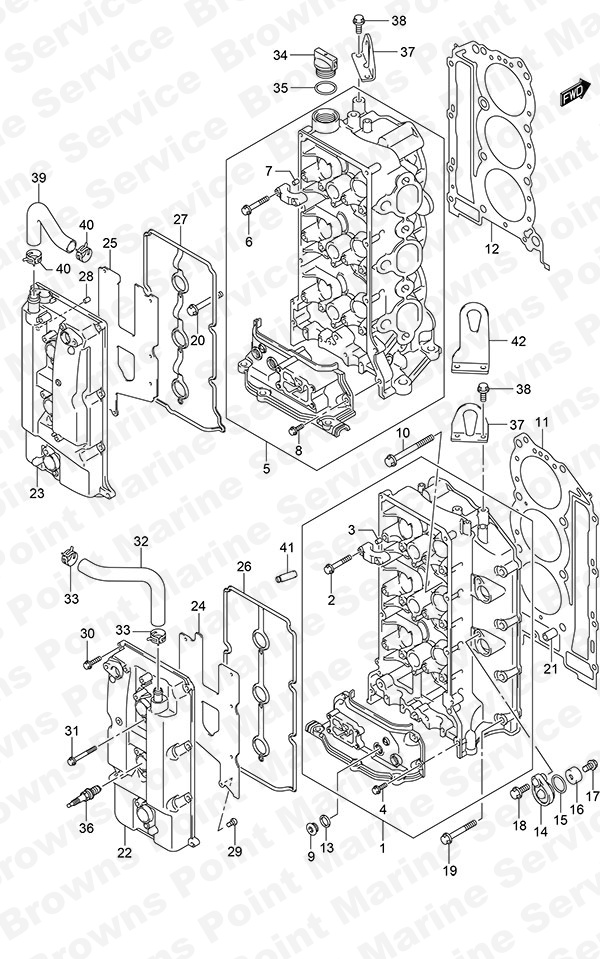

Fig. 5 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11101-93J13 Starboard Cylinder Head Assembly
SKU: 11101-93J13 Weight: 25.000000 Brand: Price: $ 1,958.76 |
Starboard Cylinder Head Assembly | 1 | $ 1,958.76 | ||
| 2 | 11128-90J00 Camshaft Housing Bolt
SKU: 11128-90J00 Weight: 0.060000 Brand: Price: $ 2.99 |
Camshaft Housing Bolt | 16 | $ 2.99 | ||
| 3 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 14 | $ 1.78 | ||
| 4 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 5 | 11103-93J13 Port Cylinder Head Assembly
SKU: 11103-93J13 Weight: 25.000000 Brand: Price: $ 2,284.70 |
Port Cylinder Head Assembly | 1 | $ 2,284.70 | ||
| 6 | 11128-90J00 Camshaft Housing Bolt
SKU: 11128-90J00 Weight: 0.060000 Brand: Price: $ 2.99 |
Camshaft Housing Bolt | 16 | $ 2.99 | ||
| 7 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 14 | $ 1.78 | ||
| 8 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 9 | 11116-93J01 Plug
SKU: 11116-93J01 Weight: 0.100000 Brand: Price: $ 3.65 |
Plug | 4 | $ 3.65 | ||
| 10 | 11119-93J00 Cylinder Head Bolt
SKU: 11119-93J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Cylinder Head Bolt | 16 | $ 7.13 | ||
| 11 | 11141-93J10 Starboard Cylinder Head Gasket
SKU: 11141-93J10 Weight: 0.360000 Brand: Price: $ 83.79 |
Starboard Cylinder Head Gasket | 1 | $ 83.79 | ||
| 12 | 11142-93J10 Port Cylinder Head Gasket
SKU: 11142-93J10 Weight: 6.000000 Brand: Price: $ 90.96 |
Port Cylinder Head Gasket | 1 | $ 90.96 | ||
| 13 | 09168-16009 Gasket (16x22x0.8)
SKU: 09168-16009 Weight: 0.060000 Brand: Price: $ 2.52 |
Gasket (16x22x0.8) | 4 | $ 2.52 | ||
| 14 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 4 | $ 16.29 | ||
| 15 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 4 | $ 2.38 | ||
| 16 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 4 | $ 7.36 | ||
| 17 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 4 | $ 2.99 | ||
| 18 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 4 | $ 2.74 | ||
| 19 | 01550-08607 BOLT
SKU: 01550-08607 Weight: 0.060000 Brand: Price: $ 3.82 |
BOLT | 5 | $ 3.82 | Starboard | |
| 20 | 01550-08607 BOLT
SKU: 01550-08607 Weight: 0.060000 Brand: Price: $ 3.82 |
BOLT | 4 | $ 3.82 | Port | |
| 21 | 09206-14004 Pin (14x11.4x23)
SKU: 09206-14004 Weight: 0.100000 Brand: Price: $ 4.11 |
Pin (14x11.4x23) | 4 | $ 4.11 | ||
| 22 | 11170-93J01 Cylinder Head Cover - Starboard (NLA)
SKU: 11170-93J01 Weight: 2.000000 Brand: Price: $ 299.76 |
Cylinder Head Cover - Starboard (NLA) | 1 | $ 299.76 | ||
| 23 | 11180-93J22 Port Cylinder Head Cover
SKU: 11180-93J22 Weight: 5.000000 Brand: Price: $ 275.40 |
Port Cylinder Head Cover | 1 | $ 275.40 | ||
| 24 | 11173-93J00 Breather Plate - Starboard (NLA)
SKU: 11173-93J00 Weight: 1.000000 Brand: Price: $ 5.17 |
Breather Plate - Starboard (NLA) | 1 | $ 5.17 | ||
| 25 | 11183-93J00 Breather Plate - Port (NLA)
SKU: 11183-93J00 Weight: 1.000000 Brand: Price: $ 6.27 |
Breather Plate - Port (NLA) | 1 | $ 6.27 | ||
| 26 | 11179-93J00 Cylinder Head Cover Gasket - Starboard
SKU: 11179-93J00 Weight: 0.125000 Brand: Price: $ 22.76 |
Cylinder Head Cover Gasket - Starboard | 1 | $ 22.76 | ||
| 27 | 11189-93J00 Cylinder Head Cover Gasket - Port
SKU: 11189-93J00 Weight: 0.125000 Brand: Price: $ 22.00 |
Cylinder Head Cover Gasket - Port | 1 | $ 22.00 | ||
| 28 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 1 | $ 1.78 | ||
| 29 | 02112-0612A SCREW
SKU: 02112-0612A Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 14 | $ 1.44 | ||
| 30 | 01547-06257 BOLT 6X25
SKU: 01547-06257 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6X25 | 16 | $ 2.04 | ||
| 31 | 01547-06507 BOLT 6 X 50
SKU: 01547-06507 Weight: 0.200000 Brand: Price: $ 2.41 |
BOLT 6 X 50 | 6 | $ 2.41 | ||
| 32 | 11174-93J00 Breather Hose
SKU: 11174-93J00 Weight: 0.500000 Brand: Price: $ 8.60 |
Breather Hose | 1 | $ 8.60 | ||
| 33 | 09401-18410 Clip
SKU: 09401-18410 Weight: 0.060000 Brand: Price: $ 3.64 |
Clip | 2 | $ 3.64 | ||
| 34 | 11382-93J00 Oil Filler Cap
SKU: 11382-93J00 Weight: 0.060000 Brand: Price: $ 5.26 |
Oil Filler Cap | 1 | $ 5.26 | ||
| 35 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 36 | 09482-00427 NGK BKR6E Spark Plug
SKU: 09482-00427 Weight: 0.187500 Brand: Price: $ 3.77 |
NGK BKR6E Spark Plug | 6 | $ 3.77 | ||
| 37 | 11291-93J00 Engine Hook
SKU: 11291-93J00 Weight: 0.300000 Brand: Price: $ 11.89 |
Engine Hook | 2 | $ 11.89 | ||
| 38 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 4 | $ 2.74 | ||
| 39 | 11184-93J00 Breather Hose
SKU: 11184-93J00 Weight: 0.500000 Brand: Price: $ 8.33 |
Breather Hose | 1 | $ 8.33 | ||
| 40 | 09401-18410 Clip
SKU: 09401-18410 Weight: 0.060000 Brand: Price: $ 3.64 |
Clip | 2 | $ 3.64 | ||
| 41 | 11115-93J10-001 Valve Guide (OS:0.5)
SKU: 11115-93J10-001 Weight: 0.060000 Brand: Price: $ 39.45 |
Valve Guide (OS:0.5) | 24 | $ 39.45 | Optional | |
| 42 | 11291-98J00 Engine Hook
SKU: 11291-98J00 Weight: 0.250000 Brand: Price: $ 16.48 |
Engine Hook | 1 | $ 16.48 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
