Suzuki DF 225 Parts Listings - 2014
S/N 22503F-410001 to 22503F-41XXXX
S/N 22503Z-410001 to 22503Z-41XXXX

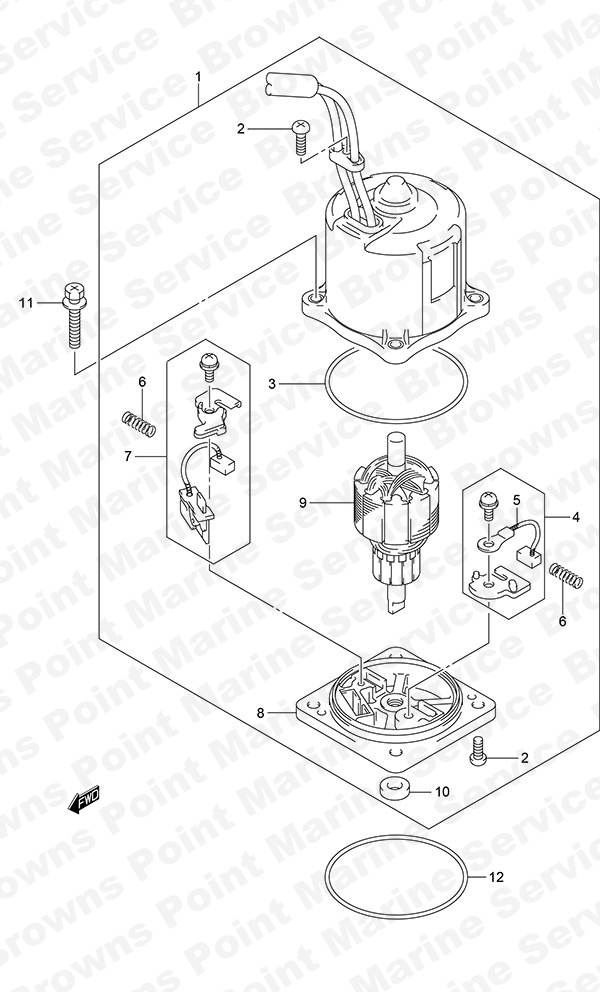

Fig. 161 - PTT Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 38100-93J05 MOTOR ASSY,PTT
SKU: 38100-93J05 Weight: 0.000000 Brand: Price: $ 847.06 |
MOTOR ASSY,PTT | 1 | $ 847.06 | ||
| 2 | 31111-94900 Yoke Screw
SKU: 31111-94900 Weight: 0.060000 Brand: Price: $ 4.39 |
Yoke Screw | 3 | $ 4.39 | ||
| 3 | 31123-94910 O-Ring
SKU: 31123-94910 Weight: 0.060000 Brand: Price: $ 14.72 |
O-Ring | 1 | $ 14.72 | ||
| 4 | 31133-90J20 Brush Assembly
SKU: 31133-90J20 Weight: 0.000000 Brand: Price: $ 9.64 |
Brush Assembly | 1 | $ 9.64 | ||
| 5 | 31133-94910 Brush
SKU: 31133-94910 Weight: 0.060000 Brand: Price: $ 12.57 |
Brush | 1 | $ 12.57 | ||
| 6 | 31135-94900 Spring
SKU: 31135-94900 Weight: 0.060000 Brand: Price: $ 5.02 |
Spring | 2 | $ 5.02 | ||
| 7 | 31136-90J20 Breaker Assembly
SKU: 31136-90J20 Weight: 0.060000 Brand: Price: $ 57.61 |
Breaker Assembly | 1 | $ 57.61 | ||
| 8 | 31173-94920 Brush Holder Assembly
SKU: 31173-94920 Weight: 1.000000 Brand: Price: $ 339.85 |
Brush Holder Assembly | 1 | $ 339.85 | ||
| 9 | 31311-93J00 Armature (NLA)
SKU: 31311-93J00 Weight: 0.850000 Brand: Price: $ 482.48 |
Armature (NLA) | 1 | $ 482.48 | ||
| 10 | 33799-97E00 Oil Seal
SKU: 33799-97E00 Weight: 0.060000 Brand: Price: $ 23.27 |
Oil Seal | 1 | $ 23.27 | ||
| 11 | 31281-92J10 Through Bolt
SKU: 31281-92J10 Weight: 0.060000 Brand: Price: $ 11.61 |
Through Bolt | 4 | $ 11.61 | ||
| 12 | 48585-95E00 O-Ring
SKU: 48585-95E00 Weight: 0.060000 Brand: Price: $ 3.96 |
O-Ring | 1 | $ 3.96 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
