Suzuki DF 140 Parts Listings - 2002 to 2011 14001Z-680234 to S/N 14002Z-11XXXX

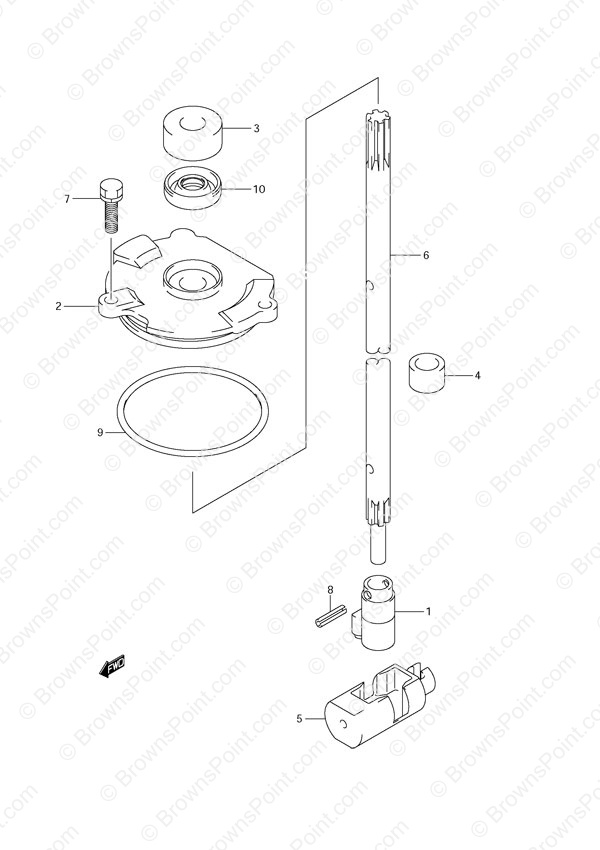

Fig. 26 - Clutch Rod Counter Rotation

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 25131-92J01 YOKE,SHIFTER 1 $ 42.10
2 25141-92J01 Shift Rod Guide Housing 1 $ 39.01
3 25222-92J01 Shift Guide Cover Seal 1 $ 2.52
4 25232-90J00 Gear Case Magnet 1 $ 6.49
5 25321-92J20 Horizontal Shift Slider (C/R) 1 $ 112.06
6 25111-92J10 Shift Rod (X) 1 $ 106.14
7 29116-93J00 Bolt (6x20) 2 $ 2.55
8 09205-04014 Pin 2 $ 1.65
9 09280-69001 O-Ring 1 $ 3.73
10 09283-10011 Oil Seal (10x22x8) 1 $ 5.87

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
