Suzuki DF 200 Parts Listings - 2014
S/N 20002F-410001 to 20002F-41XXXX
S/N 20002Z-410001 to 20002Z-41XXXX

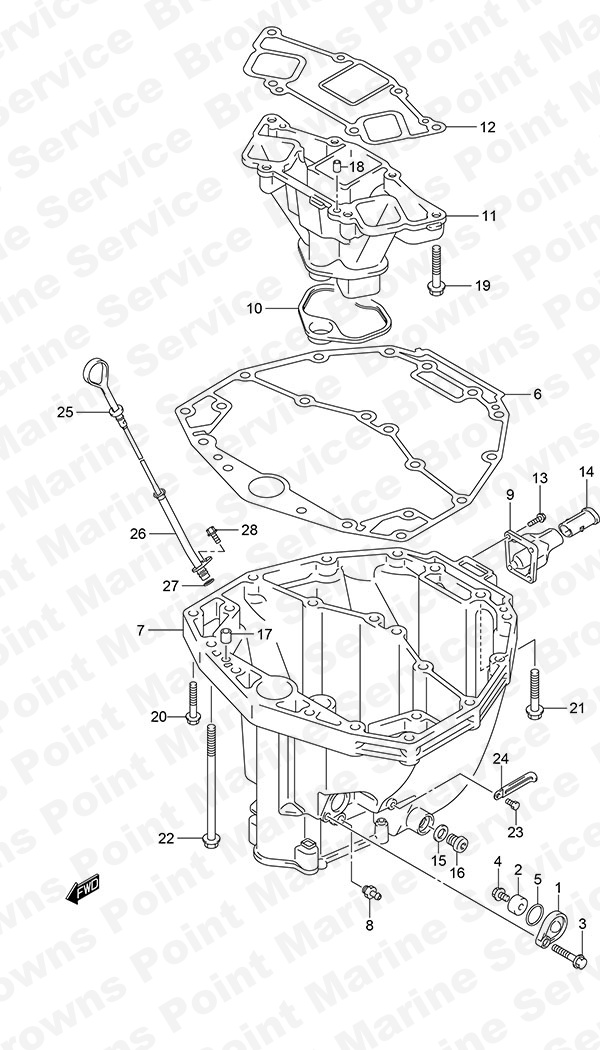

Fig. 77 - Oil Pan
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 1 | $ 16.29 | ||
| 1-2 | 11261-93J00-Y5S Replaced by 11261-93J10
SKU: 11261-93J00-Y5S Weight: 0.150000 Brand: Price: $ 15.70 |
Replaced by 11261-93J10 | 1 | $ 15.70 | White | |
| 2-1 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 2-2 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use only | |
| 3 | 29103-93J30 Bolt (8x25)
SKU: 29103-93J30 Weight: 0.060000 Brand: Price: $ 3.87 |
Bolt (8x25) | 1 | $ 3.87 | ||
| 4 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 5 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 1 | $ 2.38 | ||
| 6 | 11489-93J00 Oil Pan Gasket
SKU: 11489-93J00 Weight: 2.000000 Brand: Price: $ 59.33 |
Oil Pan Gasket | 1 | $ 59.33 | ||
| 7-1 | 11501-93J03-0EP Oil Pan
SKU: 11501-93J03-0EP Weight: 20.000000 Brand: Price: $ 794.51 |
Oil Pan | 1 | $ 794.51 | ||
| 7-2 | 11501-93J03-Y5S Oil Pan
SKU: 11501-93J03-Y5S Weight: 20.000000 Brand: Price: $ 651.03 |
Oil Pan | 1 | $ 651.03 | White | |
| 8 | 11591-93J11 Oil Pan Union
SKU: 11591-93J11 Weight: 0.060000 Brand: Price: $ 3.31 |
Oil Pan Union | 1 | $ 3.31 | ||
| 9-1 | 11541-93J00-0EP Exhaust Pipe
SKU: 11541-93J00-0EP Weight: 0.125000 Brand: Price: $ 33.10 |
Exhaust Pipe | 1 | $ 33.10 | ||
| 9-2 | 11541-93J00-Y5S Exhaust Pipe
SKU: 11541-93J00-Y5S Weight: 0.125000 Brand: Price: $ 34.49 |
Exhaust Pipe | 1 | $ 34.49 | White | |
| 10 | 14154-93J02 Exhaust Tube Seal
SKU: 14154-93J02 Weight: 0.125000 Brand: Price: $ 6.05 |
Exhaust Tube Seal | 1 | $ 6.05 | ||
| 11 | 14211-93J00 Exhaust Tube
SKU: 14211-93J00 Weight: 0.100000 Brand: Price: $ 226.03 |
Exhaust Tube | 1 | $ 226.03 | ||
| 12 | 14212-93J00 Exhaust Tube Gasket
SKU: 14212-93J00 Weight: 0.060000 Brand: Price: $ 10.12 |
Exhaust Tube Gasket | 1 | $ 10.12 | ||
| 13 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 4 | $ 2.55 | ||
| 14 | 11435-93J01 PIPE,EXHAUST RE
SKU: 11435-93J01 Weight: 0.000000 Brand: Price: $ 3.21 |
PIPE,EXHAUST RE | 1 | $ 3.21 | ||
| 15 | 09168-12012 Oil Drain Plug Gasket
SKU: 09168-12012 Weight: 0.060000 Brand: Price: $ 1.85 |
Oil Drain Plug Gasket | 1 | $ 1.85 | ||
| 16 | 09248-12009 Oil Drain Plug
SKU: 09248-12009 Weight: 0.060000 Brand: Price: $ 5.88 |
Oil Drain Plug | 1 | $ 5.88 | ||
| 17 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 18 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 19 | 01550-1050A BOLT
SKU: 01550-1050A Weight: 0.060000 Brand: Price: $ 3.04 |
BOLT | 4 | $ 3.04 | ||
| 20 | 09116-08128 Bolt (8x40)
SKU: 09116-08128 Weight: 0.125000 Brand: Price: $ 4.11 |
Bolt (8x40) | 10 | $ 4.11 | ||
| 21 | 09116-10175 Bolt (10x50)
SKU: 09116-10175 Weight: 0.125000 Brand: Price: $ 6.90 |
Bolt (10x50) | 2 | $ 6.90 | ||
| 22 | 09116-10146 Bolt (10x195)
SKU: 09116-10146 Weight: 0.200000 Brand: Price: $ 29.18 |
Bolt (10x195) | 4 | $ 29.18 | ||
| 23 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 1 | $ 2.05 | ||
| 24 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 25 | 16910-93J00 Oil Level Gauge
SKU: 16910-93J00 Weight: 0.500000 Brand: Price: $ 17.15 |
Oil Level Gauge | 1 | $ 17.15 | ||
| 26 | 16930-93J00 Oil Level Gauge Guide
SKU: 16930-93J00 Weight: 0.100000 Brand: Price: $ 18.09 |
Oil Level Gauge Guide | 1 | $ 18.09 | ||
| 27 | 09280-09008 O-Ring
SKU: 09280-09008 Weight: 0.060000 Brand: Price: $ 3.16 |
O-Ring | 1 | $ 3.16 | ||
| 28 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
