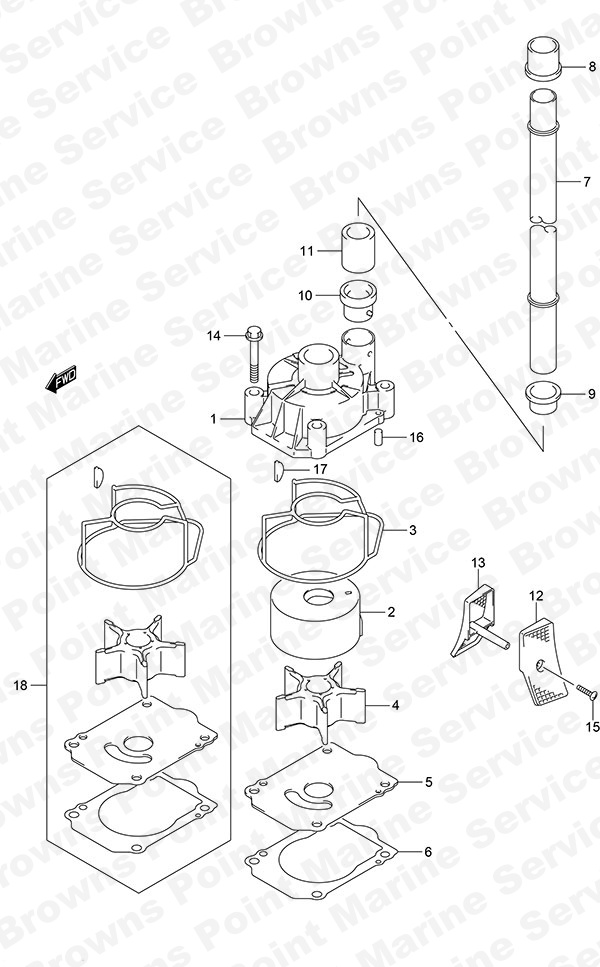

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 17410-93J01 Water Pump Case SKU: 17410-93J01 Weight: 0.420000 Brand: Price: $ 70.53 |
Water Pump Case | 1 | $ 70.53 | ||
2 | 17413-93J02 Water Pump Case Sleeve SKU: 17413-93J02 Weight: 0.250000 Brand: Price: $ 22.00 |
Water Pump Case Sleeve | 1 | $ 22.00 | ||
3 | 17416-93J01 Water Pump Seal Ring SKU: 17416-93J01 Weight: 0.060000 Brand: Price: $ 6.92 |
Water Pump Seal Ring | 1 | $ 6.92 | ||
4 | 17461-93J01 IMPELLER,WATER SKU: 17461-93J01 Weight: 0.000000 Brand: Price: $ 28.97 |
IMPELLER,WATER | 1 | $ 28.97 | ||
5 | 17471-93J02 Water Pump Plate SKU: 17471-93J02 Weight: 0.340000 Brand: Price: $ 12.63 |
Water Pump Plate | 1 | $ 12.63 | ||
6 | 17472-93J00 Water Pump Plate Gasket SKU: 17472-93J00 Weight: 0.060000 Brand: Price: $ 7.42 |
Water Pump Plate Gasket | 1 | $ 7.42 | ||
7-1 | 17561-93J03 Water Tube (X) SKU: 17561-93J03 Weight: 0.500000 Brand: Price: $ 45.19 |
Water Tube (X) | 1 | $ 45.19 | Type: X | |
7-2 | 17561-93J21 Water Tube (L) SKU: 17561-93J21 Weight: 0.500000 Brand: Price: $ 27.94 |
Water Tube (L) | 1 | $ 27.94 | Type: L | |
8 | 17562-93J01 Upper Water Tube Bushing SKU: 17562-93J01 Weight: 0.125000 Brand: Price: $ 3.11 |
Upper Water Tube Bushing | 1 | $ 3.11 | ||
9 | 17563-93J01 Lower Water Tube Bushing SKU: 17563-93J01 Weight: 0.060000 Brand: Price: $ 3.04 |
Lower Water Tube Bushing | 1 | $ 3.04 | ||
10 | 17564-93J01 Water Pump Case Bushing SKU: 17564-93J01 Weight: 0.060000 Brand: Price: $ 3.23 |
Water Pump Case Bushing | 1 | $ 3.23 | ||
11 | 17612-93J00 Water Tube Spacer SKU: 17612-93J00 Weight: 0.060000 Brand: Price: $ 5.26 |
Water Tube Spacer | 1 | $ 5.26 | ||
12-1 | 17631-93J20 Port Side Water Filter SKU: 17631-93J20 Weight: 0.060000 Brand: Price: $ 9.21 |
Port Side Water Filter | 1 | $ 9.21 | ||
12-2 | 17631-93J30 Port Side Water Filter SKU: 17631-93J30 Weight: 0.060000 Brand: Price: $ 10.47 |
Port Side Water Filter | 1 | $ 10.47 | Optional | |
13-1 | 17632-93J20 Starboard Side Water Filter SKU: 17632-93J20 Weight: 0.060000 Brand: Price: $ 9.21 |
Starboard Side Water Filter | 1 | $ 9.21 | ||
13-2 | 17632-93J30 Starboard Side Water Filter SKU: 17632-93J30 Weight: 0.060000 Brand: Price: $ 10.47 |
Starboard Side Water Filter | 1 | $ 10.47 | Optional | |
14 | 09116-08131 Bolt (8x45) SKU: 09116-08131 Weight: 0.060000 Brand: Price: $ 4.89 |
Bolt (8x45) | 4 | $ 4.89 | ||
15 | 09132-04034 Screw (4x18) SKU: 09132-04034 Weight: 0.060000 Brand: Price: $ 2.21 |
Screw (4x18) | 1 | $ 2.21 | ||
16 | 09202-06031 Knock Pin (6x12) SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 2 | $ 2.07 | ||
17 | 09420-05009 Water Pump Key SKU: 09420-05009 Weight: 0.060000 Brand: Price: $ 5.92 |
Water Pump Key | 1 | $ 5.92 | ||
18 | 17400-93J05 Water Pump Repair Kit DF200/225/250 SKU: 17400-93J05 Weight: 1.000000 Brand: Price: $ 49.63 |
Water Pump Repair Kit DF200/225/250 | 1 | $ 49.63 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
