Suzuki DF 200 Parts Listings - 2014
S/N 20002F-410001 to 20002F-41XXXX
S/N 20002Z-410001 to 20002Z-41XXXX

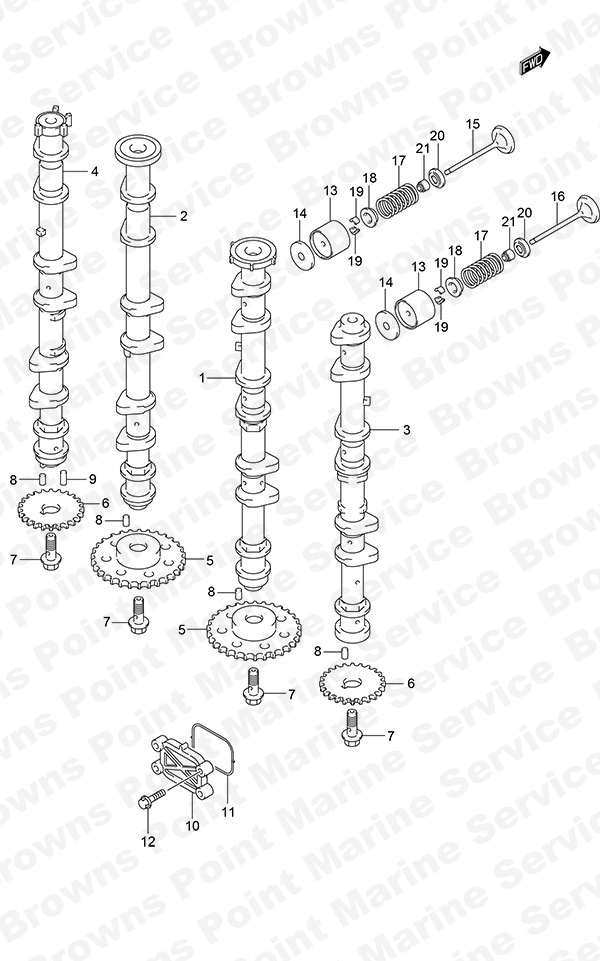

Fig. 30 - Camshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12701-93J30 Starboard Intake Camshaft
SKU: 12701-93J30 Weight: 5.000000 Brand: Price: $ 450.67 |
Starboard Intake Camshaft | 1 | $ 450.67 | ||
| 2 | 12705-93J30 Port Intake Camshaft
SKU: 12705-93J30 Weight: 5.000000 Brand: Price: $ 450.67 |
Port Intake Camshaft | 1 | $ 450.67 | ||
| 3 | 12721-93J30 Starboard Exhaust Camshaft
SKU: 12721-93J30 Weight: 5.000000 Brand: Price: $ 326.52 |
Starboard Exhaust Camshaft | 1 | $ 326.52 | ||
| 4 | 12725-93J30 Port Exhaust Camshaft
SKU: 12725-93J30 Weight: 5.000000 Brand: Price: $ 420.20 |
Port Exhaust Camshaft | 1 | $ 420.20 | ||
| 5 | 12742-93J10 Intake Camshaft Sprocket
SKU: 12742-93J10 Weight: 1.000000 Brand: Price: $ 106.20 |
Intake Camshaft Sprocket | 2 | $ 106.20 | ||
| 6 | 12748-93J00 Exhaust Camshaft Sprocket
SKU: 12748-93J00 Weight: 0.500000 Brand: Price: $ 28.55 |
Exhaust Camshaft Sprocket | 4 | $ 28.55 | ||
| 7 | 12749-93J00 Exhaust Camshaft Bolt
SKU: 12749-93J00 Weight: 0.125000 Brand: Price: $ 3.29 |
Exhaust Camshaft Bolt | 4 | $ 3.29 | ||
| 8 | 09202-05032 Pin (5x12)
SKU: 09202-05032 Weight: 0.060000 Brand: Price: $ 1.42 |
Pin (5x12) | 3 | $ 1.42 | ||
| 9 | 09261-05006 Pin (5x18)
SKU: 09261-05006 Weight: 0.100000 Brand: Price: $ 1.46 |
Pin (5x18) | 1 | $ 1.46 | ||
| 10 | 16551-93J00 Oil Control Plate (NLA)
SKU: 16551-93J00 Weight: 0.161000 Brand: Price: $ 29.04 |
Oil Control Plate (NLA) | 2 | $ 29.04 | ||
| 11 | 16559-93J00 OCV Plate Gasket
SKU: 16559-93J00 Weight: 0.060000 Brand: Price: $ 6.41 |
OCV Plate Gasket | 2 | $ 6.41 | ||
| 12 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 8 | $ 2.33 | ||
| 13 | 12891-93J00 Tappet
SKU: 12891-93J00 Weight: 0.200000 Brand: Price: $ 35.38 |
Tappet | 24 | $ 35.38 | ||
| 14-1 | 12892-93J00-218 Tappet Shim (2.175)
SKU: 12892-93J00-218 Weight: 0.060000 Brand: Price: $ 10.13 |
Tappet Shim (2.175) | 0 | $ 10.13 | ||
| 14-2 | 12892-93J00-220 Tappet Shim (2.200)
SKU: 12892-93J00-220 Weight: 0.060000 Brand: Price: $ 9.94 |
Tappet Shim (2.200) | 0 | $ 9.94 | ||
| 14-3 | 12892-93J10-223 Tappet Shim (2.225)
SKU: 12892-93J10-223 Weight: 0.060000 Brand: Price: $ 7.90 |
Tappet Shim (2.225) | 0 | $ 7.90 | ||
| 14-4 | 12892-93J10-225 SHIM,TAPPET(T:2
SKU: 12892-93J10-225 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 14-5 | 12892-93J10-228 SHIM,TAPPET(T:2
SKU: 12892-93J10-228 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 14-6 | 12892-93J00-230 Tappet Shim (2.300)
SKU: 12892-93J00-230 Weight: 0.060000 Brand: Price: $ 10.34 |
Tappet Shim (2.300) | 0 | $ 10.34 | ||
| 14-7 | 12892-93J10-233 SHIM,TAPPET(T:2
SKU: 12892-93J10-233 Weight: 0.000000 Brand: Price: $ 9.05 |
SHIM,TAPPET(T:2 | 0 | $ 9.05 | ||
| 14-8 | 12892-93J00-235 Tappet Shim (2.350)
SKU: 12892-93J00-235 Weight: 0.060000 Brand: Price: $ 9.94 |
Tappet Shim (2.350) | 0 | $ 9.94 | ||
| 14-9 | 12892-93J10-238 SHIM,TAPPET(T:2
SKU: 12892-93J10-238 Weight: 0.000000 Brand: Price: $ 8.37 |
SHIM,TAPPET(T:2 | 0 | $ 8.37 | ||
| 14-10 | 12892-93J10-240 SHIM,TAPPET(T:2
SKU: 12892-93J10-240 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 14-11 | 12892-93J10-243 SHIM,TAPPET(T:2
SKU: 12892-93J10-243 Weight: 0.000000 Brand: Price: $ 8.37 |
SHIM,TAPPET(T:2 | 0 | $ 8.37 | ||
| 14-12 | 12892-93J10-245 SHIM,TAPPET(T:2
SKU: 12892-93J10-245 Weight: 0.000000 Brand: Price: $ 8.37 |
SHIM,TAPPET(T:2 | 0 | $ 8.37 | ||
| 14-13 | 12892-93J00-248 Tappet Shim (2.475)
SKU: 12892-93J00-248 Weight: 0.060000 Brand: Price: $ 10.46 |
Tappet Shim (2.475) | 0 | $ 10.46 | ||
| 14-14 | 12892-93J10-250 SHIM,TAPPET(T:2
SKU: 12892-93J10-250 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 14-15 | 12892-93J10-253 SHIM,TAPPET(T:2
SKU: 12892-93J10-253 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 14-16 | 12892-93J00-255 Tappet Shim (2.550)
SKU: 12892-93J00-255 Weight: 0.060000 Brand: Price: $ 10.00 |
Tappet Shim (2.550) | 0 | $ 10.00 | ||
| 14-17 | 12892-93J10-258 SHIM,TAPPET(T:2
SKU: 12892-93J10-258 Weight: 0.000000 Brand: Price: $ 7.90 |
SHIM,TAPPET(T:2 | 0 | $ 7.90 | ||
| 14-18 | 12892-93J00-260 Tappet Shim (2.600)
SKU: 12892-93J00-260 Weight: 0.125000 Brand: Price: $ 9.76 |
Tappet Shim (2.600) | 0 | $ 9.76 | ||
| 14-19 | 12892-93J00-263 Tappet Shim (2.625)
SKU: 12892-93J00-263 Weight: 0.125000 Brand: Price: $ 10.34 |
Tappet Shim (2.625) | 0 | $ 10.34 | ||
| 14-20 | 12892-93J00-265 Tappet Shim (2.650)
SKU: 12892-93J00-265 Weight: 0.125000 Brand: Price: $ 10.13 |
Tappet Shim (2.650) | 0 | $ 10.13 | ||
| 14-21 | 12892-93J00-268 Tappet Shim (2.675)
SKU: 12892-93J00-268 Weight: 0.125000 Brand: Price: $ 9.94 |
Tappet Shim (2.675) | 0 | $ 9.94 | ||
| 14-22 | 12892-93J00-270 Tappet Shim (2.700)
SKU: 12892-93J00-270 Weight: 0.125000 Brand: Price: $ 10.13 |
Tappet Shim (2.700) | 0 | $ 10.13 | ||
| 14-23 | 12892-93J00-273 Tappet Shim (2.725)
SKU: 12892-93J00-273 Weight: 0.125000 Brand: Price: $ 10.86 |
Tappet Shim (2.725) | 0 | $ 10.86 | ||
| 14-24 | 12892-93J00-275 Tappet Shim (2.750)
SKU: 12892-93J00-275 Weight: 0.060000 Brand: Price: $ 10.86 |
Tappet Shim (2.750) | 0 | $ 10.86 | ||
| 14-25 | 12892-93J10-278 SHIM,TAPPET(T:2
SKU: 12892-93J10-278 Weight: 0.000000 Brand: Price: $ 8.53 |
SHIM,TAPPET(T:2 | 0 | $ 8.53 | ||
| 14-26 | 12892-93J10-280 SHIM,TAPPET(T:2
SKU: 12892-93J10-280 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 14-27 | 12892-93J10-283 SHIM,TAPPET(T:2
SKU: 12892-93J10-283 Weight: 0.000000 Brand: Price: $ 7.90 |
SHIM,TAPPET(T:2 | 0 | $ 7.90 | ||
| 14-28 | 12892-93J10-285 SHIM,TAPPET(T:2
SKU: 12892-93J10-285 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 14-29 | 12892-93J10-288 SHIM,TAPPET(T:2
SKU: 12892-93J10-288 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 14-30 | 12892-93J10-290 SHIM,TAPPET(T:2
SKU: 12892-93J10-290 Weight: 0.000000 Brand: Price: $ 10.67 |
SHIM,TAPPET(T:2 | 0 | $ 10.67 | ||
| 14-31 | 12892-93J10-293 SHIM,TAPPET(T:2
SKU: 12892-93J10-293 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 14-32 | 12892-93J10-295 SHIM,TAPPET(T:2
SKU: 12892-93J10-295 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 14-33 | 12892-93J10-298 SHIM,TAPPET(T:2
SKU: 12892-93J10-298 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 14-34 | 12892-93J10-300 SHIM,TAPPET(T:3
SKU: 12892-93J10-300 Weight: 0.000000 Brand: Price: $ 8.53 |
SHIM,TAPPET(T:3 | 0 | $ 8.53 | ||
| 15 | 12911-93J00 Intake Valve
SKU: 12911-93J00 Weight: 0.120000 Brand: Price: $ 28.95 |
Intake Valve | 12 | $ 28.95 | ||
| 16 | 12915-93J60 Exhaust Valve
SKU: 12915-93J60 Weight: 0.120000 Brand: Price: $ 38.68 |
Exhaust Valve | 12 | $ 38.68 | ||
| 17 | 12921-93J11 Valve Spring
SKU: 12921-93J11 Weight: 0.250000 Brand: Price: $ 7.13 |
Valve Spring | 24 | $ 7.13 | ||
| 18 | 12931-78G00 Valve Spring Retainer
SKU: 12931-78G00 Weight: 0.060000 Brand: Price: $ 4.25 |
Valve Spring Retainer | 24 | $ 4.25 | ||
| 19 | 12932-24400 Valve Cotter
SKU: 12932-24400 Weight: 0.060000 Brand: Price: $ 2.04 |
Valve Cotter | 48 | $ 2.04 | ||
| 20 | 12933-69G10 Valve Spring Seat
SKU: 12933-69G10 Weight: 0.060000 Brand: Price: $ 3.33 |
Valve Spring Seat | 24 | $ 3.33 | ||
| 21 | 09289-05006 Valve Stem Seal
SKU: 09289-05006 Weight: 0.060000 Brand: Price: $ 4.02 |
Valve Stem Seal | 24 | $ 4.02 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
