Suzuki DF 175 Parts Listings
S/N 17502F-410001 to 17502F-41XXXX
S/N 17502Z-410001 to 17502Z-41XXXX

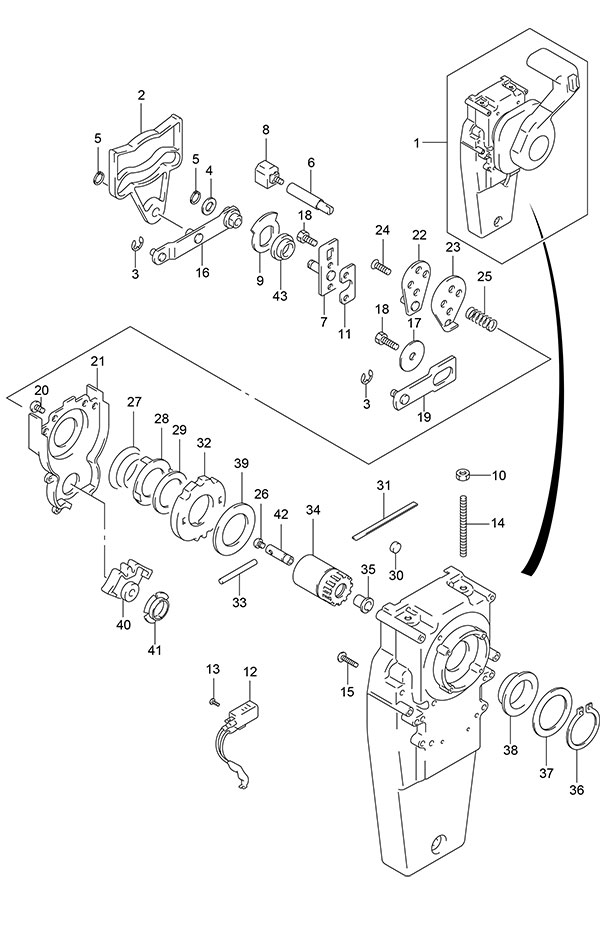

Fig. 223 - Opt: Concealed Remocon (2)

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 67200-93J34 Flush Mount Control Box 1 $ 440.25
2 67222-92E50 Dual Plate 1 $ 25.18
3 67292-94300 E Ring 3 $ 1.22
4 67288-92E10 Washer (NLA) 1 $ 1.70

Not Available

5 67291-92E00 Snap Ring (NLA) 2 $ 2.15

Not Available

6 67223-92E50 Brake Adjust (NLA) 1 $ 3.58
7 67221-92E50 Holder Assembly (NLA) 1 $ 6.07

Not Available

8 67224-92E50 Brake Shoe Assembly (NLA) 1 $ 9.54
9 67225-92E50 Brake Disk (NLA) 1 $ 3.01

Not Available

10 09140-06020 Nut (6mm) 2 $ 1.82
11 67294-92E00 Spacer (NLA) 1 $ 7.23

Not Available

12 37721-95500 Neutral Switch Assembly 1 $ 35.23
13 67296-92E11 Screw (3x15) 2 $ 3.01
14 67226-92E10 Bolt (NLA) 2 $ 4.52

Not Available

15 67296-92E20 Screw (5x25) (NLA) 2 $ 2.35

Not Available

16 67240-92E50 Throttle Arm Assembly (NLA) 1 $ 14.66

Not Available

17 67228-92E00 Washer (NLA) 1 $ 2.92

Not Available

18 67286-92E00 Bolt (6x18) (NLA) 3 $ 1.67

Not Available

19 67230-92E00 Shift Arm Assembly (NLA) 1 $ 9.39

Not Available

20 09125-05042 Screw (5x10) 11 $ 1.99
21 67234-92E00 Gear Case (NLA) 1 $ 17.67

Not Available

22 67245-92E00 Free Throttle Drum (NLA) 1 $ 13.51

Not Available

23 67227-92E00 Stopper (NLA) 1 $ 7.23

Not Available

24 67296-88D10 Screw (5x16) 2 $ 2.44
25 67225-92E00 Spring (NLA) 1 $ 1.67

Not Available

26 09125-04004 Screw (4x6) 1 $ 1.47
27 67233-92E00 Spring (NLA) 1 $ 10.01

Not Available

28 67235-92E00 Shift Lock Plate (NLA) 1 $ 6.28

Not Available

29 67239-92E10 Shift Pin Plate 1 $ 8.95
30 67236-92E00 Roller (NLA) 1 $ 2.53

Not Available

31 67237-92E01 Spring (NLA) 5 $ 2.53

Not Available

32 67238-92E50 Drive Gear (NLA) 1 $ 10.38

Not Available

33 67239-92E00 Pin 1 $ 16.98

Not Available

34 67246-92E50 Drive Shaft (NLA) 1 $ 10.53

Not Available

35 67252-92E00 Bushing (NLA) 1 $ 4.50

Not Available

36 67291-92E10 Snap Ring (NLA) 1 $ 6.10

Not Available

37 67253-92E10 Washer 1 $ 3.95
38 67252-92E10 Bushing (NLA) 1 $ 3.93

Not Available

39 67253-95600 Washer (NLA) 1 $ 2.64

Not Available

40 67231-92E00 Shift Gear 1 $ 15.25

Not Available

41 67232-95600 Bushing 1 $ 6.50
42 67241-92E50 Free Accel Rod (NLA) 1 $ 4.79

Not Available

43 67232-92E50 Bushing (NLA) 1 $ 0.93

Not Available


Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
