Suzuki DF 175G Parts Listings
S/N 17502F-410001 to 17502F-41XXXX
S/N 17502Z-410001 to 17502Z-41XXXX

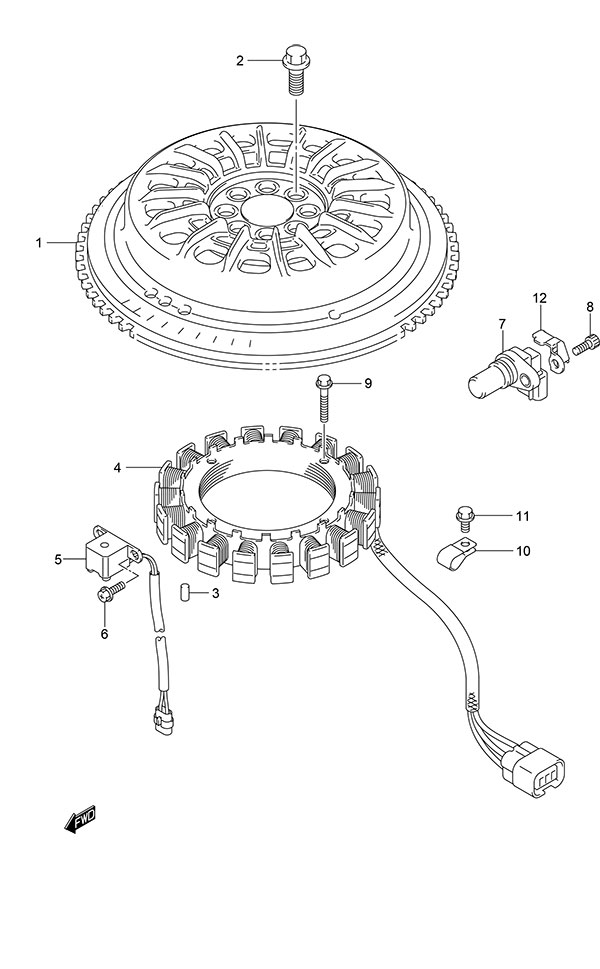

Fig. 94 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-96J20 Flywheel
SKU: 32102-96J20 Weight: 5.000000 Brand: Price: $ 912.57 |
Flywheel | 1 | $ 912.57 | ||
| 2 | 09103-12071 Flywheel Bolt (12x26)
SKU: 09103-12071 Weight: 0.100000 Brand: Price: $ 3.42 |
Flywheel Bolt (12x26) | 8 | $ 3.42 | ||
| 3 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 1 | $ 2.07 | ||
| 4 | 32120-96J00 Battery Charge Coil
SKU: 32120-96J00 Weight: 5.500000 Brand: Price: $ 631.28 |
Battery Charge Coil | 1 | $ 631.28 | ||
| 5 | 32160-88L10 CKP/Ignition Timimg Coil
SKU: 32160-88L10 Weight: 0.125000 Brand: Price: $ 129.37 |
CKP/Ignition Timimg Coil | 1 | $ 129.37 | ||
| 6 | 09106-05030 Bolt (5x10)
SKU: 09106-05030 Weight: 0.060000 Brand: Price: $ 2.62 |
Bolt (5x10) | 2 | $ 2.62 | ||
| 7 | 33220-64L10 Cam Position Sensor
SKU: 33220-64L10 Weight: 0.250000 Brand: Price: $ 109.52 |
Cam Position Sensor | 2 | $ 109.52 | ||
| 8 | 07130-06167 BOLT
SKU: 07130-06167 Weight: 0.060000 Brand: Price: $ 3.21 |
BOLT | 2 | $ 3.21 | ||
| 9 | 09103-06231 Bolt (6x35)
SKU: 09103-06231 Weight: 0.060000 Brand: Price: $ 2.81 |
Bolt (6x35) | 4 | $ 2.81 | ||
| 10 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 1 | $ 5.28 | ||
| 11 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 12 | 11185-96J00 Sensor Cover
SKU: 11185-96J00 Weight: 0.200000 Brand: Price: $ 10.22 |
Sensor Cover | 2 | $ 10.22 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
