Suzuki DF 150G Parts Listings
S/N 15002F-410001 to 15002F-41XXXX
S/N 15002Z-410001 to 15002Z-41XXXX

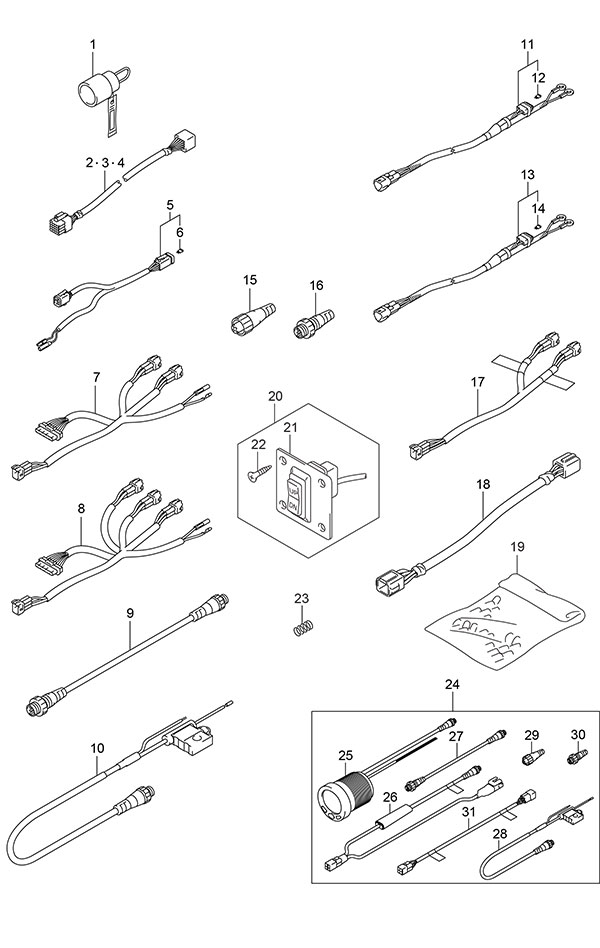

Fig. 193 - Opt: Meter (3) (Model: TG/ZG)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 36612-98J20 Counter Rotation Selector - White
SKU: 36612-98J20 Weight: 0.125000 Brand: Price: $ 15.97 |
Counter Rotation Selector - White | 1 | $ 15.97 | ||
| 2 | 36620-98J31 Replaced by 36620-98J33
SKU: 36620-98J31 Weight: 3.000000 Brand: Price: $ 230.91 |
Replaced by 36620-98J33 | 1 | $ 230.91 | ||
| 3 | 36620-98J43 31 ft Main Wiring Harness
SKU: 36620-98J43 Weight: 2.720000 Brand: Price: $ 348.29 |
31 ft Main Wiring Harness | 1 | $ 348.29 | ||
| 5 | 36661-98J10 Single Interface Adapter
SKU: 36661-98J10 Weight: 0.250000 Brand: Price: $ 77.41 |
Single Interface Adapter | 1 | $ 77.41 | ||
| 6 | 09481-05501 5 Amp Fuse
SKU: 09481-05501 Weight: 0.062500 Brand: Price: $ 2.02 |
5 Amp Fuse | 1 | $ 2.02 | ||
| 7 | 36661-98J20 Dual Interface Adapter (NLA)
SKU: 36661-98J20 Weight: 1.000000 Brand: Price: $ 45.85 |
Dual Interface Adapter (NLA) | 1 | $ 45.85 | ||
| 8 | 36661-98J30 Triple Interface Adapter (NLA)
SKU: 36661-98J30 Weight: 1.000000 Brand: Price: $ 56.95 |
Triple Interface Adapter (NLA) | 1 | $ 56.95 | ||
| 9 | 990C0-88108 25' Extension cable
SKU: 990C0-88108 Weight: 1.100000 Brand: Price: $ 56.76 |
25' Extension cable | 1 | $ 56.76 | ||
| 10 | 990C0-88112 SMIS Power Cable
SKU: 990C0-88112 Weight: 0.240000 Brand: Price: $ 42.55 |
SMIS Power Cable | 1 | $ 42.55 | ||
| 11 | 36663-98J00 Active Hub Power Harness Assy (NLA)
SKU: 36663-98J00 Weight: 1.000000 Brand: Price: $ 58.00 |
Active Hub Power Harness Assy (NLA) | 1 | $ 58.00 | ||
| 12 | 09481-05501 5 Amp Fuse
SKU: 09481-05501 Weight: 0.062500 Brand: Price: $ 2.02 |
5 Amp Fuse | 1 | $ 2.02 | ||
| 13 | 36663-98J10 Active Hub Power Harness Assy
SKU: 36663-98J10 Weight: 1.000000 Brand: Price: $ 113.62 |
Active Hub Power Harness Assy | 1 | $ 113.62 | ||
| 14 | 09481-05501 5 Amp Fuse
SKU: 09481-05501 Weight: 0.062500 Brand: Price: $ 2.02 |
5 Amp Fuse | 1 | $ 2.02 | ||
| 15 | 990C0-88113 Terminating Resistor 120 ohm Female
SKU: 990C0-88113 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Female | 1 | $ 8.03 | ||
| 16 | 990C0-88114 Terminating Resistor 120 ohm Male
SKU: 990C0-88114 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Male | 1 | $ 8.03 | ||
| 17 | 36667-87L00 Multi Gauge Adapter
SKU: 36667-87L00 Weight: 1.000000 Brand: Price: $ 226.00 |
Multi Gauge Adapter | 1 | $ 226.00 | ||
| 18 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 1 | $ 82.25 | ||
| 19 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 | ||
| 20 | 37860-87L00 Trolling Mode Control Switch Assembly
SKU: 37860-87L00 Weight: 0.380000 Brand: Price: $ 91.31 |
Trolling Mode Control Switch Assembly | 1 | $ 91.31 | ||
| 21 | 37862-87L00 Trolling Switch Panel
SKU: 37862-87L00 Weight: 0.250000 Brand: Price: $ 48.50 |
Trolling Switch Panel | 1 | $ 48.50 | ||
| 22 | 09131-05004 Screw (5x16)
SKU: 09131-05004 Weight: 0.060000 Brand: Price: $ 2.29 |
Screw (5x16) | 4 | $ 2.29 | ||
| 23 | 67237-98J20 Detent Spring (NLA)
SKU: 67237-98J20 Weight: 0.100000 Brand: Price: $ 6.28 |
Detent Spring (NLA) | 1 | $ 6.28 | ||
| 27 | 990C0-88108 25' Extension cable
SKU: 990C0-88108 Weight: 1.100000 Brand: Price: $ 56.76 |
25' Extension cable | 1 | $ 56.76 | ||
| 28 | 990C0-88112 SMIS Power Cable
SKU: 990C0-88112 Weight: 0.240000 Brand: Price: $ 42.55 |
SMIS Power Cable | 1 | $ 42.55 | ||
| 29 | 990C0-88113 Terminating Resistor 120 ohm Female
SKU: 990C0-88113 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Female | 1 | $ 8.03 | ||
| 30 | 990C0-88114 Terminating Resistor 120 ohm Male
SKU: 990C0-88114 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Male | 1 | $ 8.03 | ||
| 31 | 990C0-88136 SMIS Adapter to SDS
SKU: 990C0-88136 Weight: 0.250000 Brand: Price: $ 60.84 |
SMIS Adapter to SDS | 1 | $ 60.84 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
