Suzuki DF 150 Parts Listings
S/N 15002F-410001 to 15002F-41XXXX
S/N 15002Z-410001 to 15002Z-41XXXX

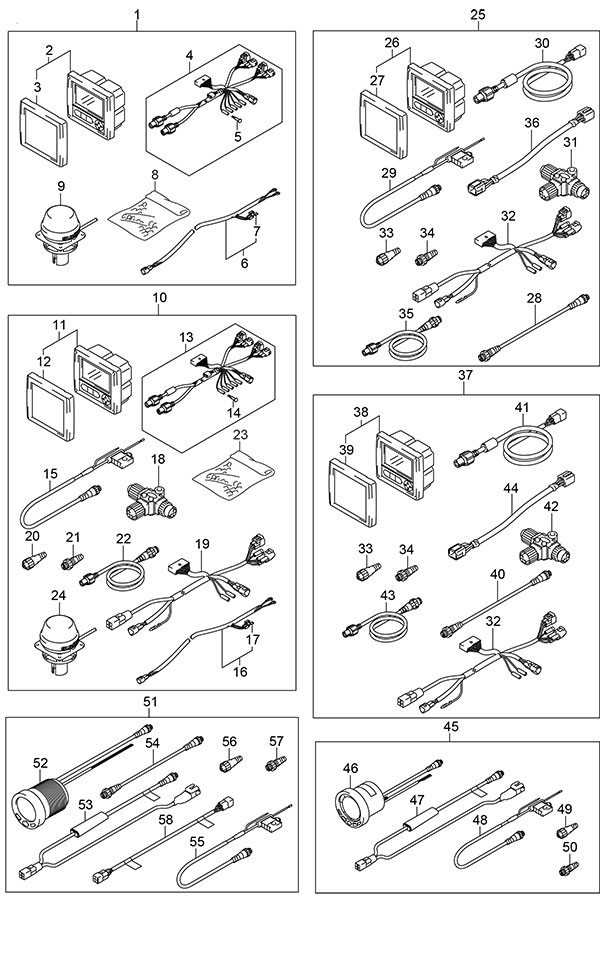

Fig. 185 - Opt: Meter (2)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34011-87L00 Single Gauge Kit
SKU: 34011-87L00 Weight: 5.000000 Brand: Price: $ 0.00 |
Single Gauge Kit | 1 | $ 0.00 | ||
| 3 | 34211-87L00 Front Cover (NLA)
SKU: 34211-87L00 Weight: 0.500000 Brand: Price: $ 31.04 |
Front Cover (NLA) | 1 | $ 31.04 | ||
| 4 | 36661-87L00 Gauge Adapter
SKU: 36661-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
Gauge Adapter | 1 | $ 0.00 | ||
| 5 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 5 | $ 1.31 | ||
| 6 | 36663-98J10 Active Hub Power Harness Assy
SKU: 36663-98J10 Weight: 1.000000 Brand: Price: $ 113.62 |
Active Hub Power Harness Assy | 1 | $ 113.62 | ||
| 7 | 09481-05501 5 Amp Fuse
SKU: 09481-05501 Weight: 0.062500 Brand: Price: $ 2.02 |
5 Amp Fuse | 1 | $ 2.02 | ||
| 8 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 | ||
| 9 | 39950-87L00 GPS Receiver Module Assembly
SKU: 39950-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
GPS Receiver Module Assembly | 1 | $ 0.00 | ||
| 10 | 34011-87L10 Dual Gauge Kit
SKU: 34011-87L10 Weight: 5.000000 Brand: Price: $ 0.00 |
Dual Gauge Kit | 1 | $ 0.00 | ||
| 12 | 34211-87L00 Front Cover (NLA)
SKU: 34211-87L00 Weight: 0.500000 Brand: Price: $ 31.04 |
Front Cover (NLA) | 2 | $ 31.04 | ||
| 13 | 36661-87L00 Gauge Adapter
SKU: 36661-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
Gauge Adapter | 2 | $ 0.00 | ||
| 14 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 10 | $ 1.31 | ||
| 15 | 990C0-88112 SMIS Power Cable
SKU: 990C0-88112 Weight: 0.240000 Brand: Price: $ 42.55 |
SMIS Power Cable | 1 | $ 42.55 | ||
| 16 | 36663-98J10 Active Hub Power Harness Assy
SKU: 36663-98J10 Weight: 1.000000 Brand: Price: $ 113.62 |
Active Hub Power Harness Assy | 1 | $ 113.62 | ||
| 17 | 09481-05501 5 Amp Fuse
SKU: 09481-05501 Weight: 0.062500 Brand: Price: $ 2.02 |
5 Amp Fuse | 1 | $ 2.02 | ||
| 18 | 990C0-88110 T-Connector
SKU: 990C0-88110 Weight: 0.060000 Brand: Price: $ 18.18 |
T-Connector | 3 | $ 18.18 | ||
| 19 | 36665-87L10 Multi Engine Adapter - Mechanical
SKU: 36665-87L10 Weight: 0.500000 Brand: Price: $ 108.35 |
Multi Engine Adapter - Mechanical | 1 | $ 108.35 | ||
| 20 | 990C0-88113 Terminating Resistor 120 ohm Female
SKU: 990C0-88113 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Female | 1 | $ 8.03 | ||
| 21 | 990C0-88114 Terminating Resistor 120 ohm Male
SKU: 990C0-88114 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Male | 1 | $ 8.03 | ||
| 22 | 36666-87L00 Network Wire
SKU: 36666-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
Network Wire | 2 | $ 0.00 | ||
| 23 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 | ||
| 24 | 39950-87L00 GPS Receiver Module Assembly
SKU: 39950-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
GPS Receiver Module Assembly | 1 | $ 0.00 | ||
| 25 | 34011-87L40 Single Gauge & Dual Station Kit
SKU: 34011-87L40 Weight: 5.000000 Brand: Price: $ 0.00 |
Single Gauge & Dual Station Kit | 1 | $ 0.00 | ||
| 27 | 34211-87L00 Front Cover (NLA)
SKU: 34211-87L00 Weight: 0.500000 Brand: Price: $ 31.04 |
Front Cover (NLA) | 1 | $ 31.04 | ||
| 28 | 990C0-88108 25' Extension cable
SKU: 990C0-88108 Weight: 1.100000 Brand: Price: $ 56.76 |
25' Extension cable | 1 | $ 56.76 | ||
| 29 | 990C0-88112 SMIS Power Cable
SKU: 990C0-88112 Weight: 0.240000 Brand: Price: $ 42.55 |
SMIS Power Cable | 1 | $ 42.55 | ||
| 30 | 36664-87L00 Dual Station Gauge Adapter
SKU: 36664-87L00 Weight: 0.100000 Brand: Price: $ 0.00 |
Dual Station Gauge Adapter | 1 | $ 0.00 | ||
| 31 | 990C0-88110 T-Connector
SKU: 990C0-88110 Weight: 0.060000 Brand: Price: $ 18.18 |
T-Connector | 3 | $ 18.18 | ||
| 32 | 36665-87L10 Multi Engine Adapter - Mechanical
SKU: 36665-87L10 Weight: 0.500000 Brand: Price: $ 108.35 |
Multi Engine Adapter - Mechanical | 1 | $ 108.35 | ||
| 33 | 990C0-88113 Terminating Resistor 120 ohm Female
SKU: 990C0-88113 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Female | 1 | $ 8.03 | ||
| 34 | 990C0-88114 Terminating Resistor 120 ohm Male
SKU: 990C0-88114 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Male | 1 | $ 8.03 | ||
| 35 | 36666-87L00 Network Wire
SKU: 36666-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
Network Wire | 2 | $ 0.00 | ||
| 36 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 1 | $ 82.25 | ||
| 37 | 34011-87L50 Dual Gauge & Dual Station Kit
SKU: 34011-87L50 Weight: 5.000000 Brand: Price: $ 0.00 |
Dual Gauge & Dual Station Kit | 1 | $ 0.00 | ||
| 39 | 34211-87L00 Front Cover (NLA)
SKU: 34211-87L00 Weight: 0.500000 Brand: Price: $ 31.04 |
Front Cover (NLA) | 2 | $ 31.04 | ||
| 40 | 990C0-88108 25' Extension cable
SKU: 990C0-88108 Weight: 1.100000 Brand: Price: $ 56.76 |
25' Extension cable | 1 | $ 56.76 | ||
| 41 | 36664-87L00 Dual Station Gauge Adapter
SKU: 36664-87L00 Weight: 0.100000 Brand: Price: $ 0.00 |
Dual Station Gauge Adapter | 2 | $ 0.00 | ||
| 42 | 990C0-88110 T-Connector
SKU: 990C0-88110 Weight: 0.060000 Brand: Price: $ 18.18 |
T-Connector | 2 | $ 18.18 | ||
| 43 | 36666-87L00 Network Wire
SKU: 36666-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
Network Wire | 2 | $ 0.00 | ||
| 44 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 2 | $ 82.25 | ||
| 48 | 990C0-88112 SMIS Power Cable
SKU: 990C0-88112 Weight: 0.240000 Brand: Price: $ 42.55 |
SMIS Power Cable | 1 | $ 42.55 | ||
| 49 | 990C0-88113 Terminating Resistor 120 ohm Female
SKU: 990C0-88113 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Female | 1 | $ 8.03 | ||
| 50 | 990C0-88114 Terminating Resistor 120 ohm Male
SKU: 990C0-88114 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Male | 1 | $ 8.03 | ||
| 54 | 990C0-88108 25' Extension cable
SKU: 990C0-88108 Weight: 1.100000 Brand: Price: $ 56.76 |
25' Extension cable | 1 | $ 56.76 | ||
| 55 | 990C0-88112 SMIS Power Cable
SKU: 990C0-88112 Weight: 0.240000 Brand: Price: $ 42.55 |
SMIS Power Cable | 1 | $ 42.55 | ||
| 56 | 990C0-88113 Terminating Resistor 120 ohm Female
SKU: 990C0-88113 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Female | 1 | $ 8.03 | ||
| 57 | 990C0-88114 Terminating Resistor 120 ohm Male
SKU: 990C0-88114 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Male | 1 | $ 8.03 | ||
| 58 | 990C0-88136 SMIS Adapter to SDS
SKU: 990C0-88136 Weight: 0.250000 Brand: Price: $ 60.84 |
SMIS Adapter to SDS | 1 | $ 60.84 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
