Suzuki DF 150Z Parts Listings
S/N 15002Z-410001 to 15002Z-41XXXX

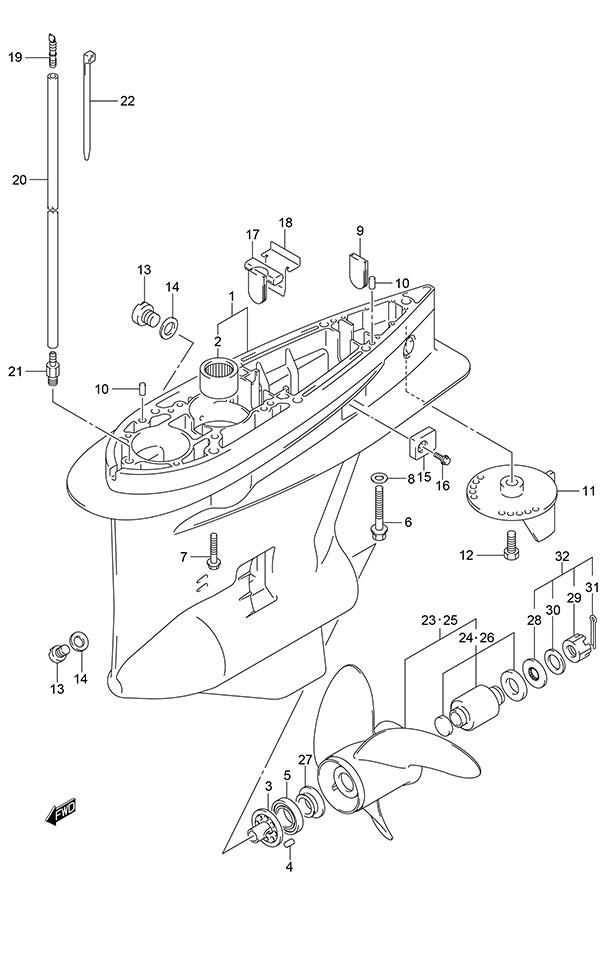

Fig. 151 - Gear Case Counter Rotation

Ref# Part Number Description Req Qty* Price Each Order Remarks
1-1 55110-93J30-0EP Gear Case Housing (C/R) 1 $ 2,261.77
1-2 55110-93J30-Y5S Gear Case Housing (C/R) 1 $ 2,154.06
White
2 09263-32017 Pinion Bearing 1 $ 171.49
3 56145-93J00 Shift Cam Housing 1 $ 59.78
4 04221-08129 PIN 8X12 1 $ 1.99
5 09265-50002 Bearing (50x90x21.75) 1 $ 95.03
6 09100-12052 Bolt (12x70) 1 $ 11.80
7 09116-10150 Bolt (10x55) 6 $ 15.95
8 09160-12066 Washer (12.5x22x2.5) 1 $ 1.80
9 17566-87D12 GROMMET 1 $ 6.66
10 09202-08006 Knock Pin (8x12) 2 $ 2.77
11-1 55125-98J00-0EP Trim Tab 1 $ 104.41
11-2 55125-98J00-Y5S Trim Tab 1 $ 133.40
White
12 09116-08137 Bolt (8x22) 1 $ 7.44
13 55128-93J10 Drain Plug 3 $ 5.92
14 09168-10038 GASKET,DRAIN PL 3 $ 2.23
15 55321-93J01 Protection Anode 2 $ 15.13
16 09116-06236 Bolt (6x16) 2 $ 1.78
17 55332-87D12 Exhaust Seal Rubber 1 $ 6.66
18 55333-87D10 Exhaust Seal Plate 1 $ 10.93
19 55127-87D00 Hose Union 1 $ 3.83
20 09355-40805-00B Hose (4x8x2000) 1 $ 29.37
L:2000->1700
21 09362-09008 Nipple 1 $ 2.92
22 09407-10404 Clamp (L:100) 2 $ 2.52
23-1 990C0-0083L-17P S/S Propeller 3x15-1/2x17 (C/R) 1 $ 728.84

Not Available

23-2 990C0-0083L-19P S/S Propeller 3x15-1/4x19 (C/R) 1 $ 612.16
23-3 990C0-0083L-21P S/S Propeller 3x15x21 (C/R) 1 $ 612.16
23-4 990C0-0083L-23P S/S Propeller 3x14-3/4x23 (C/R) 1 $ 750.70
23-5 990C0-0083L-25P S/S Propeller 3x14-1/2x25 (C/R) 1 $ 612.16

Not Available

23-6 990C0-0083L-27P S/S Propeller 3x14-1/2x27 (C/R) 1 $ 612.16

Not Available

24 58105-93J10 Propeller Bushing Set 1 $ 176.22
27 57632-93L01 Propeller Bushing Stopper 1 $ 59.32
28 57633-87D30 Propeller Nut Spacer 1 $ 20.99
29 09141-18005 Nut (18mm) 1 $ 10.32
30 09160-18028 Washer (18.5x31x1.0) 1 $ 3.69
31 09204-03003 Prop Nut Cotter Pin 1 $ 2.44
32 57630-92E00 Propeller Hardware Kit DF150/175 DFV6 DTV6 1 $ 34.42
Optional
33 25700-93J00 Gear Case Seal Kit DF150 / DF175 / DF200 / DF225 / DF250 1 $ 32.39
Opt: Not Shown

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
