Suzuki DF 150G Parts Listings
S/N 15002F-410001 to 15002F-41XXXX
S/N 15002Z-410001 to 15002Z-41XXXX

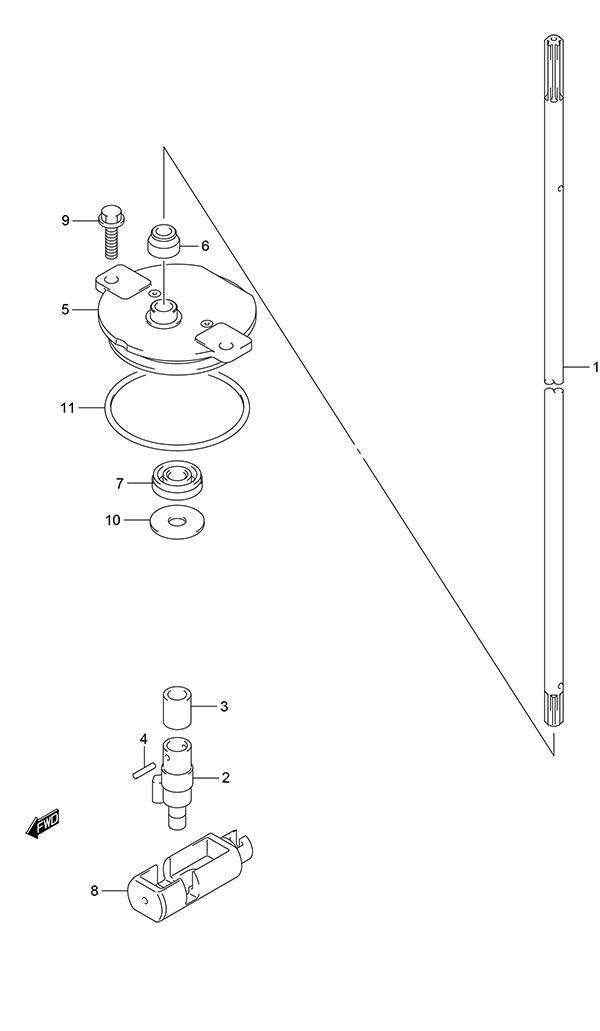

Fig. 73 - Clutch Rod (Model: TG/ZG)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 25111-96J10 Shift Rod (L)
SKU: 25111-96J10 Weight: 1.000000 Brand: Price: $ 91.16 |
Shift Rod (L) | 1 | $ 91.16 | Type: L | |
| 1-2 | 25111-96J20 Shift Rod (X)
SKU: 25111-96J20 Weight: 1.000000 Brand: Price: $ 91.16 |
Shift Rod (X) | 1 | $ 91.16 | Type: X | |
| 2 | 25131-96J00 Shifter Yoke
SKU: 25131-96J00 Weight: 0.200000 Brand: Price: $ 107.92 |
Shifter Yoke | 1 | $ 107.92 | ||
| 3 | 25232-96302 Gear Case Magnet
SKU: 25232-96302 Weight: 0.060000 Brand: Price: $ 5.83 |
Gear Case Magnet | 1 | $ 5.83 | ||
| 4 | 09205-02006 Spring Pin (2x12)
SKU: 09205-02006 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (2x12) | 2 | $ 1.07 | ||
| 5 | 25141-93J00 Shift Rod Guide Housing
SKU: 25141-93J00 Weight: 0.120000 Brand: Price: $ 20.53 |
Shift Rod Guide Housing | 1 | $ 20.53 | ||
| 6 | 25223-96J00 Seal, Shift Rod Dust
SKU: 25223-96J00 Weight: 0.060000 Brand: Price: $ 5.56 |
Seal, Shift Rod Dust | 1 | $ 5.56 | ||
| 7 | 09282-08005 Shift Rod Guide Housing Oil Seal
SKU: 09282-08005 Weight: 0.060000 Brand: Price: $ 7.09 |
Shift Rod Guide Housing Oil Seal | 1 | $ 7.09 | ||
| 8 | 25321-93L00 Horizontal Shift Slider
SKU: 25321-93L00 Weight: 0.250000 Brand: Price: $ 100.79 |
Horizontal Shift Slider | 1 | $ 100.79 | ||
| 9 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 2 | $ 2.55 | ||
| 10 | 09160-08151 Shift Rod Washer
SKU: 09160-08151 Weight: 0.060000 Brand: Price: $ 2.00 |
Shift Rod Washer | 1 | $ 2.00 | ||
| 11 | 09280-60007 O-Ring
SKU: 09280-60007 Weight: 0.060000 Brand: Price: $ 5.59 |
O-Ring | 1 | $ 5.59 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
