Suzuki DF 150G Parts Listings
S/N 15002F-410001 to 15002F-41XXXX
S/N 15002Z-410001 to 15002Z-41XXXX

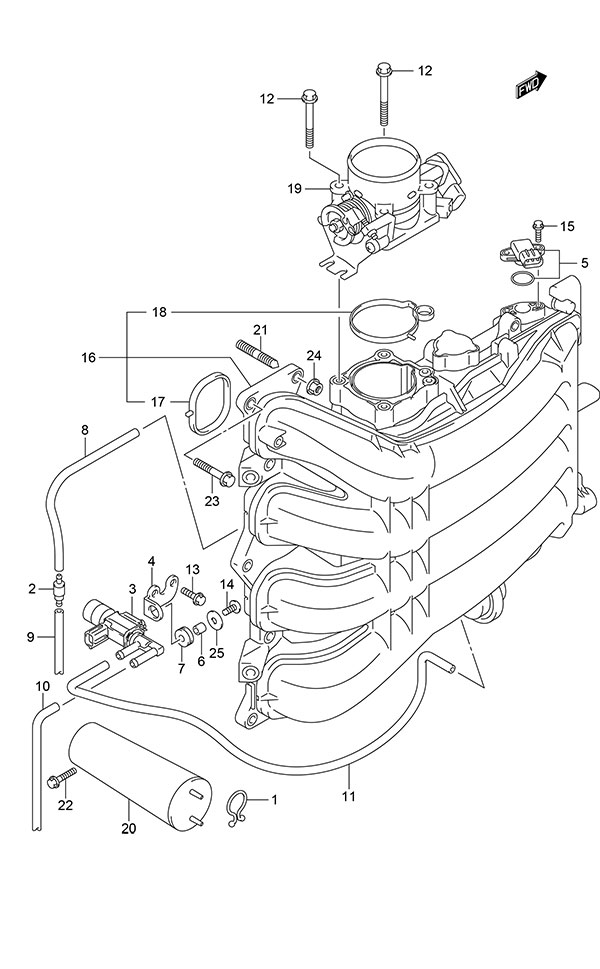

Fig. 22 - Intake Manifold/Throttle Body (Model: TG/ZG)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.25 |
Clamp | 1 | $ 2.25 | ||
| 2 | 13162-93J00 Check Valve (NLA)
SKU: 13162-93J00 Weight: 0.060000 Brand: Price: $ 18.17 |
Check Valve (NLA) | 1 | $ 18.17 | ||
| 3 | 18117-93J00 Vacuum Switching Valve
SKU: 18117-93J00 Weight: 0.500000 Brand: Price: $ 77.17 |
Vacuum Switching Valve | 1 | $ 77.17 | ||
| 4 | 18119-96J00 Vacuum Switching Valve Bracket (NLA)
SKU: 18119-96J00 Weight: 0.500000 Brand: Price: $ 5.47 |
Vacuum Switching Valve Bracket (NLA) | 1 | $ 5.47 | ||
| 5 | 18590-68H00 MAP Sensor
SKU: 18590-68H00 Weight: 0.120000 Brand: Price: $ 307.90 |
MAP Sensor | 1 | $ 307.90 | ||
| 6 | 09180-05047 Spacer
SKU: 09180-05047 Weight: 0.100000 Brand: Price: $ 2.23 |
Spacer | 1 | $ 2.23 | ||
| 7 | 09320-07015 Cushion (NLA)
SKU: 09320-07015 Weight: 0.100000 Brand: Price: $ 3.18 |
Cushion (NLA) | 1 | $ 3.18 | ||
| 8 | 09355-35006-601 Hose (3.5x7.5x601)
SKU: 09355-35006-601 Weight: 1.000000 Brand: Price: $ 8.35 |
Hose (3.5x7.5x601) | 1 | $ 8.35 | L:601->250 | |
| 9 | 09355-35006-601 Hose (3.5x7.5x601)
SKU: 09355-35006-601 Weight: 1.000000 Brand: Price: $ 8.35 |
Hose (3.5x7.5x601) | 1 | $ 8.35 | L:601->250 | |
| 10 | 09355-35006-601 Hose (3.5x7.5x601)
SKU: 09355-35006-601 Weight: 1.000000 Brand: Price: $ 8.35 |
Hose (3.5x7.5x601) | 1 | $ 8.35 | L:601->470 | |
| 11 | 09355-35006-601 Hose (3.5x7.5x601)
SKU: 09355-35006-601 Weight: 1.000000 Brand: Price: $ 8.35 |
Hose (3.5x7.5x601) | 1 | $ 8.35 | L:601->600 | |
| 12 | 01550-08607 BOLT
SKU: 01550-08607 Weight: 0.060000 Brand: Price: $ 4.02 |
BOLT | 4 | $ 4.02 | ||
| 13 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 2 | $ 2.45 | ||
| 14 | 02112-05127 SCREW
SKU: 02112-05127 Weight: 0.060000 Brand: Price: $ 2.08 |
SCREW | 1 | $ 2.08 | ||
| 15 | 02162-05207 SCREW
SKU: 02162-05207 Weight: 0.060000 Brand: Price: $ 2.05 |
SCREW | 2 | $ 2.05 | ||
| 16 | 13110-96J10 Intake Manifold
SKU: 13110-96J10 Weight: 26.000000 Brand: Price: $ 645.99 |
Intake Manifold | 1 | $ 645.99 | ||
| 17 | 13119-96J00 Intake Manifold Gasket
SKU: 13119-96J00 Weight: 0.060000 Brand: Price: $ 11.91 |
Intake Manifold Gasket | 4 | $ 11.91 | ||
| 18 | 13125-96J00 Throttle Body Gasket
SKU: 13125-96J00 Weight: 0.100000 Brand: Price: $ 19.37 |
Throttle Body Gasket | 1 | $ 19.37 | ||
| 19 | 13300-96J11 BODY ASSY,THROT
SKU: 13300-96J11 Weight: 0.000000 Brand: Price: $ 693.83 |
BODY ASSY,THROT | 1 | $ 693.83 | ||
| 20 | 13730-96J01 Vacuum Chamber
SKU: 13730-96J01 Weight: 0.500000 Brand: Price: $ 71.89 |
Vacuum Chamber | 1 | $ 71.89 | ||
| 21 | 01421-08257 BOLT, STUD
SKU: 01421-08257 Weight: 0.100000 Brand: Price: $ 4.52 |
BOLT, STUD | 2 | $ 4.52 | ||
| 22 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 2 | $ 2.45 | ||
| 23 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.78 |
BOLT | 8 | $ 3.78 | ||
| 24 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.38 |
Nut | 2 | $ 2.38 | ||
| 25 | 09160-05045 Washer
SKU: 09160-05045 Weight: 0.060000 Brand: Price: $ 2.03 |
Washer | 1 | $ 2.03 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
