Suzuki DF 150 Parts Listings
S/N 15002F-410001 to 15002F-41XXXX
S/N 15002Z-410001 to 15002Z-41XXXX

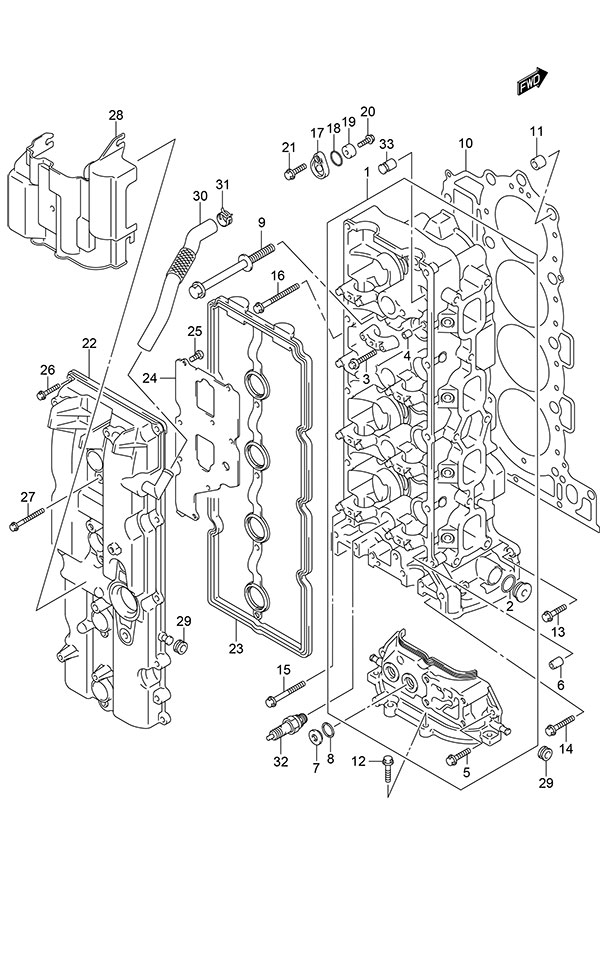

Fig. 1 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11101-96J02 Cylinder Head Assembly
SKU: 11101-96J02 Weight: 34.000000 Brand: Price: $ 2,383.87 |
Cylinder Head Assembly | 1 | $ 2,383.87 | ||
| 2 | 11216-90J00 Oil Gallery Plug Gasket
SKU: 11216-90J00 Weight: 0.060000 Brand: Price: $ 3.81 |
Oil Gallery Plug Gasket | 5 | $ 3.81 | ||
| 3 | 09103-06266 Bolt (6x40)
SKU: 09103-06266 Weight: 0.250000 Brand: Price: $ 2.21 |
Bolt (6x40) | 20 | $ 2.21 | ||
| 4 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 18 | $ 1.78 | ||
| 5 | 01547-06207 BOLT 6 X 20
SKU: 01547-06207 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6 X 20 | 2 | $ 2.04 | ||
| 6 | 11112-84400 Oil Venturi Plug
SKU: 11112-84400 Weight: 0.060000 Brand: Price: $ 4.02 |
Oil Venturi Plug | 1 | $ 4.02 | ||
| 7 | 11116-93J01 Plug
SKU: 11116-93J01 Weight: 0.100000 Brand: Price: $ 3.65 |
Plug | 2 | $ 3.65 | ||
| 8 | 09168-16009 Gasket (16x22x0.8)
SKU: 09168-16009 Weight: 0.060000 Brand: Price: $ 2.52 |
Gasket (16x22x0.8) | 2 | $ 2.52 | ||
| 9 | 11119-96J00 Cylinder Head Bolt
SKU: 11119-96J00 Weight: 0.250000 Brand: Price: $ 8.34 |
Cylinder Head Bolt | 10 | $ 8.34 | ||
| 10 | 11141-96J01 Cylinder Head Gasket
SKU: 11141-96J01 Weight: 1.500000 Brand: Price: $ 150.76 |
Cylinder Head Gasket | 1 | $ 150.76 | ||
| 11 | 09206-15001 Pin
SKU: 09206-15001 Weight: 0.100000 Brand: Price: $ 4.11 |
Pin | 2 | $ 4.11 | ||
| 12 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 4 | $ 2.82 | ||
| 13 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 1 | $ 2.82 | ||
| 14 | 01550-0835A BOLT
SKU: 01550-0835A Weight: 0.060000 Brand: Price: $ 3.09 |
BOLT | 2 | $ 3.09 | ||
| 15 | 01550-08457 BOLT
SKU: 01550-08457 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT | 1 | $ 3.48 | ||
| 16 | 01550-08607 BOLT
SKU: 01550-08607 Weight: 0.060000 Brand: Price: $ 3.82 |
BOLT | 6 | $ 3.82 | ||
| 17 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 3 | $ 16.29 | ||
| 18 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 3 | $ 2.38 | ||
| 19 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 3 | $ 7.36 | ||
| 20 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 3 | $ 2.99 | ||
| 21 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 3 | $ 2.74 | ||
| 22 | 11170-96J00 Cylinder Head Cover
SKU: 11170-96J00 Weight: 2.000000 Brand: Price: $ 386.75 |
Cylinder Head Cover | 1 | $ 386.75 | ||
| 23 | 11189-96J00 Cylinder Head Cover Gasket
SKU: 11189-96J00 Weight: 0.250000 Brand: Price: $ 32.56 |
Cylinder Head Cover Gasket | 1 | $ 32.56 | ||
| 24 | 11173-96J00 Breather Plate (NLA)
SKU: 11173-96J00 Weight: 1.000000 Brand: Price: $ 7.36 |
Breather Plate (NLA) | 1 | $ 7.36 | ||
| 25 | 02112-0612A SCREW
SKU: 02112-0612A Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 8 | $ 1.44 | ||
| 26 | 01547-06257 BOLT 6X25
SKU: 01547-06257 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6X25 | 10 | $ 2.04 | ||
| 27 | 01547-06507 BOLT 6 X 50
SKU: 01547-06507 Weight: 0.200000 Brand: Price: $ 2.41 |
BOLT 6 X 50 | 4 | $ 2.41 | ||
| 28 | 11191-96J00 Air Intake No. 2 Guide
SKU: 11191-96J00 Weight: 1.000000 Brand: Price: $ 25.53 |
Air Intake No. 2 Guide | 1 | $ 25.53 | ||
| 29 | 09320-08517 CUSHION,CABLE H
SKU: 09320-08517 Weight: 0.000000 Brand: Price: $ 4.47 |
CUSHION,CABLE H | 4 | $ 4.47 | ||
| 30 | 11174-96J00 Breather Hose
SKU: 11174-96J00 Weight: 0.500000 Brand: Price: $ 14.26 |
Breather Hose | 1 | $ 14.26 | ||
| 31 | 09401-18410 Clip
SKU: 09401-18410 Weight: 0.060000 Brand: Price: $ 3.64 |
Clip | 1 | $ 3.64 | ||
| 32 | 09482-00427 NGK BKR6E Spark Plug
SKU: 09482-00427 Weight: 0.187500 Brand: Price: $ 3.77 |
NGK BKR6E Spark Plug | 4 | $ 3.77 | ||
| 33 | 11115-93J10-001 Valve Guide (OS:0.5)
SKU: 11115-93J10-001 Weight: 0.060000 Brand: Price: $ 39.45 |
Valve Guide (OS:0.5) | 16 | $ 39.45 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
