Suzuki DF 6 Parts Listings - 2015
S/N 00602F-510001 to 00602F-51XXXX

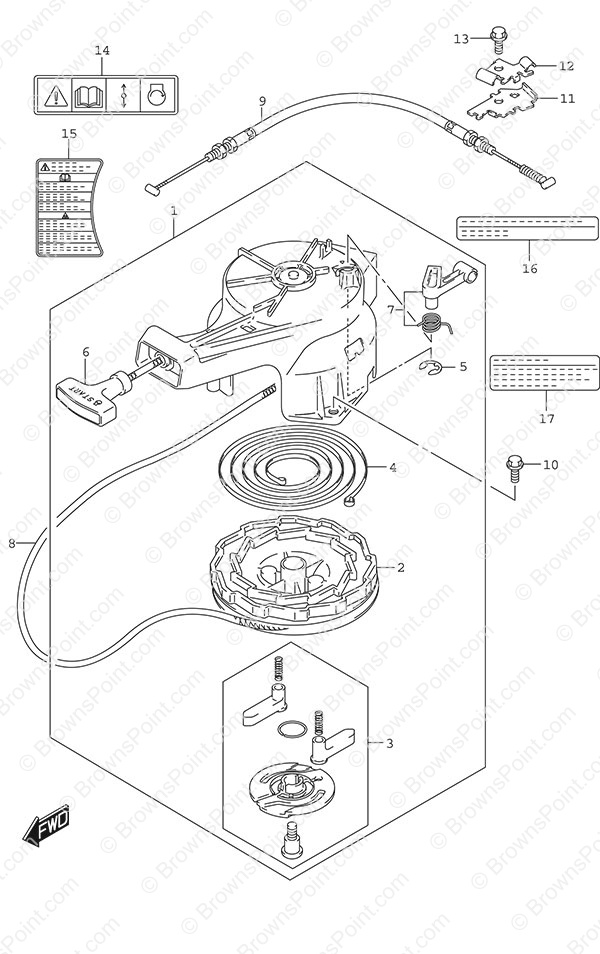

Fig. 167 - Recoil Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 18100-91JL2 Recoil Starter Assembly
SKU: 18100-91JL2 Weight: 2.000000 Brand: Price: $ 229.89 |
Recoil Starter Assembly | 1 | $ 229.89 | ||
| 2 | 18120-91JL0 Reel
SKU: 18120-91JL0 Weight: 0.100000 Brand: Price: $ 13.75 |
Reel | 1 | $ 13.75 | ||
| 3 | 18130-98130 Ratchet Set
SKU: 18130-98130 Weight: 0.060000 Brand: Price: $ 9.45 |
Ratchet Set | 1 | $ 9.45 | ||
| 4 | 18142-92920 Spiral Spring
SKU: 18142-92920 Weight: 0.100000 Brand: Price: $ 12.95 |
Spiral Spring | 1 | $ 12.95 | ||
| 5 | 18178-98310 Circlip
SKU: 18178-98310 Weight: 0.100000 Brand: Price: $ 0.89 |
Circlip | 1 | $ 0.89 | ||
| 6 | 18210-98130 Starter Grip
SKU: 18210-98130 Weight: 0.250000 Brand: Price: $ 8.60 |
Starter Grip | 1 | $ 8.60 | ||
| 7 | 18280-91J00 NSI Set
SKU: 18280-91J00 Weight: 0.250000 Brand: Price: $ 6.99 |
NSI Set | 1 | $ 6.99 | ||
| 8 | 99000-81157-50M Rope (NLA)
SKU: 99000-81157-50M Weight: 0.100000 Brand: Price: $ 182.62 |
Rope (NLA) | 1 | $ 182.62 | Opt: 50000->1200 | |
| 9 | 18290-91J01 NSI Cable
SKU: 18290-91J01 Weight: 0.250000 Brand: Price: $ 38.48 |
NSI Cable | 1 | $ 38.48 | ||
| 10 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 11 | 19183-91JL0 Throttle Cable Holder
SKU: 19183-91JL0 Weight: 0.250000 Brand: Price: $ 7.28 |
Throttle Cable Holder | 1 | $ 7.28 | Lower | |
| 12 | 19183-91JM0 Throttle Cable Holder (NLA)
SKU: 19183-91JM0 Weight: 0.250000 Brand: Price: $ 4.74 |
Throttle Cable Holder (NLA) | 1 | $ 4.74 | Upper | |
| 13 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 14 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 | ||
| 15 | 61472-91J10 Recoil Starter Label (NLA)
SKU: 61472-91J10 Weight: 0.100000 Brand: Price: $ 6.64 |
Recoil Starter Label (NLA) | 1 | $ 6.64 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
