Suzuki DF 6 Parts Listings - 2015
S/N 00602F-510001 to 00602F-51XXXX

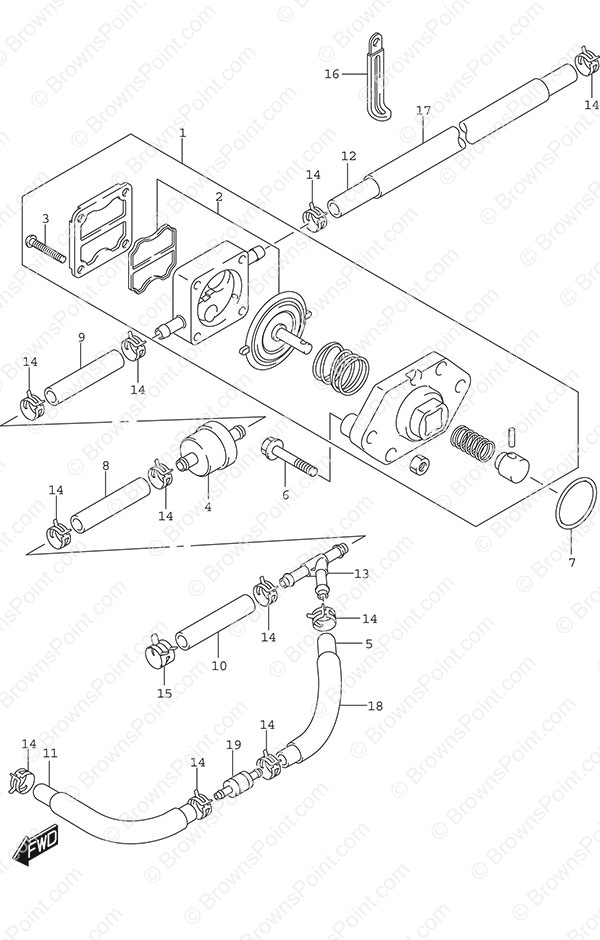

Fig. 146 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-91J03 Fuel Pump Assembly
SKU: 15100-91J03 Weight: 0.380000 Brand: Price: $ 153.68 |
Fuel Pump Assembly | 1 | $ 153.68 | ||
| 2 | 15170-91J02 Fuel Pump Diaphragm Set
SKU: 15170-91J02 Weight: 0.060000 Brand: Price: $ 26.99 |
Fuel Pump Diaphragm Set | 1 | $ 26.99 | ||
| 3 | 15251-91J00 Screw
SKU: 15251-91J00 Weight: 0.060000 Brand: Price: $ 3.00 |
Screw | 4 | $ 3.00 | ||
| 4 | 15410-98500 Fuel Filter
SKU: 15410-98500 Weight: 0.060000 Brand: Price: $ 10.74 |
Fuel Filter | 1 | $ 10.74 | ||
| 5 | 09343-50L01-070 Hose (5x10x70)
SKU: 09343-50L01-070 Weight: 0.200000 Brand: Price: $ 5.46 |
Hose (5x10x70) | 1 | $ 5.46 | ||
| 6 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 7 | 09280-27006 O-Ring
SKU: 09280-27006 Weight: 0.060000 Brand: Price: $ 3.19 |
O-Ring | 1 | $ 3.19 | ||
| 8 | 09343-50L01-040 Hose (5x10x40)
SKU: 09343-50L01-040 Weight: 0.250000 Brand: Price: $ 3.19 |
Hose (5x10x40) | 1 | $ 3.19 | ||
| 9 | 09343-50L01-040 Hose (5x10x40)
SKU: 09343-50L01-040 Weight: 0.250000 Brand: Price: $ 3.19 |
Hose (5x10x40) | 1 | $ 3.19 | ||
| 10 | 15192-91JL0 Fuel Hose
SKU: 15192-91JL0 Weight: 0.200000 Brand: Price: $ 6.43 |
Fuel Hose | 1 | $ 6.43 | Connector to Elbow | |
| 11 | 15191-91JN0 Fuel Hose
SKU: 15191-91JN0 Weight: 0.200000 Brand: Price: $ 17.70 |
Fuel Hose | 1 | $ 17.70 | Tank to Valve | |
| 12 | 09343-50L01-300 Hose (5x10x300)
SKU: 09343-50L01-300 Weight: 0.250000 Brand: Price: $ 19.58 |
Hose (5x10x300) | 1 | $ 19.58 | ||
| 13 | 09367-06007 3 Way
SKU: 09367-06007 Weight: 0.060000 Brand: Price: $ 3.52 |
3 Way | 1 | $ 3.52 | ||
| 14 | 09401-09404 Clip
SKU: 09401-09404 Weight: 0.060000 Brand: Price: $ 2.06 |
Clip | 11 | $ 2.06 | ||
| 15 | 09401-11422 Clip
SKU: 09401-11422 Weight: 0.060000 Brand: Price: $ 2.24 |
Clip | 1 | $ 2.24 | ||
| 16 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 17 | 18498-91J20 Protector (L:130)
SKU: 18498-91J20 Weight: 0.250000 Brand: Price: $ 3.12 |
Protector (L:130) | 1 | $ 3.12 | ||
| 18 | 18498-91J40 Protector (L:30)
SKU: 18498-91J40 Weight: 0.250000 Brand: Price: $ 0.00 |
Protector (L:30) | 1 | $ 0.00 | ||
| 19 | 15850-79200 Fuel Return Check Valve
SKU: 15850-79200 Weight: 0.250000 Brand: Price: $ 45.74 |
Fuel Return Check Valve | 1 | $ 45.74 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
