Suzuki DF 4 Parts Listings - 2015
S/N 00402F-510001 to 00402F-51XXXX

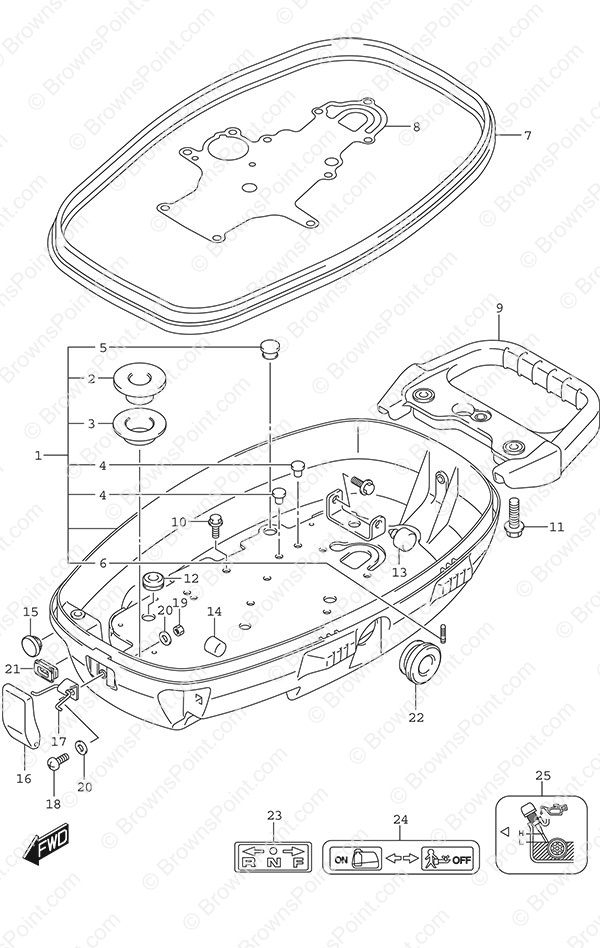

Fig. 412 - Lower Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61100-91JA0-0EP Lower Cover Assembly
SKU: 61100-91JA0-0EP Weight: 5.000000 Brand: Price: $ 379.58 |
Lower Cover Assembly | 1 | $ 379.58 | ||
| 2 | 65132-91J00 Cushion (NLA)
SKU: 65132-91J00 Weight: 0.100000 Brand: Price: $ 5.89 |
Cushion (NLA) | 1 | $ 5.89 | ||
| 4 | 09250-06005 Plug
SKU: 09250-06005 Weight: 0.060000 Brand: Price: $ 0.00 |
Plug | 2 | $ 0.00 | ||
| 5 | 09250-12004 Plug (NLA)
SKU: 09250-12004 Weight: 0.000000 Brand: Price: $ 1.60 |
Plug (NLA) | 1 | $ 1.60 | ||
| 6 | 61155-94400 Water Inspection Tube
SKU: 61155-94400 Weight: 0.060000 Brand: Price: $ 4.03 |
Water Inspection Tube | 1 | $ 4.03 | ||
| 7 | 61112-91J10 Lower Engine Cover Rubber
SKU: 61112-91J10 Weight: 7.000000 Brand: Price: $ 44.12 |
Lower Engine Cover Rubber | 1 | $ 44.12 | ||
| 8 | 61126-91J01 Lower Cover Plate Gasket
SKU: 61126-91J01 Weight: 0.160000 Brand: Price: $ 35.84 |
Lower Cover Plate Gasket | 1 | $ 35.84 | ||
| 9 | 61950-91J20 Carrying Handle
SKU: 61950-91J20 Weight: 0.680000 Brand: Price: $ 35.86 |
Carrying Handle | 1 | $ 35.86 | ||
| 10 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 2 | $ 2.60 | ||
| 11 | 09116-08150 Bolt (8x27)
SKU: 09116-08150 Weight: 0.200000 Brand: Price: $ 3.60 |
Bolt (8x27) | 2 | $ 3.60 | ||
| 12 | 09308-08011 Grommet
SKU: 09308-08011 Weight: 0.100000 Brand: Price: $ 2.52 |
Grommet | 1 | $ 2.52 | ||
| 13 | 61151-91J11 Cushion
SKU: 61151-91J11 Weight: 0.060000 Brand: Price: $ 3.66 |
Cushion | 1 | $ 3.66 | ||
| 14 | 61151-91J20 Cushion
SKU: 61151-91J20 Weight: 0.100000 Brand: Price: $ 4.08 |
Cushion | 1 | $ 4.08 | ||
| 15 | 09250-12006 Cap
SKU: 09250-12006 Weight: 0.060000 Brand: Price: $ 2.00 |
Cap | 1 | $ 2.00 | ||
| 16 | 61611-91J11 Engine Cover Fastener
SKU: 61611-91J11 Weight: 1.250000 Brand: Price: $ 2.26 |
Engine Cover Fastener | 2 | $ 2.26 | ||
| 17 | 61640-91J10 Fastener Lever
SKU: 61640-91J10 Weight: 0.060000 Brand: Price: $ 16.56 |
Fastener Lever | 2 | $ 16.56 | ||
| 18 | 09125-05132 Screw (5x14) (NLA)
SKU: 09125-05132 Weight: 0.062500 Brand: Price: $ 1.53 |
Screw (5x14) (NLA) | 2 | $ 1.53 | ||
| 19 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 20 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 4 | $ 1.70 | ||
| 21 | 63625-96300 Throttle Cable Grommet
SKU: 63625-96300 Weight: 0.180000 Brand: Price: $ 3.21 |
Throttle Cable Grommet | 1 | $ 3.21 | ||
| 22 | 63624-91J00 Oil Level Gauge Grommet
SKU: 63624-91J00 Weight: 0.060000 Brand: Price: $ 9.78 |
Oil Level Gauge Grommet | 1 | $ 9.78 | ||
| 23 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 24 | 61211-91J80 Fuel Cock Mark
SKU: 61211-91J80 Weight: 0.100000 Brand: Price: $ 0.00 |
Fuel Cock Mark | 1 | $ 0.00 | ||
| 25 | 61212-91J00 Oil Level Mark
SKU: 61212-91J00 Weight: 0.100000 Brand: Price: $ 0.00 |
Oil Level Mark | 1 | $ 0.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
