Suzuki DF 4 Parts Listings - 2015
S/N 00402F-510001 to 00402F-51XXXX

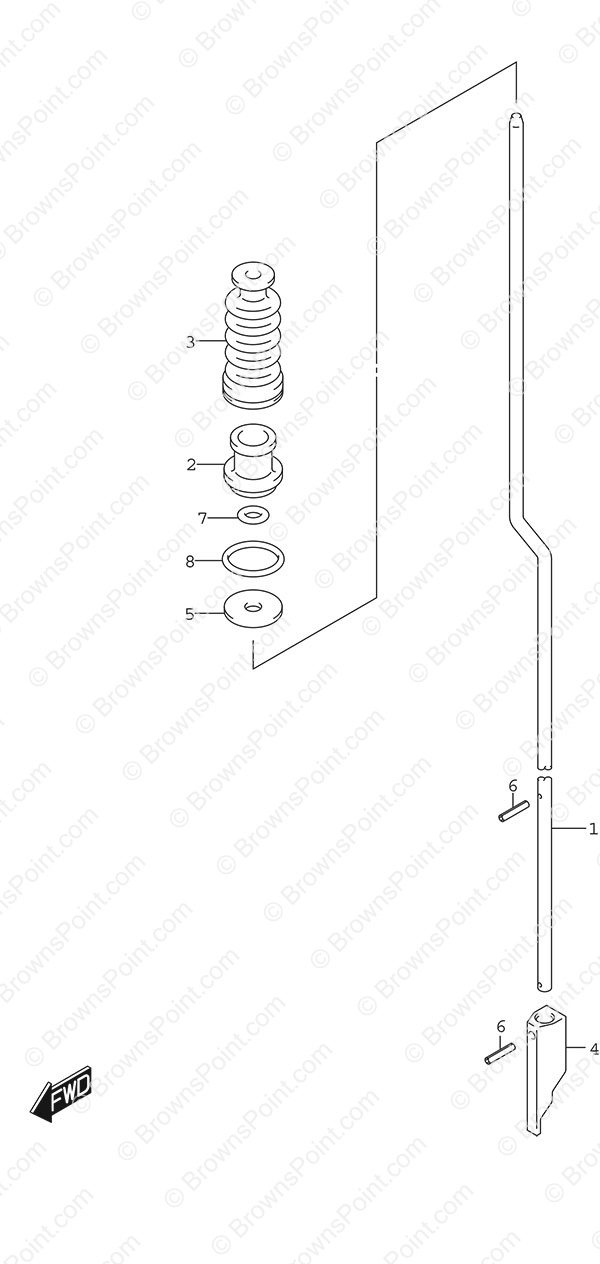

Fig. 210 - Shift Rod
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 25111-91J21 Shift Rod (S)
SKU: 25111-91J21 Weight: 0.500000 Brand: Price: $ 6.06 |
Shift Rod (S) | 1 | $ 6.06 | w/Transom (S) | |
| 1-2 | 25111-91J31 Shift Rod (L)
SKU: 25111-91J31 Weight: 0.100000 Brand: Price: $ 0.00 |
Shift Rod (L) | 1 | $ 0.00 | Type: L | |
| 2 | 25211-98601 Shift Rod Guide
SKU: 25211-98601 Weight: 0.060000 Brand: Price: $ 4.20 |
Shift Rod Guide | 1 | $ 4.20 | ||
| 4 | 25311-91J01 Shift Cam
SKU: 25311-91J01 Weight: 0.200000 Brand: Price: $ 12.41 |
Shift Cam | 1 | $ 12.41 | ||
| 3 | 25222-91JL0 Shift Rod Boot
SKU: 25222-91JL0 Weight: 0.250000 Brand: Price: $ 9.12 |
Shift Rod Boot | 1 | $ 9.12 | ||
| 5 | 09160-05501 Washer (5.5x20x1.2)
SKU: 09160-05501 Weight: 0.100000 Brand: Price: $ 1.85 |
Washer (5.5x20x1.2) | 1 | $ 1.85 | ||
| 6 | 09204-02004 Cotter Pin
SKU: 09204-02004 Weight: 0.060000 Brand: Price: $ 1.32 |
Cotter Pin | 2 | $ 1.32 | ||
| 7 | 09280-05008 O-Ring
SKU: 09280-05008 Weight: 0.060000 Brand: Price: $ 2.52 |
O-Ring | 1 | $ 2.52 | ||
| 8 | 09280-15007 O-Ring
SKU: 09280-15007 Weight: 0.060000 Brand: Price: $ 1.73 |
O-Ring | 1 | $ 1.73 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
