Suzuki DF 4 Parts Listings - 2015
S/N 00402F-510001 to 00402F-51XXXX

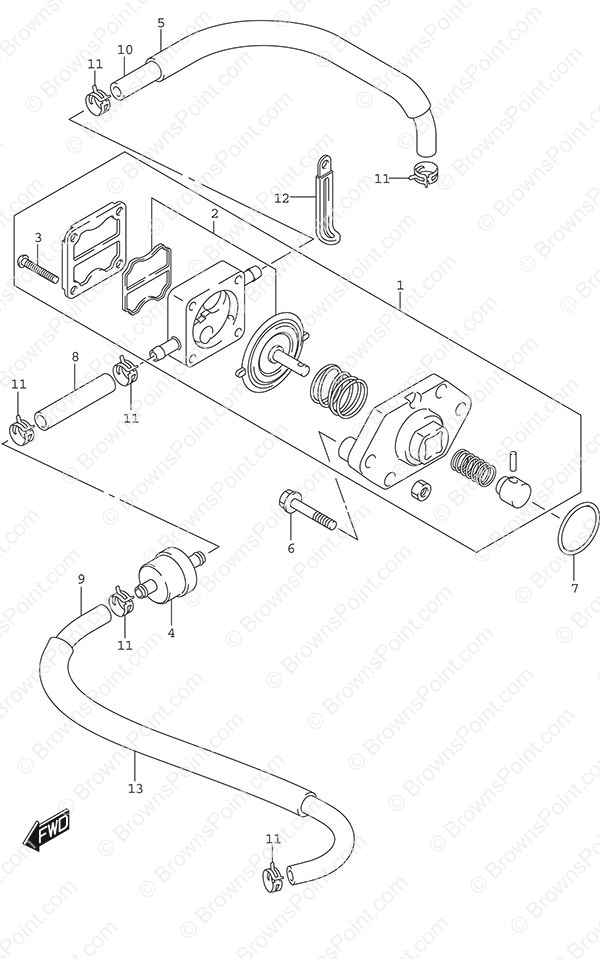

Fig. 146 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-91J03 Fuel Pump Assembly
SKU: 15100-91J03 Weight: 0.380000 Brand: Price: $ 153.68 |
Fuel Pump Assembly | 1 | $ 153.68 | ||
| 2 | 15170-91J02 Fuel Pump Diaphragm Set
SKU: 15170-91J02 Weight: 0.060000 Brand: Price: $ 26.99 |
Fuel Pump Diaphragm Set | 1 | $ 26.99 | ||
| 3 | 15251-91J00 Screw
SKU: 15251-91J00 Weight: 0.060000 Brand: Price: $ 3.00 |
Screw | 4 | $ 3.00 | ||
| 4 | 15410-98500 Fuel Filter
SKU: 15410-98500 Weight: 0.060000 Brand: Price: $ 10.74 |
Fuel Filter | 1 | $ 10.74 | ||
| 5 | 18498-91J20 Protector (L:130)
SKU: 18498-91J20 Weight: 0.250000 Brand: Price: $ 3.12 |
Protector (L:130) | 1 | $ 3.12 | ||
| 6 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 7 | 09280-27006 O-Ring
SKU: 09280-27006 Weight: 0.060000 Brand: Price: $ 3.19 |
O-Ring | 1 | $ 3.19 | ||
| 8 | 09343-50L01-040 Hose (5x10x40)
SKU: 09343-50L01-040 Weight: 0.250000 Brand: Price: $ 3.19 |
Hose (5x10x40) | 1 | $ 3.19 | ||
| 9 | 15191-91JM0 Fuel Hose (NLA)
SKU: 15191-91JM0 Weight: 0.250000 Brand: Price: $ 23.02 |
Fuel Hose (NLA) | 1 | $ 23.02 | Tank to Filter | |
| 10 | 09343-50L01-300 Hose (5x10x300)
SKU: 09343-50L01-300 Weight: 0.250000 Brand: Price: $ 19.58 |
Hose (5x10x300) | 1 | $ 19.58 | ||
| 11 | 09401-09404 Clip
SKU: 09401-09404 Weight: 0.060000 Brand: Price: $ 2.06 |
Clip | 6 | $ 2.06 | ||
| 12 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 13 | 18498-99J00 Protector (L:100)
SKU: 18498-99J00 Weight: 0.250000 Brand: Price: $ 2.85 |
Protector (L:100) | 1 | $ 2.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
