Suzuki DF 30A Parts Listings - 2015
S/N 03003F-510001 to 03003F-51XXXX

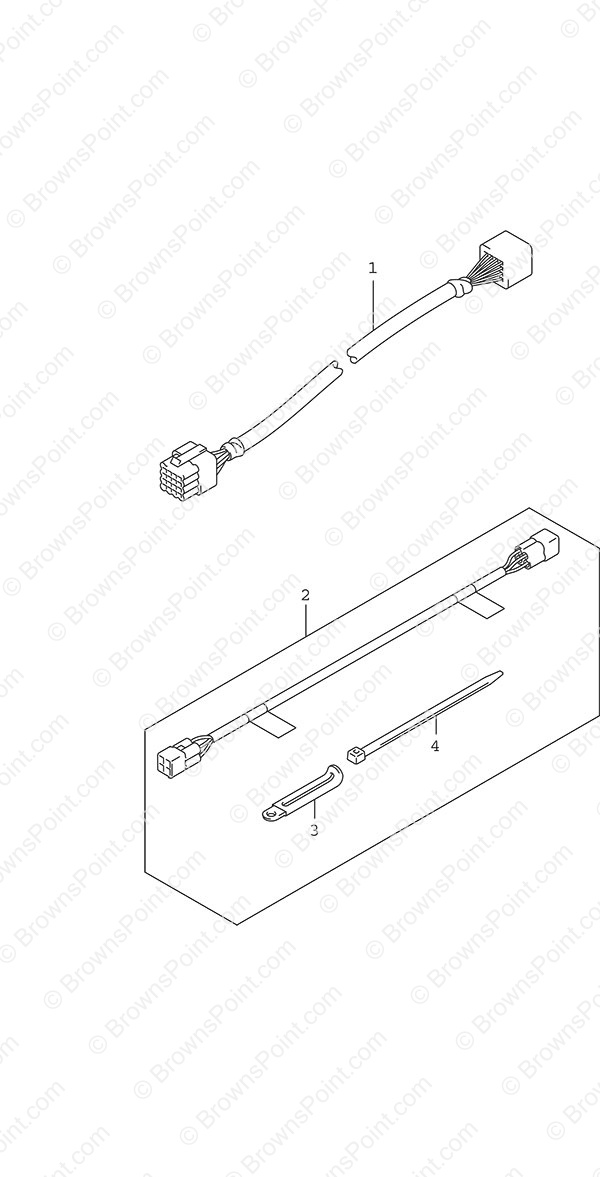

Fig. 521 - Opt: Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 36620-93J12 MAIN HARNESS EXT 6.5'
SKU: 36620-93J12 Weight: 0.000000 Brand: Price: $ 87.37 |
MAIN HARNESS EXT 6.5' | 1 | $ 87.37 | L:2000 | |
| 1-2 | 36620-93J42 HARNESS EXT 10'
SKU: 36620-93J42 Weight: 0.000000 Brand: Price: $ 120.18 |
HARNESS EXT 10' | 1 | $ 120.18 | L:3000 | |
| 2 | 36660-89L01 Replaced by 36660-89L03
SKU: 36660-89L01 Weight: 0.500000 Brand: Price: $ 185.88 |
Replaced by 36660-89L03 | 1 | $ 185.88 | ||
| 3 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 4 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 4 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
