Suzuki DF 30A Parts Listings - 2015
S/N 03003F-510001 to 03003F-51XXXX

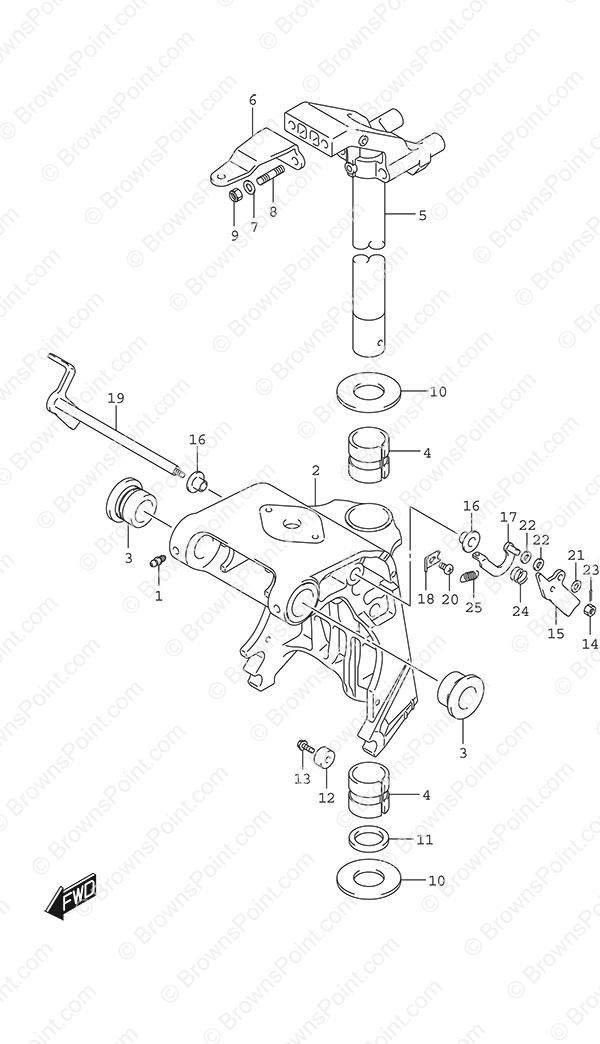

Fig. 336A - Swivel Bracket Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | ||
| 2-1 | 43111-94LA0-0EP Swivel Bracket (S)
SKU: 43111-94LA0-0EP Weight: 5.000000 Brand: Price: $ 192.70 |
Swivel Bracket (S) | 1 | $ 192.70 | w/Transom (S) | |
| 2-2 | 43111-94LB0-0EP Swivel Bracket (L)
SKU: 43111-94LB0-0EP Weight: 5.000000 Brand: Price: $ 203.14 |
Swivel Bracket (L) | 1 | $ 203.14 | w/Transom (L) | |
| 3 | 43211-87JL0 Swivel Bracket Bushing
SKU: 43211-87JL0 Weight: 0.100000 Brand: Price: $ 33.39 |
Swivel Bracket Bushing | 2 | $ 33.39 | ||
| 4 | 43711-94L00 Steering Bushing
SKU: 43711-94L00 Weight: 0.250000 Brand: Price: $ 5.77 |
Steering Bushing | 2 | $ 5.77 | ||
| 5-1 | 43750-94L00-0EP Steering Bracket (S)
SKU: 43750-94L00-0EP Weight: 5.000000 Brand: Price: $ 153.90 |
Steering Bracket (S) | 1 | $ 153.90 | w/Transom (S) | |
| 5-2 | 43750-94L10-0EP Steering Bracket (L)
SKU: 43750-94L10-0EP Weight: 5.000000 Brand: Price: $ 165.40 |
Steering Bracket (L) | 1 | $ 165.40 | w/Transom (L) | |
| 6 | 43755-94L00 Steering Bracket Attachment
SKU: 43755-94L00 Weight: 0.250000 Brand: Price: $ 45.71 |
Steering Bracket Attachment | 1 | $ 45.71 | ||
| 7 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | ||
| 8 | 09108-08286 Stud Bolt
SKU: 09108-08286 Weight: 0.060000 Brand: Price: $ 14.70 |
Stud Bolt | 2 | $ 14.70 | ||
| 9 | 09159-08059 Nut
SKU: 09159-08059 Weight: 0.060000 Brand: Price: $ 5.21 |
Nut | 2 | $ 5.21 | ||
| 10 | 09160-30057 Washer
SKU: 09160-30057 Weight: 0.125000 Brand: Price: $ 5.08 |
Washer | 2 | $ 5.08 | ||
| 11 | 09282-30008 Seal
SKU: 09282-30008 Weight: 0.200000 Brand: Price: $ 9.02 |
Seal | 1 | $ 9.02 | ||
| 12-1 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 12-2 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use only | |
| 13 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 14 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 | ||
| 15 | 41221-94LA0 Tilt Lock Port Lever
SKU: 41221-94LA0 Weight: 0.250000 Brand: Price: $ 12.14 |
Tilt Lock Port Lever | 1 | $ 12.14 | ||
| 16 | 41224-94LA0 Tilt Stopper Rod Bushing
SKU: 41224-94LA0 Weight: 0.125000 Brand: Price: $ 4.96 |
Tilt Stopper Rod Bushing | 2 | $ 4.96 | ||
| 17 | 41230-94LA0 Tilt Lock Lever Link
SKU: 41230-94LA0 Weight: 0.200000 Brand: Price: $ 24.71 |
Tilt Lock Lever Link | 1 | $ 24.71 | ||
| 18 | 41233-94LA0 Tilt Lock Spring Bracket
SKU: 41233-94LA0 Weight: 0.200000 Brand: Price: $ 4.96 |
Tilt Lock Spring Bracket | 1 | $ 4.96 | ||
| 19 | 41280-94LA0 Tilt Lock Lever
SKU: 41280-94LA0 Weight: 0.200000 Brand: Price: $ 33.93 |
Tilt Lock Lever | 1 | $ 33.93 | ||
| 20 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 21 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 22 | 09160-06170 Washer
SKU: 09160-06170 Weight: 0.125000 Brand: Price: $ 2.37 |
Washer | 2 | $ 2.37 | ||
| 23 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 1 | $ 1.40 | ||
| 24 | 09440-13057 Spring
SKU: 09440-13057 Weight: 0.062500 Brand: Price: $ 1.43 |
Spring | 1 | $ 1.43 | ||
| 25 | 09443-10043 Tilt Lock Spring
SKU: 09443-10043 Weight: 0.125000 Brand: Price: $ 2.55 |
Tilt Lock Spring | 1 | $ 2.55 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
