Suzuki DF 30A Parts Listings - 2015
S/N 03003F-510001 to 03003F-51XXXX

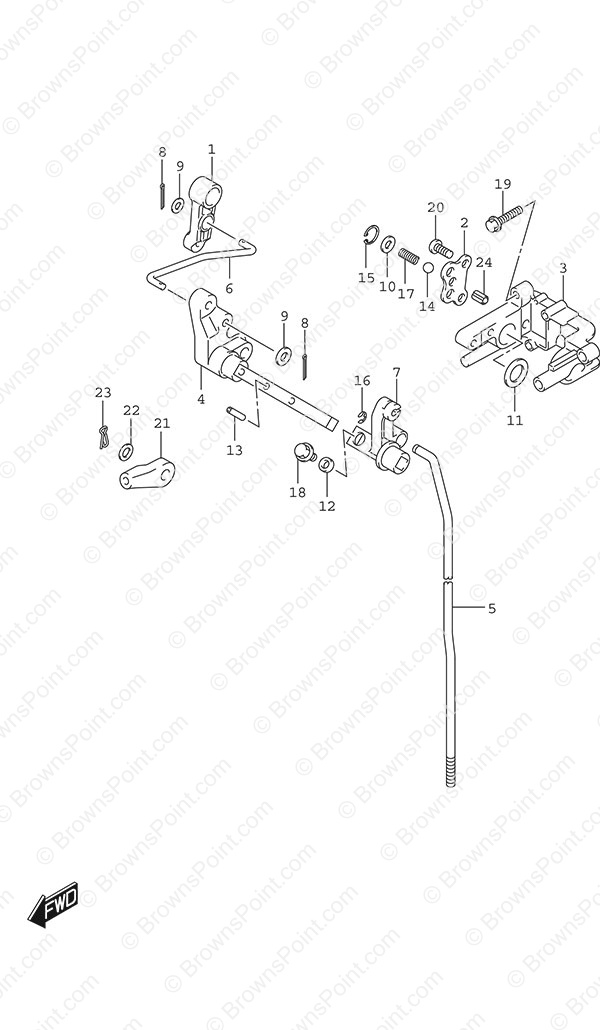

Fig. 206A - Clutch Rod Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21110-94L00 Clutch Control Lever
SKU: 21110-94L00 Weight: 0.250000 Brand: Price: $ 18.18 |
Clutch Control Lever | 1 | $ 18.18 | ||
| 2 | 21122-94L00 Clutch Notch Plate
SKU: 21122-94L00 Weight: 0.125000 Brand: Price: $ 7.14 |
Clutch Notch Plate | 1 | $ 7.14 | ||
| 3 | 21151-94L00 Clutch Shaft Holder
SKU: 21151-94L00 Weight: 0.250000 Brand: Price: $ 49.06 |
Clutch Shaft Holder | 1 | $ 49.06 | ||
| 4 | 21210-94L00 Clutch Lever Shaft
SKU: 21210-94L00 Weight: 0.250000 Brand: Price: $ 26.32 |
Clutch Lever Shaft | 1 | $ 26.32 | ||
| 5-1 | 23111-94L00 Clutch Rod (S)
SKU: 23111-94L00 Weight: 0.300000 Brand: Price: $ 23.08 |
Clutch Rod (S) | 1 | $ 23.08 | w/Transom (S) | |
| 5-2 | 23111-94L10 Clutch Rod (L)
SKU: 23111-94L10 Weight: 0.500000 Brand: Price: $ 26.49 |
Clutch Rod (L) | 1 | $ 26.49 | w/Transom (L) | |
| 6 | 23115-94L10 Clutch Lever Link
SKU: 23115-94L10 Weight: 0.250000 Brand: Price: $ 6.08 |
Clutch Lever Link | 1 | $ 6.08 | ||
| 7 | 23211-94L00 Clutch Rod Arm
SKU: 23211-94L00 Weight: 0.060000 Brand: Price: $ 7.72 |
Clutch Rod Arm | 1 | $ 7.72 | ||
| 8 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 9 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 2 | $ 1.70 | ||
| 11 | 09160-14071 Washer (13.3x23x1)
SKU: 09160-14071 Weight: 0.125000 Brand: Price: $ 3.04 |
Washer (13.3x23x1) | 1 | $ 3.04 | ||
| 10 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 12 | 09180-06362 Spacer (6.5x10.5x4) (NLA)
SKU: 09180-06362 Weight: 0.125000 Brand: Price: $ 0.66 |
Spacer (6.5x10.5x4) (NLA) | 1 | $ 0.66 | ||
| 13 | 09205-04002 Spring Pin (4x20)
SKU: 09205-04002 Weight: 0.060000 Brand: Price: $ 1.26 |
Spring Pin (4x20) | 1 | $ 1.26 | ||
| 14 | 09260-10006 Ball
SKU: 09260-10006 Weight: 0.250000 Brand: Price: $ 2.53 |
Ball | 1 | $ 2.53 | ||
| 15 | 09381-14004 Circlip
SKU: 09381-14004 Weight: 0.250000 Brand: Price: $ 2.65 |
Circlip | 1 | $ 2.65 | ||
| 16 | 09383-04002 E Ring
SKU: 09383-04002 Weight: 0.060000 Brand: Price: $ 0.76 |
E Ring | 1 | $ 0.76 | ||
| 17 | 09440-07080 Spring
SKU: 09440-07080 Weight: 0.062500 Brand: Price: $ 1.09 |
Spring | 1 | $ 1.09 | ||
| 18 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 19 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 20 | 02112-06127 SCREW
SKU: 02112-06127 Weight: 0.060000 Brand: Price: $ 1.85 |
SCREW | 2 | $ 1.85 | ||
| 21 | 67467-89J01 Cable Connector
SKU: 67467-89J01 Weight: 0.060000 Brand: Price: $ 7.75 |
Cable Connector | 1 | $ 7.75 | ||
| 22 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 1 | $ 1.70 | ||
| 23 | 09385-06012 Clip
SKU: 09385-06012 Weight: 0.060000 Brand: Price: $ 1.91 |
Clip | 1 | $ 1.91 | ||
| 24 | 37724-99J00 Switch Push Rod
SKU: 37724-99J00 Weight: 0.250000 Brand: Price: $ 8.21 |
Switch Push Rod | 1 | $ 8.21 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
