Suzuki DF 30A Parts Listings - 2015
S/N 03003F-510001 to 03003F-51XXXX

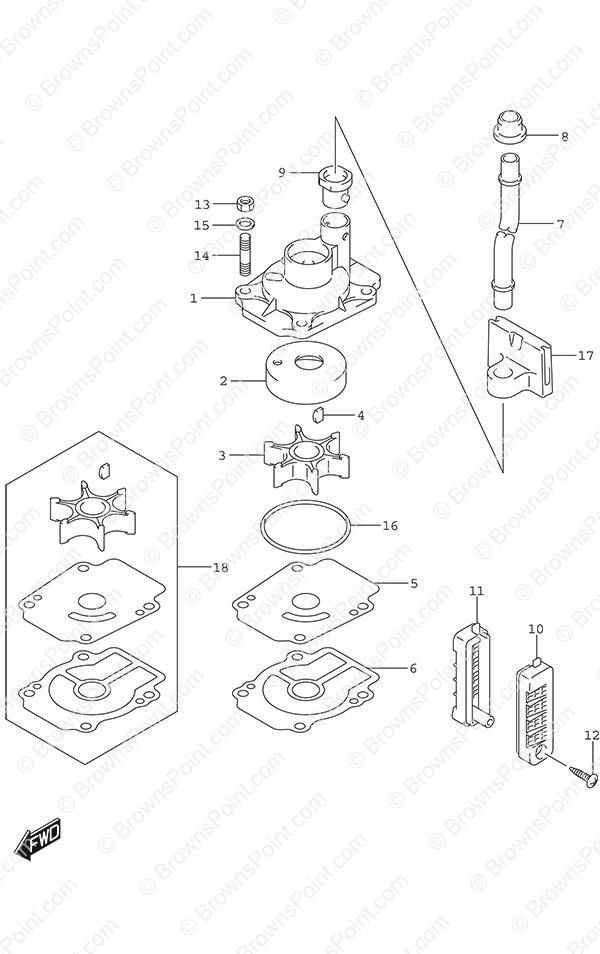

Fig. 160 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17411-94L00 Water Pump Case
SKU: 17411-94L00 Weight: 0.200000 Brand: Price: $ 17.40 |
Water Pump Case | 1 | $ 17.40 | ||
| 2 | 17413-94L00 Water Pump Case Sleeve
SKU: 17413-94L00 Weight: 0.080000 Brand: Price: $ 20.85 |
Water Pump Case Sleeve | 1 | $ 20.85 | ||
| 3 | 17461-94L00 Water Pump Impeller
SKU: 17461-94L00 Weight: 0.060000 Brand: Price: $ 33.07 |
Water Pump Impeller | 1 | $ 33.07 | ||
| 4 | 17462-94L00 Water Pump Impeller Key
SKU: 17462-94L00 Weight: 0.060000 Brand: Price: $ 8.95 |
Water Pump Impeller Key | 1 | $ 8.95 | ||
| 5 | 17471-94L00 Water Pump Plate
SKU: 17471-94L00 Weight: 0.120000 Brand: Price: $ 7.12 |
Water Pump Plate | 1 | $ 7.12 | ||
| 6 | 17472-94L00 Water Pump Plate Gasket
SKU: 17472-94L00 Weight: 0.060000 Brand: Price: $ 2.94 |
Water Pump Plate Gasket | 1 | $ 2.94 | ||
| 7-1 | 17561-94L00 Water Tube (S)
SKU: 17561-94L00 Weight: 0.100000 Brand: Price: $ 7.14 |
Water Tube (S) | 1 | $ 7.14 | w/Transom (S) | |
| 7-2 | 17561-94L10 Water Tube (L)
SKU: 17561-94L10 Weight: 0.250000 Brand: Price: $ 9.97 |
Water Tube (L) | 1 | $ 9.97 | w/TRansom (L) | |
| 8 | 17562-94L00 Water Tube Upper Grommet
SKU: 17562-94L00 Weight: 0.125000 Brand: Price: $ 3.25 |
Water Tube Upper Grommet | 1 | $ 3.25 | ||
| 9 | 17564-94L00 Water Tube Lower Grommet
SKU: 17564-94L00 Weight: 0.060000 Brand: Price: $ 3.49 |
Water Tube Lower Grommet | 1 | $ 3.49 | ||
| 10 | 17631-94L00 Port Side Water Filter
SKU: 17631-94L00 Weight: 0.125000 Brand: Price: $ 5.83 |
Port Side Water Filter | 1 | $ 5.83 | ||
| 12 | 03142-04259 SCREW
SKU: 03142-04259 Weight: 0.060000 Brand: Price: $ 2.20 |
SCREW | 1 | $ 2.20 | ||
| 11 | 17632-94L00 Starboard Side Water Filter
SKU: 17632-94L00 Weight: 0.125000 Brand: Price: $ 5.94 |
Starboard Side Water Filter | 1 | $ 5.94 | ||
| 13 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 4 | $ 1.80 | ||
| 14 | 09108-06149 Stud Bolt
SKU: 09108-06149 Weight: 0.125000 Brand: Price: $ 4.13 |
Stud Bolt | 1 | $ 4.13 | ||
| 15 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 4 | $ 1.44 | ||
| 16 | 09280-54004 O-Ring
SKU: 09280-54004 Weight: 0.060000 Brand: Price: $ 2.40 |
O-Ring | 1 | $ 2.40 | ||
| 17 | 17565-94L00 Water Tube Guide
SKU: 17565-94L00 Weight: 0.250000 Brand: Price: $ 6.93 |
Water Tube Guide | 1 | $ 6.93 | ||
| 18 | 17400-94L21 Water Pump Repair Kit DF25A/30A
SKU: 17400-94L21 Weight: 0.250000 Brand: Price: $ 50.74 |
Water Pump Repair Kit DF25A/30A | 1 | $ 50.74 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
