Suzuki DF 30A Parts Listings - 2015
S/N 03003F-510001 to 03003F-51XXXX

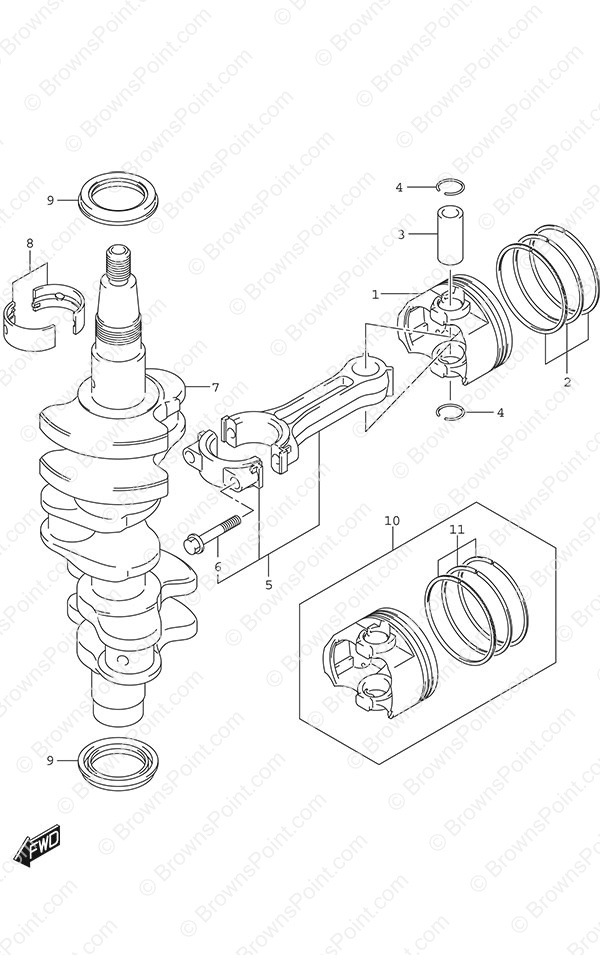

Fig. 116 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12111-89L00-0B0 Piston
SKU: 12111-89L00-0B0 Weight: 0.250000 Brand: Price: $ 53.11 |
Piston | 3 | $ 53.11 | ||
| 2 | 12140-89L00 Piston Ring Set
SKU: 12140-89L00 Weight: 0.250000 Brand: Price: $ 56.42 |
Piston Ring Set | 3 | $ 56.42 | ||
| 3 | 12151-89L00 Piston Pin
SKU: 12151-89L00 Weight: 0.250000 Brand: Price: $ 10.88 |
Piston Pin | 3 | $ 10.88 | ||
| 4 | 09381-16001 Piston Pin Circlip
SKU: 09381-16001 Weight: 0.060000 Brand: Price: $ 1.44 |
Piston Pin Circlip | 6 | $ 1.44 | ||
| 5 | 12160-89L11 Connecting Rod Assembly
SKU: 12160-89L11 Weight: 0.500000 Brand: Price: $ 36.82 |
Connecting Rod Assembly | 3 | $ 36.82 | ||
| 6 | 12163-89L02 Connecting Rod Bolt
SKU: 12163-89L02 Weight: 0.125000 Brand: Price: $ 2.13 |
Connecting Rod Bolt | 6 | $ 2.13 | ||
| 7 | 12220-94L00 Crankshaft Assembly
SKU: 12220-94L00 Weight: 5.000000 Brand: Price: $ 951.98 |
Crankshaft Assembly | 1 | $ 951.98 | ||
| 8 | 12341-89L10 Crankshaft Bearing
SKU: 12341-89L10 Weight: 0.250000 Brand: Price: $ 8.89 |
Crankshaft Bearing | 8 | $ 8.89 | ||
| 9 | 09283-32048 Oil Seal (32x44x6.5)
SKU: 09283-32048 Weight: 0.125000 Brand: Price: $ 11.03 |
Oil Seal (32x44x6.5) | 2 | $ 11.03 | ||
| 10 | 12100-89L00-050 Piston Set (OS:0.50)
SKU: 12100-89L00-050 Weight: 0.500000 Brand: Price: $ 86.64 |
Piston Set (OS:0.50) | 3 | $ 86.64 | Optional | |
| 11 | 12140-89L00-050 Piston Ring Set (OS:0.50)
SKU: 12140-89L00-050 Weight: 0.250000 Brand: Price: $ 56.42 |
Piston Ring Set (OS:0.50) | 3 | $ 56.42 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
