Suzuki DF 25A Parts Listings - 2015
S/N 02504F-510001 to 02504F-51XXXX

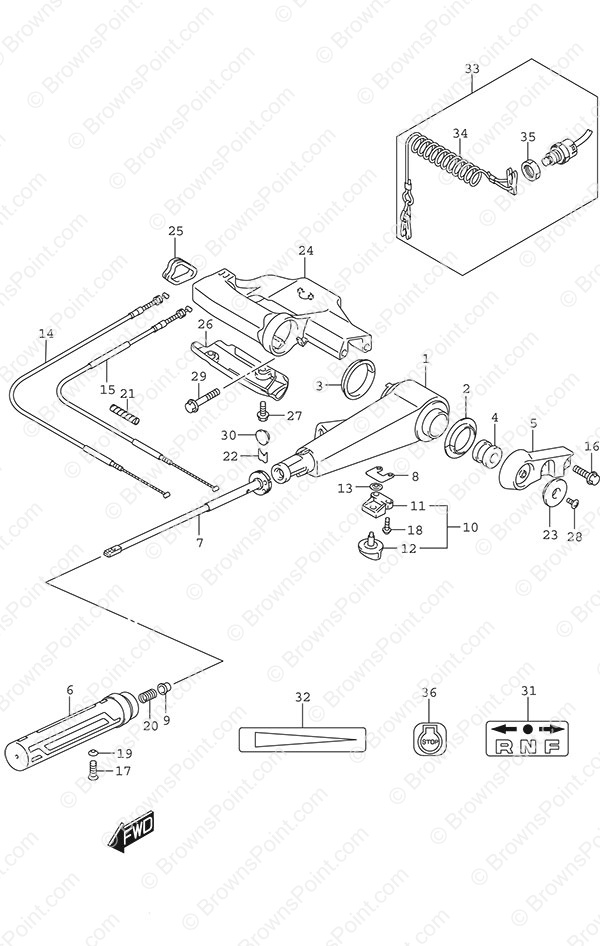

Fig. 444 - Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63111-89L01-0EP Tiller Handle
SKU: 63111-89L01-0EP Weight: 2.000000 Brand: Price: $ 176.31 |
Tiller Handle | 1 | $ 176.31 | ||
| 2 | 63115-99J10 Tiller Handle Bushing No 1
SKU: 63115-99J10 Weight: 0.125000 Brand: Price: $ 13.23 |
Tiller Handle Bushing No 1 | 1 | $ 13.23 | ||
| 3 | 63115-99J00 Tiller Handle Bushing No 2
SKU: 63115-99J00 Weight: 0.125000 Brand: Price: $ 18.34 |
Tiller Handle Bushing No 2 | 1 | $ 18.34 | ||
| 4 | 63116-99J00 Friction Rubber
SKU: 63116-99J00 Weight: 0.250000 Brand: Price: $ 16.44 |
Friction Rubber | 1 | $ 16.44 | ||
| 5 | 63121-99J00-0EP Tiller Handle Cover
SKU: 63121-99J00-0EP Weight: 0.250000 Brand: Price: $ 79.33 |
Tiller Handle Cover | 1 | $ 79.33 | ||
| 6 | 63210-94L00 Handle Grip
SKU: 63210-94L00 Weight: 1.500000 Brand: Price: $ 33.85 |
Handle Grip | 1 | $ 33.85 | ||
| 7 | 63220-94L00 Handle Rod
SKU: 63220-94L00 Weight: 0.500000 Brand: Price: $ 15.47 |
Handle Rod | 1 | $ 15.47 | ||
| 8 | 63225-94J00 Handle Rod Adjuster Plate
SKU: 63225-94J00 Weight: 0.200000 Brand: Price: $ 4.61 |
Handle Rod Adjuster Plate | 1 | $ 4.61 | ||
| 9 | 63225-93200 Handle Rod Bushing
SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
| 10 | 63240-94J20 Handle Grip Adjuster Set
SKU: 63240-94J20 Weight: 0.120000 Brand: Price: $ 9.43 |
Handle Grip Adjuster Set | 1 | $ 9.43 | ||
| 11 | 63241-986B0 Handle Rod Support
SKU: 63241-986B0 Weight: 0.060000 Brand: Price: $ 7.01 |
Handle Rod Support | 1 | $ 7.01 | ||
| 12 | 63244-94J00 Throttle Adjust Knob
SKU: 63244-94J00 Weight: 0.060000 Brand: Price: $ 8.79 |
Throttle Adjust Knob | 1 | $ 8.79 | ||
| 13 | 09148-06008 Nut
SKU: 09148-06008 Weight: 0.060000 Brand: Price: $ 1.30 |
Nut | 1 | $ 1.30 | ||
| 14 | 63610-94L00 Throttle Cable Assembly No 1
SKU: 63610-94L00 Weight: 0.250000 Brand: Price: $ 15.19 |
Throttle Cable Assembly No 1 | 1 | $ 15.19 | ||
| 15 | 63650-94L00 Throttle Cable Assembly No 2
SKU: 63650-94L00 Weight: 0.250000 Brand: Price: $ 17.45 |
Throttle Cable Assembly No 2 | 1 | $ 17.45 | ||
| 16 | 09116-08151 Bolt (8x30)
SKU: 09116-08151 Weight: 0.250000 Brand: Price: $ 2.18 |
Bolt (8x30) | 2 | $ 2.18 | ||
| 17 | 09126-06015 Screw (6x23)
SKU: 09126-06015 Weight: 0.060000 Brand: Price: $ 2.62 |
Screw (6x23) | 1 | $ 2.62 | ||
| 18 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 1.97 |
Screw (5x20) | 2 | $ 1.97 | ||
| 19 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 20 | 09440-12027 Spring
SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
| 21 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | ||
| 22 | 63114-99J01 Warning Indicator Plate
SKU: 63114-99J01 Weight: 0.250000 Brand: Price: $ 10.88 |
Warning Indicator Plate | 1 | $ 10.88 | ||
| 23 | 63122-99J00 Handle Cover Protector
SKU: 63122-99J00 Weight: 0.250000 Brand: Price: $ 14.76 |
Handle Cover Protector | 1 | $ 14.76 | ||
| 24 | 63131-94L00-0EP Tiller Handle Bracket
SKU: 63131-94L00-0EP Weight: 0.250000 Brand: Price: $ 74.51 |
Tiller Handle Bracket | 1 | $ 74.51 | ||
| 25 | 63133-89L00 Tiller Handle Bracket Grommet
SKU: 63133-89L00 Weight: 0.250000 Brand: Price: $ 12.04 |
Tiller Handle Bracket Grommet | 1 | $ 12.04 | ||
| 26 | 63134-94L00 Tiller Handle Bracket Cover
SKU: 63134-94L00 Weight: 0.250000 Brand: Price: $ 6.35 |
Tiller Handle Bracket Cover | 1 | $ 6.35 | ||
| 27 | 09116-08155 Bolt (8x45)
SKU: 09116-08155 Weight: 0.250000 Brand: Price: $ 5.19 |
Bolt (8x45) | 2 | $ 5.19 | ||
| 28 | 09125-05042 Screw (5x10)
SKU: 09125-05042 Weight: 0.060000 Brand: Price: $ 1.99 |
Screw (5x10) | 1 | $ 1.99 | ||
| 29 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 1.97 |
Screw (5x20) | 2 | $ 1.97 | ||
| 30 | 09250-12006 Cap
SKU: 09250-12006 Weight: 0.060000 Brand: Price: $ 2.00 |
Cap | 1 | $ 2.00 | ||
| 31 | 21131-94J00 Clutch Shift Mark *
SKU: 21131-94J00 Weight: 0.060000 Brand: Price: $ 1.41 |
Clutch Shift Mark * | 1 | $ 1.41 | ||
| 32 | 63215-93110 Handle Grip Mark
SKU: 63215-93110 Weight: 0.060000 Brand: Price: $ 3.19 |
Handle Grip Mark | 1 | $ 3.19 | ||
| 33 | 37830-94J11 Emergency Switch Assembly
SKU: 37830-94J11 Weight: 0.250000 Brand: Price: $ 55.90 |
Emergency Switch Assembly | 1 | $ 55.90 | ||
| 34 | 37823-97J00 Stop Switch Lanyard
SKU: 37823-97J00 Weight: 0.080000 Brand: Price: $ 28.07 |
Stop Switch Lanyard | 1 | $ 28.07 | ||
| 35 | 37826-92E00 Nut
SKU: 37826-92E00 Weight: 0.060000 Brand: Price: $ 5.77 |
Nut | 1 | $ 5.77 | ||
| 36 | 37835-91J00-YAY Stop Label
SKU: 37835-91J00-YAY Weight: 0.060000 Brand: Price: $ 1.20 |
Stop Label | 1 | $ 1.20 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
