Suzuki DF 25A Parts Listings - 2015
S/N 02504F-510001 to 02504F-51XXXX

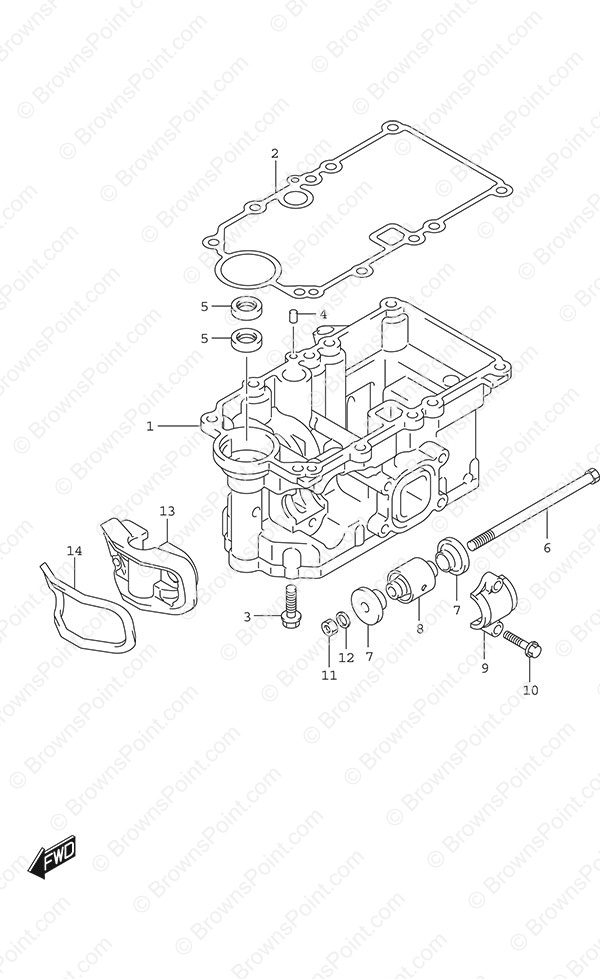

Fig. 401 - Engine Holder

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 51110-94L00 Engine Holder 1 $ 156.63
2 51211-94L00 Engine Holder Gasket 1 $ 21.44
3 09116-08150 Bolt (8x27) 10 $ 3.60

Not Available

4 09202-06023 Knock Pin (6x10) 2 $ 3.00
5 09282-15009 Oil Seal 2 $ 9.15
6 54112-94L00 Upper Mount Bolt 2 $ 23.43
7 54125-94L00 Upper Mount Thrust Stopper 4 $ 10.38
8 54130-94L00 Upper Mount 2 $ 22.27
9 54137-94L00 Upper Mount Cover 2 $ 39.70
10 09116-08152 Bolt (8x35) 4 $ 9.63
11 09140-10031 Nut (10mm) 2 $ 2.04
12 09160-10156 Washer 2 $ 2.59
13 54144-94L00 Upper Mount Seal 1 $ 31.00
14 54145-94L00 Upper Mount Seal No 2 1 $ 6.35

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
