Suzuki DF 25A Parts Listings - 2015
S/N 02504F-510001 to 02504F-51XXXX

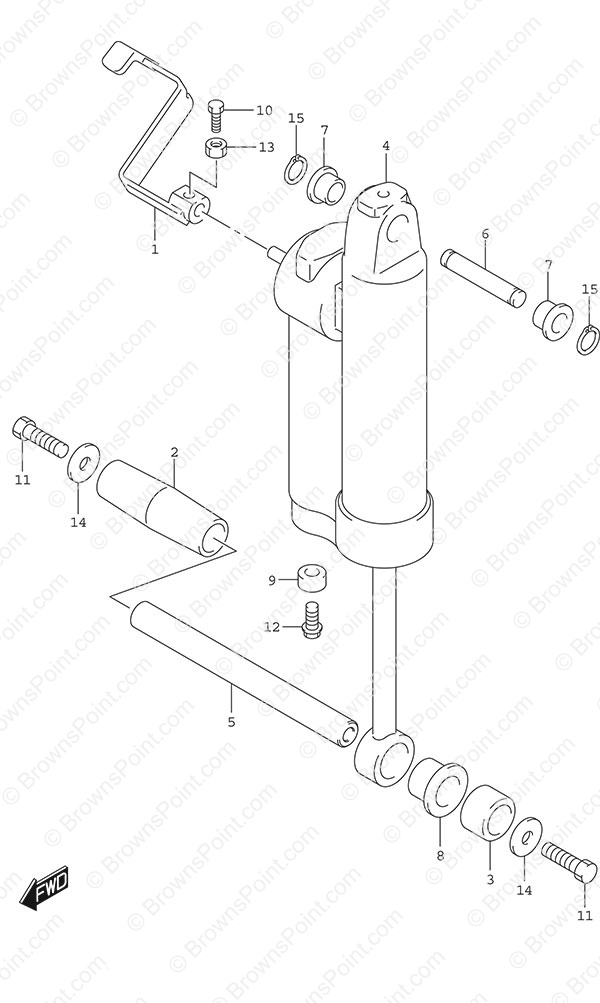

Fig. 339 - Gas Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 45260-94LA0 Release Lever
SKU: 45260-94LA0 Weight: 0.200000 Brand: Price: $ 48.48 |
Release Lever | 1 | $ 48.48 | ||
| 2 | 47225-94L00 Tilt Cylinder Starboard Spacer
SKU: 47225-94L00 Weight: 0.200000 Brand: Price: $ 27.94 |
Tilt Cylinder Starboard Spacer | 1 | $ 27.94 | ||
| 3 | 47226-94L00 Tilt Cylnder Lower Collar
SKU: 47226-94L00 Weight: 0.200000 Brand: Price: $ 5.54 |
Tilt Cylnder Lower Collar | 1 | $ 5.54 | ||
| 4 | 47400-95J02 Gas Cylinder Assembly
SKU: 47400-95J02 Weight: 5.000000 Brand: Price: $ 1,113.93 |
Gas Cylinder Assembly | 1 | $ 1,113.93 | ||
| 5 | 48121-94LA0 Tilt Cylinder Lower Shaft
SKU: 48121-94LA0 Weight: 0.500000 Brand: Price: $ 44.72 |
Tilt Cylinder Lower Shaft | 1 | $ 44.72 | ||
| 6 | 48321-94L00 Tilt Cylinder Upper Shaft
SKU: 48321-94L00 Weight: 0.500000 Brand: Price: $ 12.86 |
Tilt Cylinder Upper Shaft | 1 | $ 12.86 | ||
| 7 | 48325-94L00 Tilt Cylinder Upper Bushing
SKU: 48325-94L00 Weight: 0.200000 Brand: Price: $ 5.54 |
Tilt Cylinder Upper Bushing | 2 | $ 5.54 | ||
| 8 | 48326-94L00 Tilt Cylinder Lower Bushing
SKU: 48326-94L00 Weight: 0.125000 Brand: Price: $ 5.54 |
Tilt Cylinder Lower Bushing | 1 | $ 5.54 | ||
| 9 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 10 | 09100-06113 Bolt (6x16)
SKU: 09100-06113 Weight: 0.200000 Brand: Price: $ 1.93 |
Bolt (6x16) | 1 | $ 1.93 | ||
| 11 | 09100-10323 Bolt (10x35)
SKU: 09100-10323 Weight: 0.250000 Brand: Price: $ 11.62 |
Bolt (10x35) | 2 | $ 11.62 | ||
| 12 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 13 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | ||
| 14 | 09160-10158 Washer
SKU: 09160-10158 Weight: 0.125000 Brand: Price: $ 4.94 |
Washer | 2 | $ 4.94 | ||
| 15 | 09380-12002 Snap Ring
SKU: 09380-12002 Weight: 0.060000 Brand: Price: $ 1.52 |
Snap Ring | 2 | $ 1.52 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
