Suzuki DF 25A Parts Listings - 2015
S/N 02504F-510001 to 02504F-51XXXX

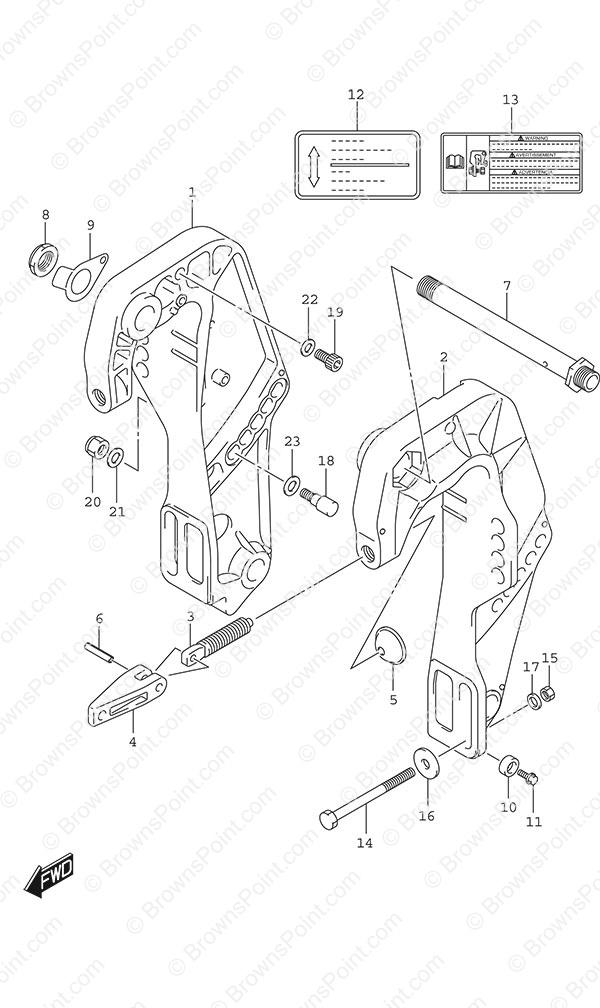

Fig. 335C - Clamp Bracket w/Gas Assist Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-94LA0-0EP Starboard Clamp Bracket
SKU: 41111-94LA0-0EP Weight: 3.000000 Brand: Price: $ 123.20 |
Starboard Clamp Bracket | 1 | $ 123.20 | ||
| 2 | 41121-94LA0-0EP Port Clamp Bracket
SKU: 41121-94LA0-0EP Weight: 3.000000 Brand: Price: $ 107.45 |
Port Clamp Bracket | 1 | $ 107.45 | ||
| 3 | 41211-94LA0 Clamp Screw
SKU: 41211-94LA0 Weight: 0.250000 Brand: Price: $ 12.37 |
Clamp Screw | 2 | $ 12.37 | ||
| 4 | 41212-91J00 Clamp Handle
SKU: 41212-91J00 Weight: 0.080000 Brand: Price: $ 15.22 |
Clamp Handle | 2 | $ 15.22 | ||
| 5 | 41213-94J01 Clamp Plate
SKU: 41213-94J01 Weight: 0.060000 Brand: Price: $ 3.70 |
Clamp Plate | 2 | $ 3.70 | ||
| 6 | 09205-06021 Spring Pin (6x25)
SKU: 09205-06021 Weight: 0.062500 Brand: Price: $ 2.03 |
Spring Pin (6x25) | 2 | $ 2.03 | ||
| 7 | 41130-94LA0 Clamp Bracket Shaft
SKU: 41130-94LA0 Weight: 1.000000 Brand: Price: $ 211.31 |
Clamp Bracket Shaft | 1 | $ 211.31 | ||
| 8 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 9 | 41135-93JL0 Clamp Bracket Shaft Washer
SKU: 41135-93JL0 Weight: 0.200000 Brand: Price: $ 3.73 |
Clamp Bracket Shaft Washer | 1 | $ 3.73 | ||
| 10-1 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 2 | $ 7.36 | ||
| 10-2 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use only | |
| 11 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 2 | $ 2.99 | ||
| 12 | 43241-87J00 Release Lever Mark (NLA)
SKU: 43241-87J00 Weight: 0.100000 Brand: Price: $ 2.06 |
Release Lever Mark (NLA) | 1 | $ 2.06 | ||
| 13 | 69911-91J20 Clamp Bracket Mark (NLA)
SKU: 69911-91J20 Weight: 0.060000 Brand: Price: $ 5.01 |
Clamp Bracket Mark (NLA) | 1 | $ 5.01 | ||
| 14 | 09100-12093 Transom Bolt (12x100)
SKU: 09100-12093 Weight: 0.220000 Brand: Price: $ 13.75 |
Transom Bolt (12x100) | 4 | $ 13.75 | ||
| 15 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 4 | $ 5.04 | ||
| 16 | 09160-12044 Washer (12.5x35x3.2)
SKU: 09160-12044 Weight: 0.060000 Brand: Price: $ 3.49 |
Washer (12.5x35x3.2) | 4 | $ 3.49 | ||
| 17 | 09160-12110 Washer (12.5x22x3.0)
SKU: 09160-12110 Weight: 0.060000 Brand: Price: $ 3.79 |
Washer (12.5x22x3.0) | 4 | $ 3.79 | ||
| 18 | 45421-94LA0 Tilt Lock Pin
SKU: 45421-94LA0 Weight: 0.200000 Brand: Price: $ 11.02 |
Tilt Lock Pin | 2 | $ 11.02 | ||
| 19 | 09106-10065 Bolt (10x20)
SKU: 09106-10065 Weight: 0.050000 Brand: Price: $ 6.19 |
Bolt (10x20) | 2 | $ 6.19 | ||
| 20 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 2 | $ 2.59 | ||
| 21 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 22 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 23 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 2 | $ 1.80 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
