Suzuki DF 25A Parts Listings - 2015
S/N 02504F-510001 to 02504F-51XXXX

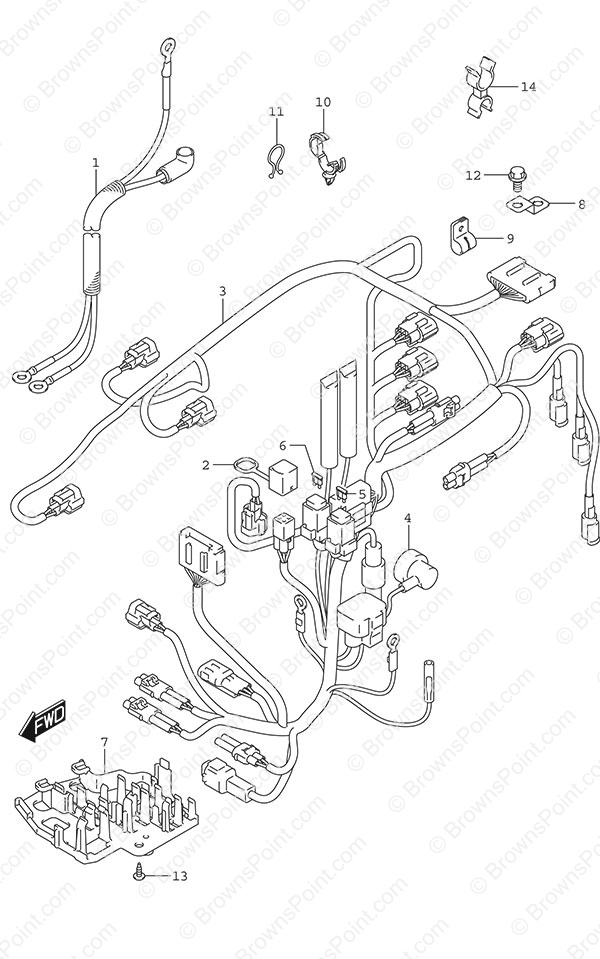

Fig. 322B - Harness Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-94L00 Starter Cable
SKU: 33810-94L00 Weight: 5.000000 Brand: Price: $ 73.22 |
Starter Cable | 1 | $ 73.22 | ||
| 2 | 33634-94L00 Service Connector Cap
SKU: 33634-94L00 Weight: 0.200000 Brand: Price: $ 6.93 |
Service Connector Cap | 1 | $ 6.93 | ||
| 3-1 | 36610-94L20 Wiring Harness Assembly
SKU: 36610-94L20 Weight: 5.000000 Brand: Price: $ 521.60 |
Wiring Harness Assembly | 1 | $ 521.60 | Type: AR | |
| 3-2 | 36610-94L41 Wiring Harness Assembly
SKU: 36610-94L41 Weight: 5.000000 Brand: Price: $ 415.41 |
Wiring Harness Assembly | 1 | $ 415.41 | Type: AT | |
| 4 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 5 | 09481-10501 10 Amp Fuse
SKU: 09481-10501 Weight: 0.062500 Brand: Price: $ 2.06 |
10 Amp Fuse | 1 | $ 2.06 | ||
| 6 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 1 | $ 2.33 | ||
| 7 | 36616-94L00 Conector Holder
SKU: 36616-94L00 Weight: 0.250000 Brand: Price: $ 19.77 |
Conector Holder | 1 | $ 19.77 | ||
| 8 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.00 |
Harness Bracket | 1 | $ 2.00 | ||
| 9 | 09403-08417 Clamp
SKU: 09403-08417 Weight: 0.100000 Brand: Price: $ 2.48 |
Clamp | 1 | $ 2.48 | ||
| 10 | 09403-20308 Clip
SKU: 09403-20308 Weight: 0.060000 Brand: Price: $ 3.61 |
Clip | 2 | $ 3.61 | ||
| 11 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.13 |
Clamp | 3 | $ 2.13 | ||
| 12 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 13 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 2 | $ 1.70 | ||
| 14 | 09408-00054 Clamp (NLA)
SKU: 09408-00054 Weight: 0.060000 Brand: Price: $ 2.26 |
Clamp (NLA) | 1 | $ 2.26 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
