Suzuki DF 25A Parts Listings - 2015
S/N 02504F-510001 to 02504F-51XXXX

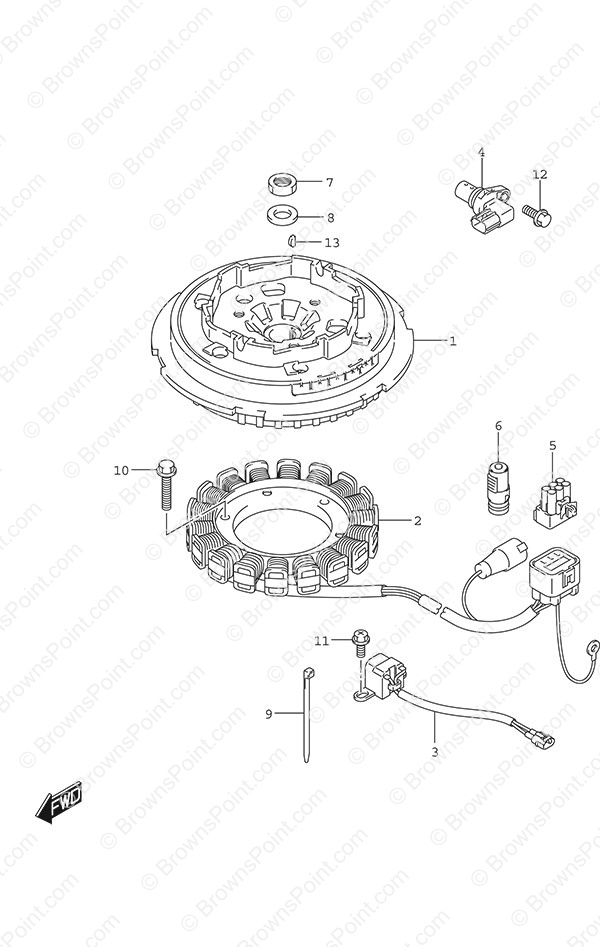

Fig. 303A - Magneto Manual Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-94L00 Flywheel
SKU: 32102-94L00 Weight: 5.000000 Brand: Price: $ 442.14 |
Flywheel | 1 | $ 442.14 | ||
| 2 | 32120-94L00 Stator Coil
SKU: 32120-94L00 Weight: 2.000000 Brand: Price: $ 389.77 |
Stator Coil | 1 | $ 389.77 | ||
| 3 | 32160-94L00 Ignition Timing Coil
SKU: 32160-94L00 Weight: 0.250000 Brand: Price: $ 133.00 |
Ignition Timing Coil | 1 | $ 133.00 | ||
| 4 | 33220-50M00 Cam Position Sensor
SKU: 33220-50M00 Weight: 0.250000 Brand: Price: $ 100.69 |
Cam Position Sensor | 1 | $ 100.69 | ||
| 5 | 36690-94L00 Dummy Connector Assembly
SKU: 36690-94L00 Weight: 0.125000 Brand: Price: $ 11.21 |
Dummy Connector Assembly | 1 | $ 11.21 | ||
| 6 | 36690-94L10 Dummy Connector Assembly
SKU: 36690-94L10 Weight: 0.125000 Brand: Price: $ 12.37 |
Dummy Connector Assembly | 1 | $ 12.37 | ||
| 7 | 09140-14008 Nut 14mm
SKU: 09140-14008 Weight: 0.125000 Brand: Price: $ 2.32 |
Nut 14mm | 1 | $ 2.32 | ||
| 8 | 09160-15057 Washer (15x27x4)
SKU: 09160-15057 Weight: 0.250000 Brand: Price: $ 2.26 |
Washer (15x27x4) | 1 | $ 2.26 | ||
| 9 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | ||
| 10 | 01547-0625A BOLT
SKU: 01547-0625A Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT | 3 | $ 2.04 | ||
| 11 | 01550-05127 Bolt
SKU: 01550-05127 Weight: 0.060000 Brand: Price: $ 1.49 |
Bolt | 2 | $ 1.49 | ||
| 12 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 13 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
