Suzuki DF 25A Parts Listings - 2015
S/N 02504F-510001 to 02504F-51XXXX

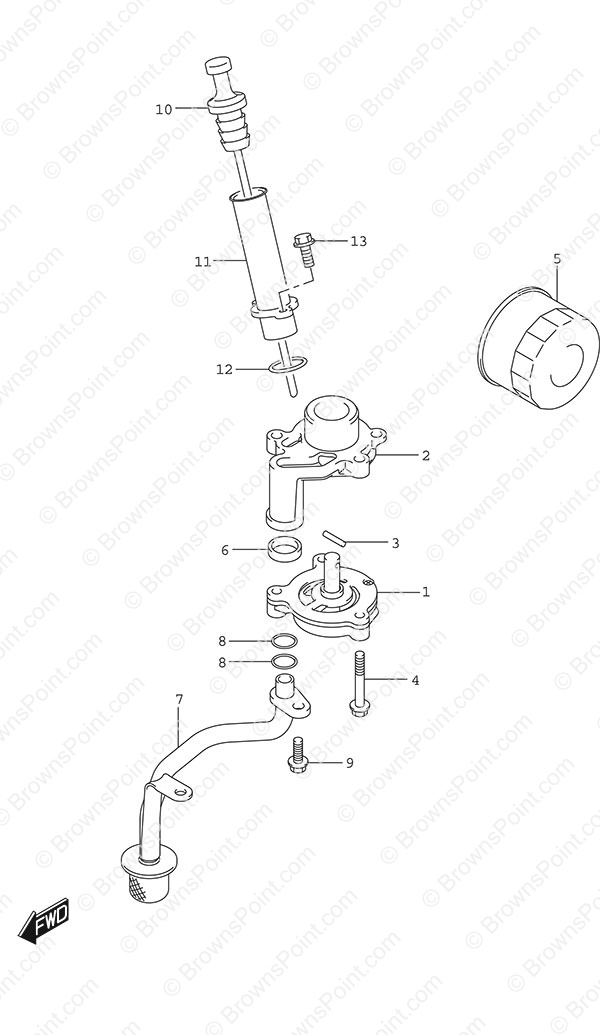

Fig. 175 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 16400-94L00 Oil Pump Assembly
SKU: 16400-94L00 Weight: 1.000000 Brand: Price: $ 118.20 |
Oil Pump Assembly | 1 | $ 118.20 | ||
| 2 | 16431-94L00 Oil Gallery Block
SKU: 16431-94L00 Weight: 0.500000 Brand: Price: $ 34.86 |
Oil Gallery Block | 1 | $ 34.86 | ||
| 3 | 59262-94J00 Oil Pump Pin
SKU: 59262-94J00 Weight: 0.100000 Brand: Price: $ 1.51 |
Oil Pump Pin | 1 | $ 1.51 | ||
| 4 | 01547-0640A BOLT
SKU: 01547-0640A Weight: 0.250000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 5 | 16510-87J02 Engine Oil Filter
SKU: 16510-87J02 Weight: 0.000000 Brand: Price: $ 14.89 |
Engine Oil Filter | 1 | $ 14.89 | ||
| 6 | 16519-94L00 Engine Holder Seal
SKU: 16519-94L00 Weight: 0.125000 Brand: Price: $ 5.57 |
Engine Holder Seal | 1 | $ 5.57 | ||
| 7 | 16520-94L00 Oil Strainer
SKU: 16520-94L00 Weight: 1.000000 Brand: Price: $ 42.72 |
Oil Strainer | 1 | $ 42.72 | ||
| 8 | 09280-12012 O-Ring
SKU: 09280-12012 Weight: 0.060000 Brand: Price: $ 4.73 |
O-Ring | 2 | $ 4.73 | ||
| 9 | 01550-0616A BOLT
SKU: 01550-0616A Weight: 0.100000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 | ||
| 10 | 16910-94L00 Oil Level Gauge
SKU: 16910-94L00 Weight: 0.500000 Brand: Price: $ 16.36 |
Oil Level Gauge | 1 | $ 16.36 | ||
| 11 | 16930-94L00 Oil Level Gauge Guide
SKU: 16930-94L00 Weight: 0.500000 Brand: Price: $ 18.57 |
Oil Level Gauge Guide | 1 | $ 18.57 | ||
| 12 | 09280-21008 O-Ring
SKU: 09280-21008 Weight: 0.125000 Brand: Price: $ 1.91 |
O-Ring | 1 | $ 1.91 | ||
| 13 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
