Suzuki DF 25A Parts Listings - 2015
S/N 02504F-510001 to 02504F-51XXXX

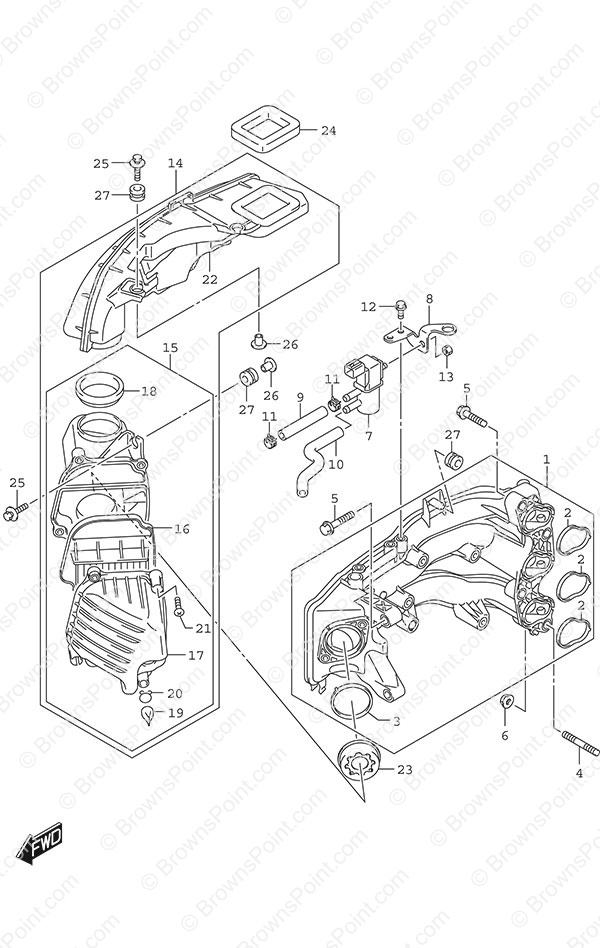

Fig. 122 - Intake Manifold
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13110-94L00 Intake Manifold
SKU: 13110-94L00 Weight: 5.000000 Brand: Price: $ 607.65 |
Intake Manifold | 1 | $ 607.65 | ||
| 2 | 13119-94L00 Intake Manifold Gasket
SKU: 13119-94L00 Weight: 0.125000 Brand: Price: $ 11.91 |
Intake Manifold Gasket | 3 | $ 11.91 | ||
| 3 | 13125-94L00 Throttle Body Gasket
SKU: 13125-94L00 Weight: 0.125000 Brand: Price: $ 14.36 |
Throttle Body Gasket | 1 | $ 14.36 | ||
| 4 | 01421-08357 BOLT,STUD
SKU: 01421-08357 Weight: 0.060000 Brand: Price: $ 4.62 |
BOLT,STUD | 2 | $ 4.62 | ||
| 5 | 01550-08357 BOLT
SKU: 01550-08357 Weight: 0.060000 Brand: Price: $ 3.54 |
BOLT | 4 | $ 3.54 | ||
| 6 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 2 | $ 2.27 | ||
| 7 | 18117-78K00 Evap Canister Purge Valve
SKU: 18117-78K00 Weight: 0.250000 Brand: Price: $ 111.46 |
Evap Canister Purge Valve | 1 | $ 111.46 | ||
| 8 | 18119-94L00 IAC Valve Bracket
SKU: 18119-94L00 Weight: 0.250000 Brand: Price: $ 12.86 |
IAC Valve Bracket | 1 | $ 12.86 | ||
| 9 | 44421-12FR0 Hose (6.5x11.5x600)
SKU: 44421-12FR0 Weight: 0.180000 Brand: Price: $ 13.02 |
Hose (6.5x11.5x600) | 1 | $ 13.02 | L:600->70 | |
| 10 | 18173-94L00 IAC Valve Hose No 2
SKU: 18173-94L00 Weight: 0.200000 Brand: Price: $ 4.90 |
IAC Valve Hose No 2 | 1 | $ 4.90 | ||
| 11 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 2 | $ 2.09 | ||
| 12 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 13 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 1 | $ 2.25 | ||
| 14 | 13800-94L00 Silencer Assembly
SKU: 13800-94L00 Weight: 2.000000 Brand: Price: $ 225.90 |
Silencer Assembly | 1 | $ 225.90 | ||
| 15 | 13810-94L00 Silencer Cleaner
SKU: 13810-94L00 Weight: 2.000000 Brand: Price: $ 186.11 |
Silencer Cleaner | 1 | $ 186.11 | ||
| 16 | 13711-94L00 Air Cleaner Element Assembly
SKU: 13711-94L00 Weight: 0.250000 Brand: Price: $ 20.49 |
Air Cleaner Element Assembly | 1 | $ 20.49 | ||
| 17 | 13812-94L00 Air Cleaner Cap
SKU: 13812-94L00 Weight: 0.250000 Brand: Price: $ 43.92 |
Air Cleaner Cap | 1 | $ 43.92 | ||
| 18 | 13813-94L00 Air Cleaner Seal
SKU: 13813-94L00 Weight: 0.250000 Brand: Price: $ 6.35 |
Air Cleaner Seal | 1 | $ 6.35 | ||
| 19 | 13815-94L00 Drain Cap
SKU: 13815-94L00 Weight: 0.062500 Brand: Price: $ 2.88 |
Drain Cap | 1 | $ 2.88 | ||
| 20 | 13816-94L00 Drain Cap Clip
SKU: 13816-94L00 Weight: 0.062500 Brand: Price: $ 2.30 |
Drain Cap Clip | 1 | $ 2.30 | ||
| 21 | 13817-94L00 Screw
SKU: 13817-94L00 Weight: 0.062500 Brand: Price: $ 2.55 |
Screw | 4 | $ 2.55 | ||
| 22 | 13841-94L00 Silencer Duct
SKU: 13841-94L00 Weight: 2.000000 Brand: Price: $ 57.54 |
Silencer Duct | 1 | $ 57.54 | ||
| 23 | 13820-94L00 Restrictor Holder
SKU: 13820-94L00 Weight: 0.250000 Brand: Price: $ 26.63 |
Restrictor Holder | 1 | $ 26.63 | ||
| 24 | 13851-94L00 Air Intake Seal
SKU: 13851-94L00 Weight: 0.125000 Brand: Price: $ 2.67 |
Air Intake Seal | 1 | $ 2.67 | ||
| 25 | 09116-06215 Bolt (6x30) w/Washer
SKU: 09116-06215 Weight: 0.060000 Brand: Price: $ 3.54 |
Bolt (6x30) w/Washer | 4 | $ 3.54 | ||
| 26 | 09169-06075 Washer
SKU: 09169-06075 Weight: 0.200000 Brand: Price: $ 3.19 |
Washer | 4 | $ 3.19 | ||
| 27 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 5 | $ 3.31 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
