Suzuki DF 25A Parts Listings
S/N 02504F-510001 to 02504F-51XXXX

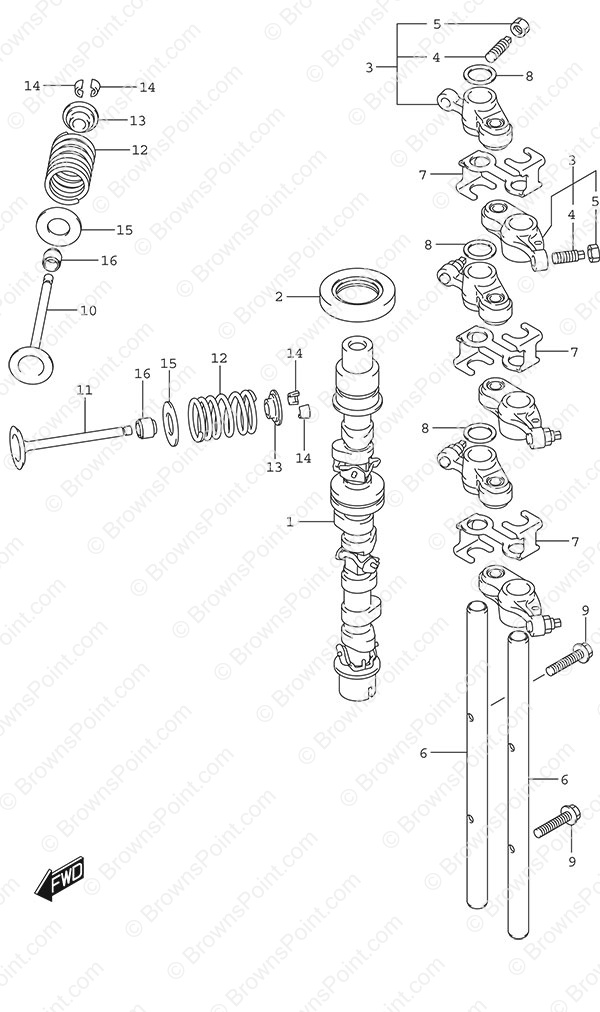

Fig. 121 - Camshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12700-94L00 Camshaft Assembly
SKU: 12700-94L00 Weight: 2.000000 Brand: Price: $ 353.05 |
Camshaft Assembly | 1 | $ 353.05 | ||
| 2 | 09283-27022 Oil Seal (27x46x6)
SKU: 09283-27022 Weight: 0.200000 Brand: Price: $ 12.41 |
Oil Seal (27x46x6) | 1 | $ 12.41 | ||
| 3 | 12840-94L00 Rocker Arm
SKU: 12840-94L00 Weight: 0.250000 Brand: Price: $ 36.18 |
Rocker Arm | 6 | $ 36.18 | ||
| 4 | 12842-09J00 Tappet Adjusting Screw
SKU: 12842-09J00 Weight: 0.200000 Brand: Price: $ 4.84 |
Tappet Adjusting Screw | 6 | $ 4.84 | ||
| 5 | 12843-27A00 Tappet Adjust Nut
SKU: 12843-27A00 Weight: 0.100000 Brand: Price: $ 3.11 |
Tappet Adjust Nut | 6 | $ 3.11 | ||
| 6 | 12861-94L00 Rocker Arm Shaft
SKU: 12861-94L00 Weight: 0.500000 Brand: Price: $ 59.22 |
Rocker Arm Shaft | 2 | $ 59.22 | ||
| 7 | 12862-94L00 Rocker Arm Retainer
SKU: 12862-94L00 Weight: 0.200000 Brand: Price: $ 3.35 |
Rocker Arm Retainer | 3 | $ 3.35 | ||
| 8 | 09164-12021 Washer
SKU: 09164-12021 Weight: 0.125000 Brand: Price: $ 2.04 |
Washer | 3 | $ 2.04 | ||
| 9 | 01547-0625A BOLT
SKU: 01547-0625A Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT | 2 | $ 2.04 | ||
| 10 | 12911-94L00 Intake Valve
SKU: 12911-94L00 Weight: 0.250000 Brand: Price: $ 21.52 |
Intake Valve | 3 | $ 21.52 | ||
| 11 | 12915-94L00 Exhaust Valve
SKU: 12915-94L00 Weight: 0.250000 Brand: Price: $ 23.91 |
Exhaust Valve | 3 | $ 23.91 | ||
| 12 | 12921-94L00 Valve Spring
SKU: 12921-94L00 Weight: 0.250000 Brand: Price: $ 5.07 |
Valve Spring | 6 | $ 5.07 | ||
| 14 | 12932-09G00 Valve Cotter
SKU: 12932-09G00 Weight: 0.060000 Brand: Price: $ 1.83 |
Valve Cotter | 12 | $ 1.83 | ||
| 15 | 12933-94L00 Valve Spring Seat
SKU: 12933-94L00 Weight: 0.200000 Brand: Price: $ 2.67 |
Valve Spring Seat | 6 | $ 2.67 | ||
| 16 | 09289-05008 Valve Stem Seal
SKU: 09289-05008 Weight: 0.060000 Brand: Price: $ 5.46 |
Valve Stem Seal | 6 | $ 5.46 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
