Suzuki DT 140 Parts Listings 1983 to 1985

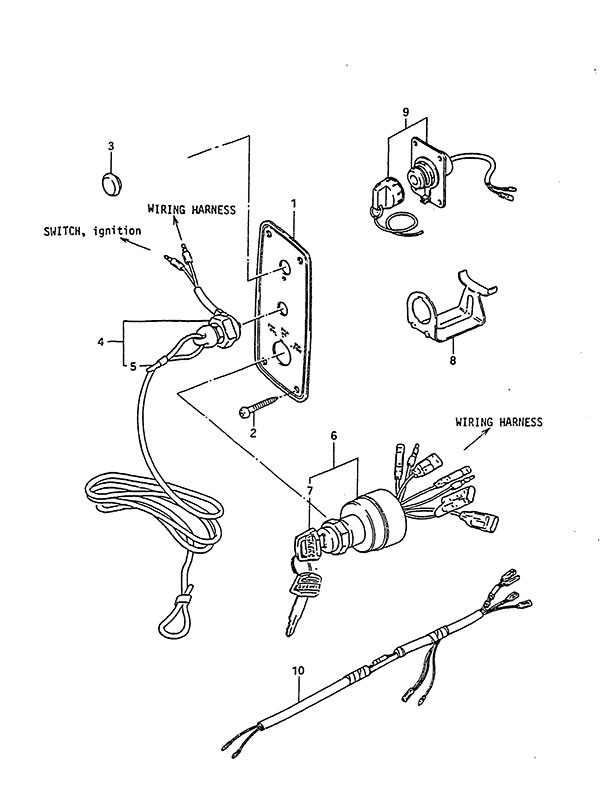

Fig. 38 - Opt: Ignition Switch
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37852-95550 Switch Panel (NLA)
SKU: 37852-95550 Weight: 0.100000 Brand: Price: $ 18.52 |
Switch Panel (NLA) | 1 | $ 18.52 | ||
| 2 | 03111-0512A SCREW
SKU: 03111-0512A Weight: 0.200000 Brand: Price: $ 1.48 |
SCREW | 4 | $ 1.48 | ||
| 3 | 09250-12006 Cap
SKU: 09250-12006 Weight: 0.060000 Brand: Price: $ 2.00 |
Cap | 1 | $ 2.00 | ||
| 4 | 37820-92E05 Emergency Stop Switch Assembly
SKU: 37820-92E05 Weight: 0.250000 Brand: Price: $ 42.80 |
Emergency Stop Switch Assembly | 1 | $ 42.80 | ||
| 5 | 37823-95251 Emergency Stop Switch Cap
SKU: 37823-95251 Weight: 0.060000 Brand: Price: $ 10.17 |
Emergency Stop Switch Cap | 1 | $ 10.17 | ||
| 6 | 37110-95551 Ignition Switch Assembly
SKU: 37110-95551 Weight: 0.500000 Brand: Price: $ 180.32 |
Ignition Switch Assembly | 1 | $ 180.32 | ||
| 7-1 | 37141-93300 (8511) Ignition Key
SKU: 37141-93300 Weight: 0.060000 Brand: Price: $ 7.24 |
(8511) Ignition Key | 1 | $ 7.24 | ||
| 7-2 | 37141-93310 (8512) Ignition Key (NLA)
SKU: 37141-93310 Weight: 0.060000 Brand: Price: $ 9.05 |
(8512) Ignition Key (NLA) | 1 | $ 9.05 | ||
| 7-3 | 37141-93320 (8513) Ignition Key (NLA)
SKU: 37141-93320 Weight: 0.060000 Brand: Price: $ 7.24 |
(8513) Ignition Key (NLA) | 1 | $ 7.24 | ||
| 7-4 | 37141-93330 (8611) Ignition Key (NLA)
SKU: 37141-93330 Weight: 0.060000 Brand: Price: $ 7.01 |
(8611) Ignition Key (NLA) | 1 | $ 7.01 | ||
| 7-5 | 37141-93340 Ignition Key (8612) (NLA)
SKU: 37141-93340 Weight: 0.060000 Brand: Price: $ 7.24 |
Ignition Key (8612) (NLA) | 1 | $ 7.24 | ||
| 7-6 | 37141-93350 (8613) Ignition Key
SKU: 37141-93350 Weight: 0.060000 Brand: Price: $ 7.46 |
(8613) Ignition Key | 1 | $ 7.46 | ||
| 8 | 37150-93350 Holder (NLA)
SKU: 37150-93350 Weight: 0.100000 Brand: Price: $ 14.31 |
Holder (NLA) | 1 | $ 14.31 | ||
| 9 | 34108-94500 Meter Switch Assembly (NLA)
SKU: 34108-94500 Weight: 0.100000 Brand: Price: $ 26.45 |
Meter Switch Assembly (NLA) | 1 | $ 26.45 | ||
| 10 | 34109-94500 Extension Lead (NLA)
SKU: 34109-94500 Weight: 2.000000 Brand: Price: $ 30.86 |
Extension Lead (NLA) | 1 | $ 30.86 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
