Suzuki DT 140 Parts Listings 1983 to 1985

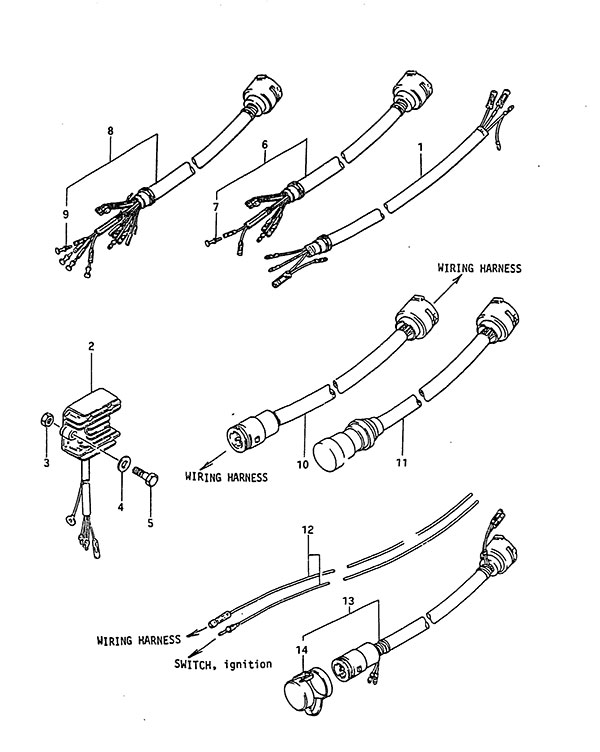

Fig. 37 - Opt: Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 36640-95500 Trim Relay Harness (NLA)
SKU: 36640-95500 Weight: 0.100000 Brand: Price: $ 48.99 |
Trim Relay Harness (NLA) | 1 | $ 48.99 | L:5000 | |
| 2 | 32800-95820 Rectifier Assembly (NLA)
SKU: 32800-95820 Weight: 0.500000 Brand: Price: $ 147.26 |
Rectifier Assembly (NLA) | 1 | $ 147.26 | ||
| 3 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 2 | $ 1.85 | ||
| 4 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 | ||
| 5 | 01500-06257 BOLT
SKU: 01500-06257 Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 | ||
| 6 | 36620-94510 Wiring Harness (NLA)
SKU: 36620-94510 Weight: 0.100000 Brand: Price: $ 72.77 |
Wiring Harness (NLA) | 1 | $ 72.77 | L:5000 | |
| 7 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 | ||
| 8 | 36620-94520 Wiring Harness (NLA)
SKU: 36620-94520 Weight: 0.100000 Brand: Price: $ 87.49 |
Wiring Harness (NLA) | 1 | $ 87.49 | ||
| 9 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 4 | $ 1.31 | ||
| 10 | 36620-95202 Wiring Harness (NLA)
SKU: 36620-95202 Weight: 0.100000 Brand: Price: $ 48.93 |
Wiring Harness (NLA) | 1 | $ 48.93 | L:5000 | |
| 11 | 36620-95203 Wiring Harness (NLA)
SKU: 36620-95203 Weight: 0.100000 Brand: Price: $ 50.94 |
Wiring Harness (NLA) | 1 | $ 50.94 | L:5000 | |
| 12 | 36820-95550 Neutral Switch Lead (NLA)
SKU: 36820-95550 Weight: 0.100000 Brand: Price: $ 5.73 |
Neutral Switch Lead (NLA) | 1 | $ 5.73 | L:700 | |
| 13 | 36620-95320 Wiring Harness Extension (NLA)
SKU: 36620-95320 Weight: 0.100000 Brand: Price: $ 77.10 |
Wiring Harness Extension (NLA) | 1 | $ 77.10 | ||
| 14 | 36631-94300 Cap
SKU: 36631-94300 Weight: 0.200000 Brand: Price: $ 4.20 |
Cap | 1 | $ 4.20 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
