Suzuki DT 140 Parts Listings 1983 to 1985

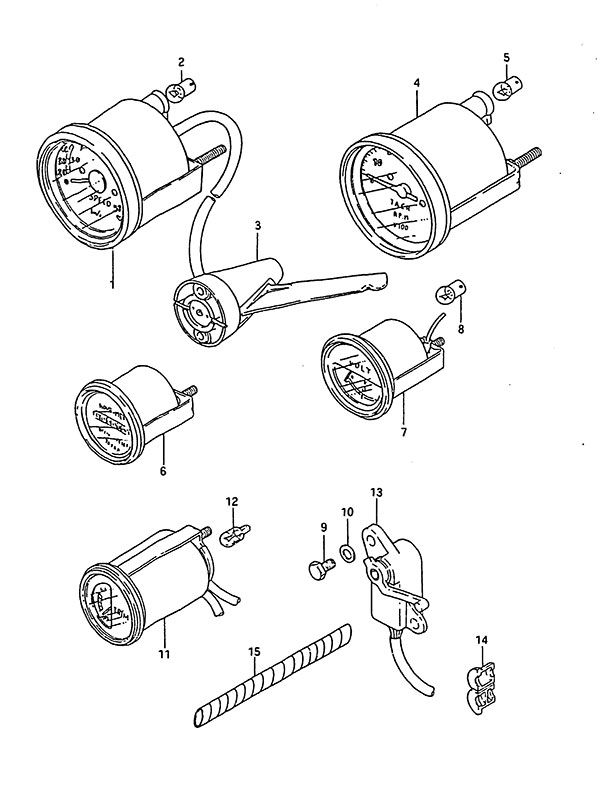

Fig. 36 - Opt: Meter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 34100-95501 Speedometer Assembly (NLA)
SKU: 34100-95501 Weight: 0.100000 Brand: Price: $ 0.00 |
Speedometer Assembly (NLA) | 1 | $ 0.00 | 1983 | |
| 1-2 | 34100-95502 Speedometer Assembly (NLA)
SKU: 34100-95502 Weight: 0.100000 Brand: Price: $ 133.73 |
Speedometer Assembly (NLA) | 1 | $ 133.73 | 1985 | |
| 1-3 | 34100-94500 Speedometer Assembly (NLA)
SKU: 34100-94500 Weight: 0.100000 Brand: Price: $ 133.73 |
Speedometer Assembly (NLA) | 1 | $ 133.73 | 1984 | |
| 1-4 | 34100-94501 Speedometer Assembly (NLA)
SKU: 34100-94501 Weight: 0.100000 Brand: Price: $ 133.73 |
Speedometer Assembly (NLA) | 1 | $ 133.73 | 1985 | |
| 2 | 09471-12001 Bulb (12v, 3.4w)
SKU: 09471-12001 Weight: 0.100000 Brand: Price: $ 1.41 |
Bulb (12v, 3.4w) | 1 | $ 1.41 | ||
| 3 | 34190-95500 Speedometer Sensor (NLA)
SKU: 34190-95500 Weight: 0.100000 Brand: Price: $ 42.08 |
Speedometer Sensor (NLA) | 1 | $ 42.08 | ||
| 4-1 | 34200-95500 Tachometer Assembly (NLA)
SKU: 34200-95500 Weight: 0.100000 Brand: Price: $ 0.00 |
Tachometer Assembly (NLA) | 1 | $ 0.00 | 1983 to 1984 | |
| 4-2 | 34200-95511 Tachometer Assembly (NLA)
SKU: 34200-95511 Weight: 0.100000 Brand: Price: $ 97.51 |
Tachometer Assembly (NLA) | 1 | $ 97.51 | 1985 | |
| 5 | 09471-12001 Bulb (12v, 3.4w)
SKU: 09471-12001 Weight: 0.100000 Brand: Price: $ 1.41 |
Bulb (12v, 3.4w) | 1 | $ 1.41 | ||
| 6-1 | 34500-95502 Hour Meter Assembly (NLA)
SKU: 34500-95502 Weight: 0.100000 Brand: Price: $ 109.02 |
Hour Meter Assembly (NLA) | 1 | $ 109.02 | ||
| 6-2 | 34500-95510 Hour Meter Assembly (NLA)
SKU: 34500-95510 Weight: 0.100000 Brand: Price: $ 76.69 |
Hour Meter Assembly (NLA) | 1 | $ 76.69 | ||
| 7-1 | 34600-95502 Voltage Meter Assembly (NLA)
SKU: 34600-95502 Weight: 0.100000 Brand: Price: $ 160.14 |
Voltage Meter Assembly (NLA) | 1 | $ 160.14 | 1983 to 1984 | |
| 7-2 | 34600-95503 Voltage Meter Assembly (NLA)
SKU: 34600-95503 Weight: 0.100000 Brand: Price: $ 160.14 |
Voltage Meter Assembly (NLA) | 1 | $ 160.14 | 1985 | |
| 8 | 09471-12001 Bulb (12v, 3.4w)
SKU: 09471-12001 Weight: 0.100000 Brand: Price: $ 1.41 |
Bulb (12v, 3.4w) | 1 | $ 1.41 | ||
| 9 | 09100-06113 Bolt (6x16)
SKU: 09100-06113 Weight: 0.200000 Brand: Price: $ 1.93 |
Bolt (6x16) | 2 | $ 1.93 | ||
| 10 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | ||
| 11-1 | 34800-95510 Trim Meter Assembly (NLA)
SKU: 34800-95510 Weight: 0.100000 Brand: Price: $ 0.00 |
Trim Meter Assembly (NLA) | 1 | $ 0.00 | 1983 | |
| 11-2 | 34800-95520 Trim Meter Assembly (NLA)
SKU: 34800-95520 Weight: 0.100000 Brand: Price: $ 44.43 |
Trim Meter Assembly (NLA) | 1 | $ 44.43 | 1984 | |
| 11-3 | 34800-95521 Trim Meter Assembly (NLA)
SKU: 34800-95521 Weight: 0.100000 Brand: Price: $ 44.43 |
Trim Meter Assembly (NLA) | 1 | $ 44.43 | 1985 | |
| 12 | 09471-12077 Bulb (12v, 1.7w)
SKU: 09471-12077 Weight: 0.100000 Brand: Price: $ 3.61 |
Bulb (12v, 1.7w) | 1 | $ 3.61 | ||
| 13 | 34804-94600 Trim Sender
SKU: 34804-94600 Weight: 1.000000 Brand: Price: $ 229.41 |
Trim Sender | 1 | $ 229.41 | ||
| 14 | 34803-94500 Trim Sensor Grommet (NLA)
SKU: 34803-94500 Weight: 0.100000 Brand: Price: $ 1.22 |
Trim Sensor Grommet (NLA) | 1 | $ 1.22 | ||
| 15 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
