Suzuki DT 140 Parts Listings 1983 to 1985

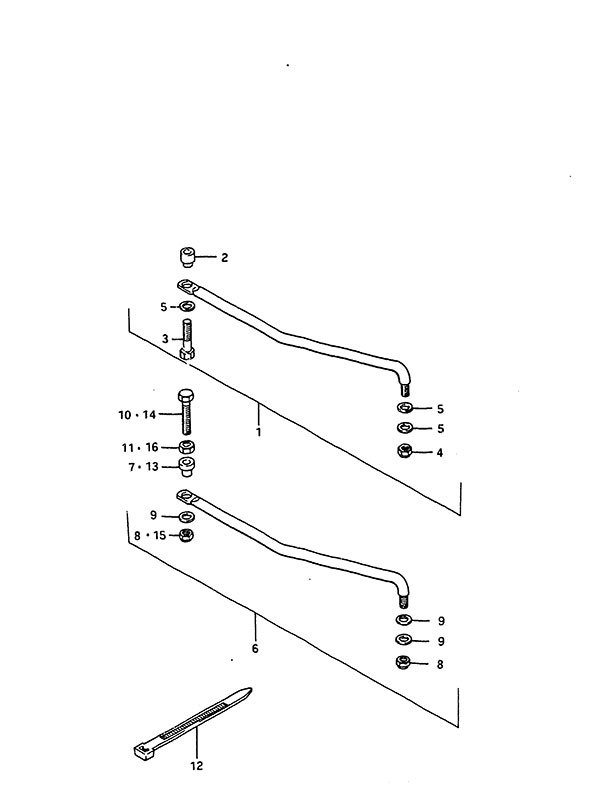

Fig. 35 - Drag Link
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67701-94500 Drag Link Assembly (NLA)
SKU: 67701-94500 Weight: 0.100000 Brand: Price: $ 33.25 |
Drag Link Assembly (NLA) | 1 | $ 33.25 | 1983 to 1984 | |
| 2 | 67721-99E00 Drag Link Spacer
SKU: 67721-99E00 Weight: 0.125000 Brand: Price: $ 11.89 |
Drag Link Spacer | 1 | $ 11.89 | ||
| 3 | 67725-99E10 Replaced by 67725-99E20
SKU: 67725-99E10 Weight: 0.060000 Brand: Price: $ 7.19 |
Replaced by 67725-99E20 | 1 | $ 7.19 | ||
| 4 | 67726-99E00 Lock Nut
SKU: 67726-99E00 Weight: 0.060000 Brand: Price: $ 8.24 |
Lock Nut | 1 | $ 8.24 | ||
| 5 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 3 | $ 1.63 | ||
| 6 | 67701-94510 Drag Link Assembly (NLA)
SKU: 67701-94510 Weight: 0.100000 Brand: Price: $ 33.70 |
Drag Link Assembly (NLA) | 1 | $ 33.70 | 1985 | |
| 7 | 67721-94510 Spacer (NLA)
SKU: 67721-94510 Weight: 0.100000 Brand: Price: $ 5.16 |
Spacer (NLA) | 1 | $ 5.16 | ||
| 8 | 67726-99E00 Lock Nut
SKU: 67726-99E00 Weight: 0.060000 Brand: Price: $ 8.24 |
Lock Nut | 2 | $ 8.24 | ||
| 9 | 67728-99E00 Washer
SKU: 67728-99E00 Weight: 0.060000 Brand: Price: $ 2.65 |
Washer | 3 | $ 2.65 | ||
| 10 | 67725-94510 Drag Link Bolt (NLA)
SKU: 67725-94510 Weight: 0.100000 Brand: Price: $ 4.85 |
Drag Link Bolt (NLA) | 1 | $ 4.85 | ||
| 11 | 67727-94510 Nut (NLA)
SKU: 67727-94510 Weight: 0.100000 Brand: Price: $ 2.65 |
Nut (NLA) | 1 | $ 2.65 | ||
| 12 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 13 | 67721-94510 Spacer (NLA)
SKU: 67721-94510 Weight: 0.100000 Brand: Price: $ 5.16 |
Spacer (NLA) | 1 | $ 5.16 | Optional | |
| 14 | 67725-94510 Drag Link Bolt (NLA)
SKU: 67725-94510 Weight: 0.100000 Brand: Price: $ 4.85 |
Drag Link Bolt (NLA) | 1 | $ 4.85 | Optional | |
| 15 | 67726-99E00 Lock Nut
SKU: 67726-99E00 Weight: 0.060000 Brand: Price: $ 8.24 |
Lock Nut | 1 | $ 8.24 | Optional | |
| 16 | 67727-94510 Nut (NLA)
SKU: 67727-94510 Weight: 0.100000 Brand: Price: $ 2.65 |
Nut (NLA) | 1 | $ 2.65 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
