Suzuki DT 140 Parts Listings 1985

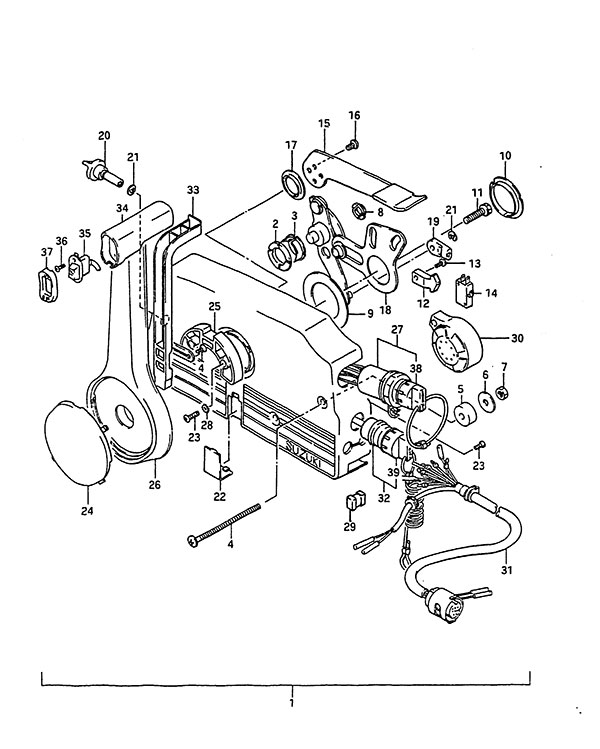

Fig. 34 - Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67200-95650 Remote Control Box (NLA)
SKU: 67200-95650 Weight: 0.100000 Brand: Price: $ 197.95 |
Remote Control Box (NLA) | 1 | $ 197.95 | ||
| 2 | 67232-95600 Bushing
SKU: 67232-95600 Weight: 0.100000 Brand: Price: $ 6.50 |
Bushing | 1 | $ 6.50 | ||
| 3 | 67232-95620 Bushing (NLA)
SKU: 67232-95620 Weight: 0.060000 Brand: Price: $ 4.06 |
Bushing (NLA) | 1 | $ 4.06 | ||
| 4 | 67296-95600 Screw
SKU: 67296-95600 Weight: 0.060000 Brand: Price: $ 5.83 |
Screw | 3 | $ 5.83 | ||
| 5 | 67294-95600 Spacer
SKU: 67294-95600 Weight: 0.060000 Brand: Price: $ 4.67 |
Spacer | 3 | $ 4.67 | ||
| 6 | 09160-06104 Washer (6.5x24x2)
SKU: 09160-06104 Weight: 0.062500 Brand: Price: $ 2.64 |
Washer (6.5x24x2) | 3 | $ 2.64 | ||
| 7 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 3 | $ 1.82 | ||
| 8 | 67232-95610 Bushing (NLA)
SKU: 67232-95610 Weight: 0.060000 Brand: Price: $ 4.11 |
Bushing (NLA) | 1 | $ 4.11 | ||
| 9 | 67253-95600 Washer (NLA)
SKU: 67253-95600 Weight: 0.100000 Brand: Price: $ 2.64 |
Washer (NLA) | 1 | $ 2.64 | ||
| 10 | 67252-95600 Bushing
SKU: 67252-95600 Weight: 0.060000 Brand: Price: $ 5.10 |
Bushing | 1 | $ 5.10 | ||
| 11 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 1 | $ 3.57 | ||
| 12 | 67238-87D00 Drive Gear
SKU: 67238-87D00 Weight: 0.100000 Brand: Price: $ 48.50 |
Drive Gear | 1 | $ 48.50 | ||
| 13 | 67296-94300 Screw (4x10)
SKU: 67296-94300 Weight: 0.060000 Brand: Price: $ 1.31 |
Screw (4x10) | 3 | $ 1.31 | ||
| 14 | 37721-94601 Neutral Switch Assembly
SKU: 37721-94601 Weight: 0.060000 Brand: Price: $ 26.93 |
Neutral Switch Assembly | 1 | $ 26.93 | ||
| 15 | 67241-95650 Free Throttle Lever (Silver) (NLA)
SKU: 67241-95650 Weight: 0.100000 Brand: Price: $ 15.19 |
Free Throttle Lever (Silver) (NLA) | 1 | $ 15.19 | ||
| 16 | 09126-05003 Screw (5x12)
SKU: 09126-05003 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (5x12) | 2 | $ 2.06 | ||
| 17 | 67243-95600 Bushing (NLA)
SKU: 67243-95600 Weight: 0.060000 Brand: Price: $ 3.16 |
Bushing (NLA) | 1 | $ 3.16 | ||
| 18 | 67220-95620 Plate Assembly
SKU: 67220-95620 Weight: 0.500000 Brand: Price: $ 96.86 |
Plate Assembly | 1 | $ 96.86 | ||
| 19 | 67275-95600 Cable End
SKU: 67275-95600 Weight: 0.060000 Brand: Price: $ 8.02 |
Cable End | 2 | $ 8.02 | ||
| 20 | 67223-95600 Brake Adjustment Knob
SKU: 67223-95600 Weight: 0.100000 Brand: Price: $ 13.52 |
Brake Adjustment Knob | 1 | $ 13.52 | ||
| 21 | 67292-94300 E Ring
SKU: 67292-94300 Weight: 0.060000 Brand: Price: $ 1.22 |
E Ring | 3 | $ 1.22 | ||
| 22 | 67267-95600 Wire Cover (Blue) (NLA)
SKU: 67267-95600 Weight: 0.100000 Brand: Price: $ 3.56 |
Wire Cover (Blue) (NLA) | 1 | $ 3.56 | ||
| 23 | 67296-95610 Screw
SKU: 67296-95610 Weight: 0.060000 Brand: Price: $ 2.85 |
Screw | 7 | $ 2.85 | ||
| 24 | 67257-95600 Lever Cap (Blue)
SKU: 67257-95600 Weight: 0.060000 Brand: Price: $ 7.38 |
Lever Cap (Blue) | 1 | $ 7.38 | ||
| 25 | 67256-95600 Neutral Lock Holder
SKU: 67256-95600 Weight: 0.060000 Brand: Price: $ 10.73 |
Neutral Lock Holder | 1 | $ 10.73 | ||
| 26 | 67251-95680 Handle Lever (Gray) (NLA)
SKU: 67251-95680 Weight: 1.000000 Brand: Price: $ 59.68 |
Handle Lever (Gray) (NLA) | 1 | $ 59.68 | ||
| 27 | 37110-99E02 Ignition Switch Assembly
SKU: 37110-99E02 Weight: 0.300000 Brand: Price: $ 96.58 |
Ignition Switch Assembly | 1 | $ 96.58 | ||
| 28 | 67297-95600 Washer
SKU: 67297-95600 Weight: 0.060000 Brand: Price: $ 2.96 |
Washer | 2 | $ 2.96 | ||
| 29 | 67273-95600 Spacer
SKU: 67273-95600 Weight: 0.060000 Brand: Price: $ 3.88 |
Spacer | 1 | $ 3.88 | ||
| 30 | 38500-92X50 Warning Buzzer
SKU: 38500-92X50 Weight: 0.260000 Brand: Price: $ 68.71 |
Warning Buzzer | 1 | $ 68.71 | ||
| 31 | 36620-94600 Wiring Harness (NLA)
SKU: 36620-94600 Weight: 0.100000 Brand: Price: $ 63.16 |
Wiring Harness (NLA) | 1 | $ 63.16 | ||
| 32 | 37820-92E05 Emergency Stop Switch Assembly
SKU: 37820-92E05 Weight: 0.250000 Brand: Price: $ 42.80 |
Emergency Stop Switch Assembly | 1 | $ 42.80 | ||
| 33 | 67255-95600 Neutral Lock Arm
SKU: 67255-95600 Weight: 0.060000 Brand: Price: $ 14.78 |
Neutral Lock Arm | 1 | $ 14.78 | ||
| 34 | 67261-95600 Handle Grip for PTT
SKU: 67261-95600 Weight: 0.250000 Brand: Price: $ 14.78 |
Handle Grip for PTT | 1 | $ 14.78 | ||
| 35 | 37860-94610 Trim Switch Assembly
SKU: 37860-94610 Weight: 0.100000 Brand: Price: $ 100.08 |
Trim Switch Assembly | 1 | $ 100.08 | ||
| 36 | 09139-02003 Screw (2x6)
SKU: 09139-02003 Weight: 0.060000 Brand: Price: $ 1.43 |
Screw (2x6) | 2 | $ 1.43 | ||
| 37 | 67263-95600 Grip Cap
SKU: 67263-95600 Weight: 0.200000 Brand: Price: $ 5.83 |
Grip Cap | 1 | $ 5.83 | ||
| 38-1 | 37141-94401 (101) Ignition Key
SKU: 37141-94401 Weight: 0.060000 Brand: Price: $ 25.43 |
(101) Ignition Key | 1 | $ 25.43 | ||
| 38-2 | 37141-94410 (102) Ignition Key
SKU: 37141-94410 Weight: 0.060000 Brand: Price: $ 22.62 |
(102) Ignition Key | 1 | $ 22.62 | ||
| 38-3 | 37141-94420 (103) Ignition Key*
SKU: 37141-94420 Weight: 0.060000 Brand: Price: $ 25.15 |
(103) Ignition Key* | 1 | $ 25.15 | ||
| 38-4 | 37141-94431 (104) Ignition Key
SKU: 37141-94431 Weight: 0.060000 Brand: Price: $ 21.86 |
(104) Ignition Key | 1 | $ 21.86 | ||
| 38-5 | 37141-94440 (105) Ignition Key
SKU: 37141-94440 Weight: 0.060000 Brand: Price: $ 25.15 |
(105) Ignition Key | 1 | $ 25.15 | ||
| 38-6 | 37141-94450 (106) Ignition Key*
SKU: 37141-94450 Weight: 0.060000 Brand: Price: $ 22.62 |
(106) Ignition Key* | 1 | $ 22.62 | ||
| 39 | 37823-94401 Emergency Stop Switch Cap
SKU: 37823-94401 Weight: 0.080000 Brand: Price: $ 16.35 |
Emergency Stop Switch Cap | 1 | $ 16.35 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
