Suzuki DT 140 Parts Listings 1984

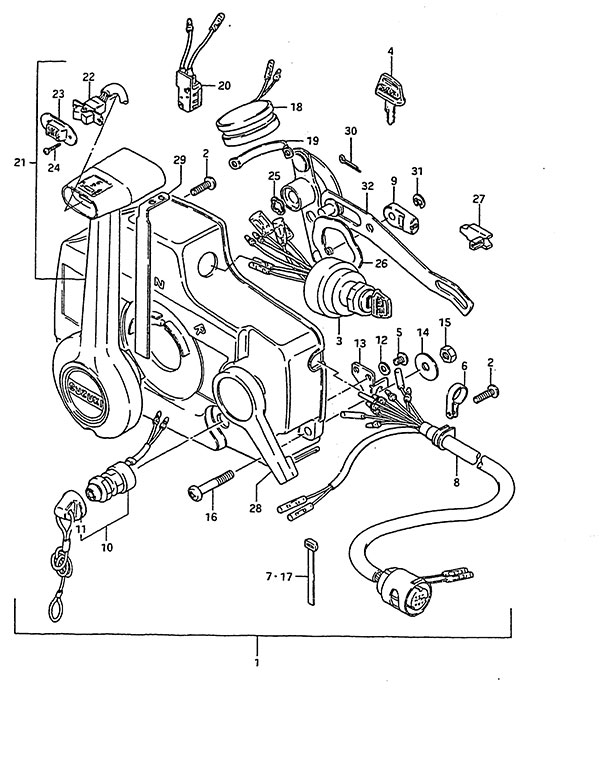

Fig. 33 - Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67200-95561 Remote Control Box (NLA)
SKU: 67200-95561 Weight: 0.100000 Brand: Price: $ 197.95 |
Remote Control Box (NLA) | 1 | $ 197.95 | ||
| 2 | 67296-94300 Screw (4x10)
SKU: 67296-94300 Weight: 0.060000 Brand: Price: $ 1.31 |
Screw (4x10) | 3 | $ 1.31 | ||
| 3 | 37110-95551 Ignition Switch Assembly
SKU: 37110-95551 Weight: 0.500000 Brand: Price: $ 180.32 |
Ignition Switch Assembly | 1 | $ 180.32 | ||
| 4-1 | 37141-93300 (8511) Ignition Key
SKU: 37141-93300 Weight: 0.060000 Brand: Price: $ 7.24 |
(8511) Ignition Key | 1 | $ 7.24 | ||
| 4-2 | 37141-93310 (8512) Ignition Key (NLA)
SKU: 37141-93310 Weight: 0.060000 Brand: Price: $ 9.05 |
(8512) Ignition Key (NLA) | 1 | $ 9.05 | ||
| 4-3 | 37141-93320 (8513) Ignition Key (NLA)
SKU: 37141-93320 Weight: 0.060000 Brand: Price: $ 7.24 |
(8513) Ignition Key (NLA) | 1 | $ 7.24 | ||
| 4-4 | 37141-93330 (8611) Ignition Key (NLA)
SKU: 37141-93330 Weight: 0.060000 Brand: Price: $ 7.01 |
(8611) Ignition Key (NLA) | 1 | $ 7.01 | ||
| 4-5 | 37141-93340 Ignition Key (8612) (NLA)
SKU: 37141-93340 Weight: 0.060000 Brand: Price: $ 7.24 |
Ignition Key (8612) (NLA) | 1 | $ 7.24 | ||
| 4-6 | 37141-93350 (8613) Ignition Key
SKU: 37141-93350 Weight: 0.060000 Brand: Price: $ 7.46 |
(8613) Ignition Key | 1 | $ 7.46 | ||
| 5 | 67296-94310 Screw
SKU: 67296-94310 Weight: 0.060000 Brand: Price: $ 1.85 |
Screw | 6 | $ 1.85 | ||
| 6 | 36622-94300 Clamp (NLA)
SKU: 36622-94300 Weight: 0.100000 Brand: Price: $ 1.05 |
Clamp (NLA) | 2 | $ 1.05 | ||
| 7 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 8 | 36620-94310 Wiring Harness (NLA)
SKU: 36620-94310 Weight: 0.100000 Brand: Price: $ 63.16 |
Wiring Harness (NLA) | 1 | $ 63.16 | ||
| 9 | 67275-95600 Cable End
SKU: 67275-95600 Weight: 0.060000 Brand: Price: $ 8.02 |
Cable End | 2 | $ 8.02 | ||
| 10 | 37820-92E05 Emergency Stop Switch Assembly
SKU: 37820-92E05 Weight: 0.250000 Brand: Price: $ 42.80 |
Emergency Stop Switch Assembly | 1 | $ 42.80 | ||
| 11 | 37823-95251 Emergency Stop Switch Cap
SKU: 37823-95251 Weight: 0.060000 Brand: Price: $ 10.17 |
Emergency Stop Switch Cap | 1 | $ 10.17 | ||
| 12 | 67288-94300 Washer (NLA)
SKU: 67288-94300 Weight: 0.100000 Brand: Price: $ 0.43 |
Washer (NLA) | 6 | $ 0.43 | ||
| 13 | 67271-94300 Cable Holder (NLA)
SKU: 67271-94300 Weight: 0.100000 Brand: Price: $ 12.76 |
Cable Holder (NLA) | 1 | $ 12.76 | ||
| 14 | 09160-06104 Washer (6.5x24x2)
SKU: 09160-06104 Weight: 0.062500 Brand: Price: $ 2.64 |
Washer (6.5x24x2) | 3 | $ 2.64 | ||
| 15 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 3 | $ 1.82 | ||
| 16 | 02112-06407 SCREW
SKU: 02112-06407 Weight: 0.200000 Brand: Price: $ 1.78 |
SCREW | 3 | $ 1.78 | ||
| 17 | 37119-94300 Band (NLA)
SKU: 37119-94300 Weight: 0.100000 Brand: Price: $ 0.49 |
Band (NLA) | 3 | $ 0.49 | ||
| 18 | 38500-95503 Warning Buzzer (NLA)
SKU: 38500-95503 Weight: 0.100000 Brand: Price: $ 18.53 |
Warning Buzzer (NLA) | 1 | $ 18.53 | ||
| 19 | 38501-95500 Warning Buzzer Band (NLA)
SKU: 38501-95500 Weight: 0.100000 Brand: Price: $ 4.01 |
Warning Buzzer Band (NLA) | 1 | $ 4.01 | ||
| 20 | 37721-94601 Neutral Switch Assembly
SKU: 37721-94601 Weight: 0.060000 Brand: Price: $ 26.93 |
Neutral Switch Assembly | 1 | $ 26.93 | ||
| 21 | 67250-95302 Lever Assembly (NLA)
SKU: 67250-95302 Weight: 0.100000 Brand: Price: $ 116.42 |
Lever Assembly (NLA) | 1 | $ 116.42 | ||
| 22 | 37860-95590 Trim Switch
SKU: 37860-95590 Weight: 0.080000 Brand: Price: $ 104.61 |
Trim Switch | 1 | $ 104.61 | ||
| 23 | 37869-95590 Trim Switch Cap
SKU: 37869-95590 Weight: 0.060000 Brand: Price: $ 9.04 |
Trim Switch Cap | 1 | $ 9.04 | ||
| 24 | 09139-02003 Screw (2x6)
SKU: 09139-02003 Weight: 0.060000 Brand: Price: $ 1.43 |
Screw (2x6) | 2 | $ 1.43 | ||
| 25 | 67232-94300 Bushing (NLA)
SKU: 67232-94300 Weight: 0.100000 Brand: Price: $ 1.51 |
Bushing (NLA) | 1 | $ 1.51 | ||
| 26 | 67252-94300 Bushing (NLA)
SKU: 67252-94300 Weight: 0.100000 Brand: Price: $ 3.72 |
Bushing (NLA) | 1 | $ 3.72 | ||
| 27 | 67214-94300 Actuator (NLA)
SKU: 67214-94300 Weight: 0.100000 Brand: Price: $ 2.42 |
Actuator (NLA) | 1 | $ 2.42 | ||
| 28 | 67241-94300 Throttle Lever (NLA)
SKU: 67241-94300 Weight: 0.100000 Brand: Price: $ 13.91 |
Throttle Lever (NLA) | 1 | $ 13.91 | ||
| 29 | 67255-94300 Neutral Lock Arm (NLA)
SKU: 67255-94300 Weight: 0.100000 Brand: Price: $ 8.98 |
Neutral Lock Arm (NLA) | 1 | $ 8.98 | ||
| 30 | 67293-94300 Pin (NLA)
SKU: 67293-94300 Weight: 0.100000 Brand: Price: $ 1.34 |
Pin (NLA) | 1 | $ 1.34 | ||
| 31 | 67292-94300 E Ring
SKU: 67292-94300 Weight: 0.060000 Brand: Price: $ 1.22 |
E Ring | 3 | $ 1.22 | ||
| 32 | 67220-94300 Plate Assembly (NLA)
SKU: 67220-94300 Weight: 0.100000 Brand: Price: $ 64.75 |
Plate Assembly (NLA) | 1 | $ 64.75 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
