Suzuki DT 140 Parts Listings 1983

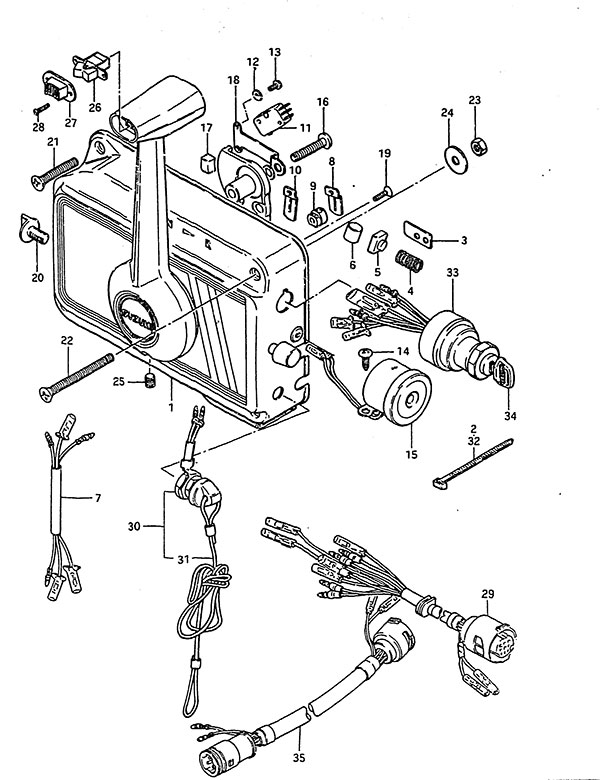

Fig. 32 - Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67200-94520 Remote Control Box (NLA)
SKU: 67200-94520 Weight: 0.100000 Brand: Price: $ 0.00 |
Remote Control Box (NLA) | 1 | $ 0.00 | ||
| 2 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 3 | $ 4.73 | ||
| 3 | 67271-95500 Plate (NLA)
SKU: 67271-95500 Weight: 0.100000 Brand: Price: $ 1.11 |
Plate (NLA) | 2 | $ 1.11 | ||
| 4 | 67255-95500 Spring (NLA)
SKU: 67255-95500 Weight: 0.100000 Brand: Price: $ 1.17 |
Spring (NLA) | 1 | $ 1.17 | ||
| 5 | 67254-95500 Bushing (NLA)
SKU: 67254-95500 Weight: 0.100000 Brand: Price: $ 2.59 |
Bushing (NLA) | 1 | $ 2.59 | ||
| 6 | 67253-95500 Roller (NLA)
SKU: 67253-95500 Weight: 0.100000 Brand: Price: $ 3.23 |
Roller (NLA) | 1 | $ 3.23 | ||
| 7 | 37863-95501 Trim Cord (NLA)
SKU: 37863-95501 Weight: 0.100000 Brand: Price: $ 12.96 |
Trim Cord (NLA) | 1 | $ 12.96 | ||
| 8 | 67274-95500 Throttle Retainer (NLA)
SKU: 67274-95500 Weight: 0.100000 Brand: Price: $ 3.20 |
Throttle Retainer (NLA) | 1 | $ 3.20 | ||
| 9 | 67275-95500 Trunion (NLA)
SKU: 67275-95500 Weight: 0.100000 Brand: Price: $ 10.01 |
Trunion (NLA) | 2 | $ 10.01 | ||
| 10 | 67272-95500 CLutch Retainer (NLA)
SKU: 67272-95500 Weight: 0.100000 Brand: Price: $ 2.74 |
CLutch Retainer (NLA) | 1 | $ 2.74 | ||
| 11 | 37721-94601 Neutral Switch Assembly
SKU: 37721-94601 Weight: 0.060000 Brand: Price: $ 26.93 |
Neutral Switch Assembly | 1 | $ 26.93 | ||
| 12 | 08323-31058 Lock Washer
SKU: 08323-31058 Weight: 0.125000 Brand: Price: $ 1.05 |
Lock Washer | 9 | $ 1.05 | ||
| 13 | 02112-05107 5 X 10 CROSS SC
SKU: 02112-05107 Weight: 0.060000 Brand: Price: $ 1.44 |
5 X 10 CROSS SC | 9 | $ 1.44 | ||
| 14 | 03141-0516A SCREW
SKU: 03141-0516A Weight: 0.200000 Brand: Price: $ 1.43 |
SCREW | 2 | $ 1.43 | ||
| 15 | 38500-92X50 Warning Buzzer
SKU: 38500-92X50 Weight: 0.260000 Brand: Price: $ 68.71 |
Warning Buzzer | 1 | $ 68.71 | ||
| 16 | 02112-06357 SCREW 6 X 35
SKU: 02112-06357 Weight: 0.125000 Brand: Price: $ 1.78 |
SCREW 6 X 35 | 1 | $ 1.78 | ||
| 17 | 67234-95500 Shoe (NLA)
SKU: 67234-95500 Weight: 0.100000 Brand: Price: $ 4.11 |
Shoe (NLA) | 1 | $ 4.11 | ||
| 18 | 67233-95500 Retainer (NLA)
SKU: 67233-95500 Weight: 0.100000 Brand: Price: $ 1.85 |
Retainer (NLA) | 1 | $ 1.85 | ||
| 19 | 02122-0412A SCREW
SKU: 02122-0412A Weight: 0.125000 Brand: Price: $ 1.93 |
SCREW | 4 | $ 1.93 | ||
| 20 | 67232-95500 Brake Knob (NLA)
SKU: 67232-95500 Weight: 0.100000 Brand: Price: $ 3.33 |
Brake Knob (NLA) | 1 | $ 3.33 | ||
| 21 | 02132-06408 Screw (NLA)
SKU: 02132-06408 Weight: 0.100000 Brand: Price: $ 0.47 |
Screw (NLA) | 1 | $ 0.47 | ||
| 22 | 02132-06758 Screw (NLA)
SKU: 02132-06758 Weight: 0.100000 Brand: Price: $ 0.94 |
Screw (NLA) | 3 | $ 0.94 | ||
| 23 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 4 | $ 1.85 | ||
| 24 | 09160-06104 Washer (6.5x24x2)
SKU: 09160-06104 Weight: 0.062500 Brand: Price: $ 2.64 |
Washer (6.5x24x2) | 4 | $ 2.64 | ||
| 25 | 67249-95500 Screw (NLA)
SKU: 67249-95500 Weight: 0.100000 Brand: Price: $ 2.87 |
Screw (NLA) | 1 | $ 2.87 | ||
| 26 | 37860-95501 Trim Switch (NLA)
SKU: 37860-95501 Weight: 0.100000 Brand: Price: $ 64.75 |
Trim Switch (NLA) | 1 | $ 64.75 | ||
| 27 | 37869-95590 Trim Switch Cap
SKU: 37869-95590 Weight: 0.060000 Brand: Price: $ 9.04 |
Trim Switch Cap | 1 | $ 9.04 | ||
| 28 | 09139-02003 Screw (2x6)
SKU: 09139-02003 Weight: 0.060000 Brand: Price: $ 1.43 |
Screw (2x6) | 2 | $ 1.43 | ||
| 29 | 36620-94310 Wiring Harness (NLA)
SKU: 36620-94310 Weight: 0.100000 Brand: Price: $ 63.16 |
Wiring Harness (NLA) | 1 | $ 63.16 | ||
| 30 | 37820-92E05 Emergency Stop Switch Assembly
SKU: 37820-92E05 Weight: 0.250000 Brand: Price: $ 42.80 |
Emergency Stop Switch Assembly | 1 | $ 42.80 | ||
| 31 | 37823-95251 Emergency Stop Switch Cap
SKU: 37823-95251 Weight: 0.060000 Brand: Price: $ 10.17 |
Emergency Stop Switch Cap | 1 | $ 10.17 | ||
| 32 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 33 | 37110-95551 Ignition Switch Assembly
SKU: 37110-95551 Weight: 0.500000 Brand: Price: $ 180.32 |
Ignition Switch Assembly | 1 | $ 180.32 | ||
| 34-1 | 37141-93300 (8511) Ignition Key
SKU: 37141-93300 Weight: 0.060000 Brand: Price: $ 7.24 |
(8511) Ignition Key | 1 | $ 7.24 | ||
| 34-2 | 37141-93310 (8512) Ignition Key (NLA)
SKU: 37141-93310 Weight: 0.060000 Brand: Price: $ 9.05 |
(8512) Ignition Key (NLA) | 1 | $ 9.05 | ||
| 34-3 | 37141-93320 (8513) Ignition Key (NLA)
SKU: 37141-93320 Weight: 0.060000 Brand: Price: $ 7.24 |
(8513) Ignition Key (NLA) | 1 | $ 7.24 | ||
| 34-4 | 37141-93330 (8611) Ignition Key (NLA)
SKU: 37141-93330 Weight: 0.060000 Brand: Price: $ 7.01 |
(8611) Ignition Key (NLA) | 1 | $ 7.01 | ||
| 34-5 | 37141-93340 Ignition Key (8612) (NLA)
SKU: 37141-93340 Weight: 0.060000 Brand: Price: $ 7.24 |
Ignition Key (8612) (NLA) | 1 | $ 7.24 | ||
| 34-6 | 37141-93350 (8613) Ignition Key
SKU: 37141-93350 Weight: 0.060000 Brand: Price: $ 7.46 |
(8613) Ignition Key | 1 | $ 7.46 | ||
| 35 | 36620-95320 Wiring Harness Extension (NLA)
SKU: 36620-95320 Weight: 0.100000 Brand: Price: $ 77.10 |
Wiring Harness Extension (NLA) | 1 | $ 77.10 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
