Suzuki DT 140 Parts Listings 1983 to 1985

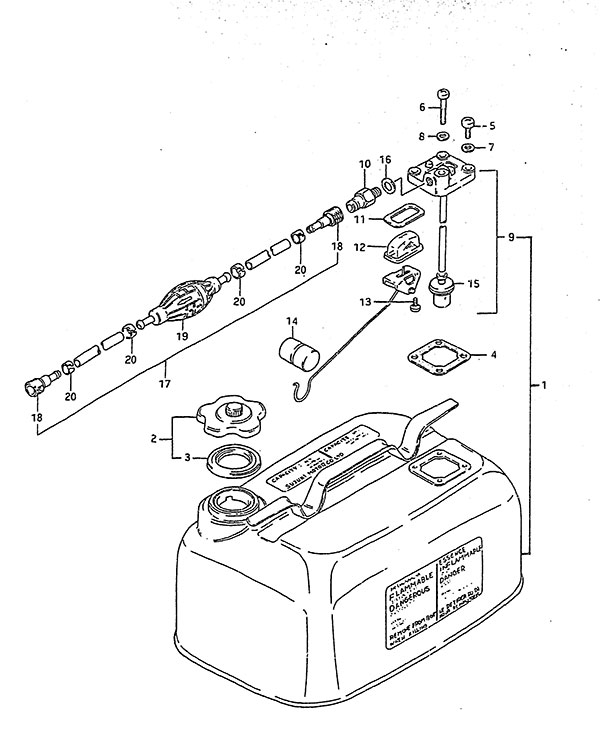

Fig. 31 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 65000-95200 Fuel Tank Set (NLA)
SKU: 65000-95200 Weight: 0.100000 Brand: Price: $ 52.92 |
Fuel Tank Set (NLA) | 1 | $ 52.92 | 1983 | |
| 1-2 | 65000-95201 Fuel Tank Set (NLA)
SKU: 65000-95201 Weight: 0.100000 Brand: Price: $ 73.64 |
Fuel Tank Set (NLA) | 1 | $ 73.64 | 1984 to 1985 | |
| 2 | 65510-92D00 Fuel Tank Cap Assembly
SKU: 65510-92D00 Weight: 0.250000 Brand: Price: $ 28.84 |
Fuel Tank Cap Assembly | 1 | $ 28.84 | ||
| 3 | 65561-98502 Tank Cap Gasket (NLA)
SKU: 65561-98502 Weight: 0.100000 Brand: Price: $ 2.32 |
Tank Cap Gasket (NLA) | 1 | $ 2.32 | ||
| 4 | 65871-93010 Fuel Gauge Gasket
SKU: 65871-93010 Weight: 0.060000 Brand: Price: $ 2.49 |
Fuel Gauge Gasket | 1 | $ 2.49 | ||
| 5 | 02112-06167 SCREW 6X16
SKU: 02112-06167 Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW 6X16 | 3 | $ 1.44 | ||
| 6 | 02112-06407 SCREW
SKU: 02112-06407 Weight: 0.200000 Brand: Price: $ 1.78 |
SCREW | 1 | $ 1.78 | ||
| 7-1 | 09168-06004 Washer
SKU: 09168-06004 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 3 | $ 1.44 | 1983 to 1984 | |
| 7-2 | 09168-06004 Washer
SKU: 09168-06004 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 4 | $ 1.44 | 1985 | |
| 8 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 1 | $ 1.85 | 1983 to 1984 | |
| 9-1 | 65850-95504 Fuel Gauge Assembly (NLA)
SKU: 65850-95504 Weight: 0.100000 Brand: Price: $ 0.00 |
Fuel Gauge Assembly (NLA) | 1 | $ 0.00 | 1983 | |
| 9-2 | 65850-95505 Fuel Gauge Assembly (NLA)
SKU: 65850-95505 Weight: 0.100000 Brand: Price: $ 0.00 |
Fuel Gauge Assembly (NLA) | 1 | $ 0.00 | 1984 | |
| 9-3 | 65850-95506 Fuel Gauge Assembly (NLA)
SKU: 65850-95506 Weight: 0.100000 Brand: Price: $ 36.27 |
Fuel Gauge Assembly (NLA) | 1 | $ 36.27 | 1985 | |
| 10 | 65740-95501 Fuel Tank Connector (13mm)
SKU: 65740-95501 Weight: 0.100000 Brand: Price: $ 26.29 |
Fuel Tank Connector (13mm) | 1 | $ 26.29 | ||
| 11 | 65854-93001 Gasket (NLA)
SKU: 65854-93001 Weight: 0.060000 Brand: Price: $ 2.34 |
Gasket (NLA) | 1 | $ 2.34 | ||
| 12 | 65853-93001 Fuel Strainer
SKU: 65853-93001 Weight: 0.060000 Brand: Price: $ 3.17 |
Fuel Strainer | 1 | $ 3.17 | ||
| 13 | 02112-04107 SCREW
SKU: 02112-04107 Weight: 0.060000 Brand: Price: $ 1.57 |
SCREW | 2 | $ 1.57 | ||
| 14 | 65864-95200 Float (NLA)
SKU: 65864-95200 Weight: 0.100000 Brand: Price: $ 4.01 |
Float (NLA) | 1 | $ 4.01 | ||
| 15 | 65830-95500 Fuel Outlet Filter
SKU: 65830-95500 Weight: 0.100000 Brand: Price: $ 12.66 |
Fuel Outlet Filter | 1 | $ 12.66 | ||
| 16 | 09168-12001 Gasket
SKU: 09168-12001 Weight: 0.200000 Brand: Price: $ 1.46 |
Gasket | 1 | $ 1.46 | ||
| 17 | 65700-95518 Fuel Hose (NLA)
SKU: 65700-95518 Weight: 2.000000 Brand: Price: $ 265.93 |
Fuel Hose (NLA) | 1 | $ 265.93 | ||
| 18 | 65750-95501 Fuel Hose Connector (13mm)
SKU: 65750-95501 Weight: 0.120000 Brand: Price: $ 32.61 |
Fuel Hose Connector (13mm) | 2 | $ 32.61 | ||
| 19 | 65770-95501 Squeeze Pump (NLA)
SKU: 65770-95501 Weight: 0.100000 Brand: Price: $ 7.07 |
Squeeze Pump (NLA) | 1 | $ 7.07 | ||
| 20 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 4 | $ 2.90 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
