Suzuki DT 140 Parts Listings 1983 to 1985

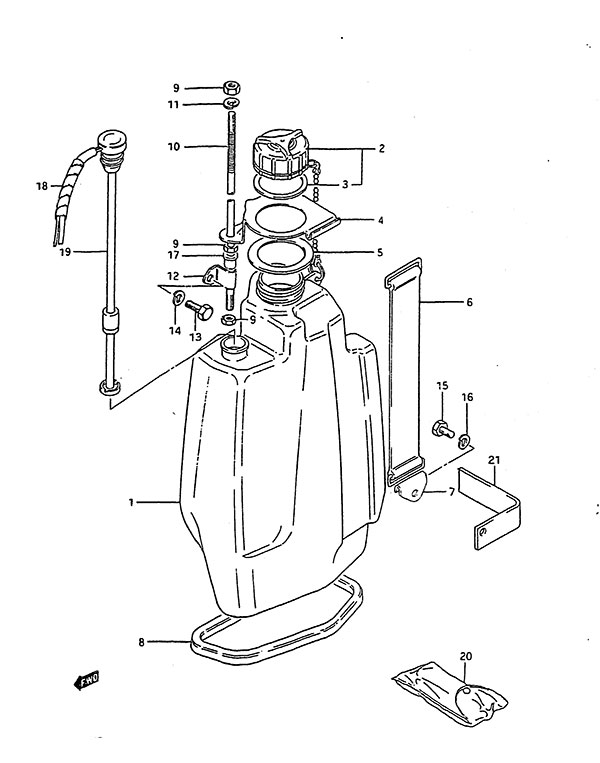

Fig. 30 - Oil Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 69110-94500 Oil Tank (NLA)
SKU: 69110-94500 Weight: 0.100000 Brand: Price: $ 59.68 |
Oil Tank (NLA) | 1 | $ 59.68 | ||
| 2 | 69200-94510 Suzuki Oil Tank Cap
SKU: 69200-94510 Weight: 0.120000 Brand: Price: $ 30.84 |
Suzuki Oil Tank Cap | 1 | $ 30.84 | ||
| 3 | 69241-94500 Oil Tank Cap Gasket
SKU: 69241-94500 Weight: 0.060000 Brand: Price: $ 3.02 |
Oil Tank Cap Gasket | 1 | $ 3.02 | ||
| 4 | 69311-94500 Oil Tank Support (NLA)
SKU: 69311-94500 Weight: 0.100000 Brand: Price: $ 1.31 |
Oil Tank Support (NLA) | 1 | $ 1.31 | ||
| 5 | 09320-43001 Upper Cushion (NLA)
SKU: 09320-43001 Weight: 0.100000 Brand: Price: $ 1.73 |
Upper Cushion (NLA) | 1 | $ 1.73 | ||
| 6 | 09462-00074 Band (NLA)
SKU: 09462-00074 Weight: 0.100000 Brand: Price: $ 4.43 |
Band (NLA) | 1 | $ 4.43 | ||
| 7 | 69321-94500 Clamp (NLA)
SKU: 69321-94500 Weight: 0.100000 Brand: Price: $ 0.87 |
Clamp (NLA) | 1 | $ 0.87 | ||
| 8 | 09329-02003 Lower Cushion (NLA)
SKU: 09329-02003 Weight: 0.100000 Brand: Price: $ 5.05 |
Lower Cushion (NLA) | 1 | $ 5.05 | ||
| 9 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 3 | $ 1.82 | ||
| 10-1 | 69331-94501 Support Rod (NLA)
SKU: 69331-94501 Weight: 0.100000 Brand: Price: $ 5.13 |
Support Rod (NLA) | 1 | $ 5.13 | 1983 | |
| 10-2 | 69331-94503 Support Rod (NLA)
SKU: 69331-94503 Weight: 0.100000 Brand: Price: $ 3.57 |
Support Rod (NLA) | 1 | $ 3.57 | 1984 to 1985 | |
| 11 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 1 | $ 1.49 | ||
| 12 | 69322-94501 Clamp (NLA)
SKU: 69322-94501 Weight: 0.100000 Brand: Price: $ 2.74 |
Clamp (NLA) | 1 | $ 2.74 | ||
| 13 | 01500-0616A BOLT
SKU: 01500-0616A Weight: 0.200000 Brand: Price: $ 1.78 |
BOLT | 1 | $ 1.78 | ||
| 14 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 15-1 | 01500-06127 BOLT
SKU: 01500-06127 Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 1 | $ 1.97 | 1983 to 1984 | |
| 15-2 | 01500-06167 BOLT
SKU: 01500-06167 Weight: 0.125000 Brand: Price: $ 1.97 |
BOLT | 1 | $ 1.97 | 1985 | |
| 16 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 17 | 69323-94500 Cushion (NLA)
SKU: 69323-94500 Weight: 0.100000 Brand: Price: $ 2.74 |
Cushion (NLA) | 1 | $ 2.74 | ||
| 18 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | ||
| 19-1 | 34860-94502 Oil Level Switch (NLA)
SKU: 34860-94502 Weight: 0.100000 Brand: Price: $ 0.00 |
Oil Level Switch (NLA) | 1 | $ 0.00 | 1983 | |
| 19-2 | 34860-94510 Oil Level Switch (NLA)
SKU: 34860-94510 Weight: 0.100000 Brand: Price: $ 19.35 |
Oil Level Switch (NLA) | 1 | $ 19.35 | 1984 to 1985 | |
| 20 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 | ||
| 21 | 69341-94500 Oil Tank Stopper (NLA)
SKU: 69341-94500 Weight: 0.100000 Brand: Price: $ 2.18 |
Oil Tank Stopper (NLA) | 1 | $ 2.18 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
