Suzuki DT 140 Parts Listings 1983 to 1985

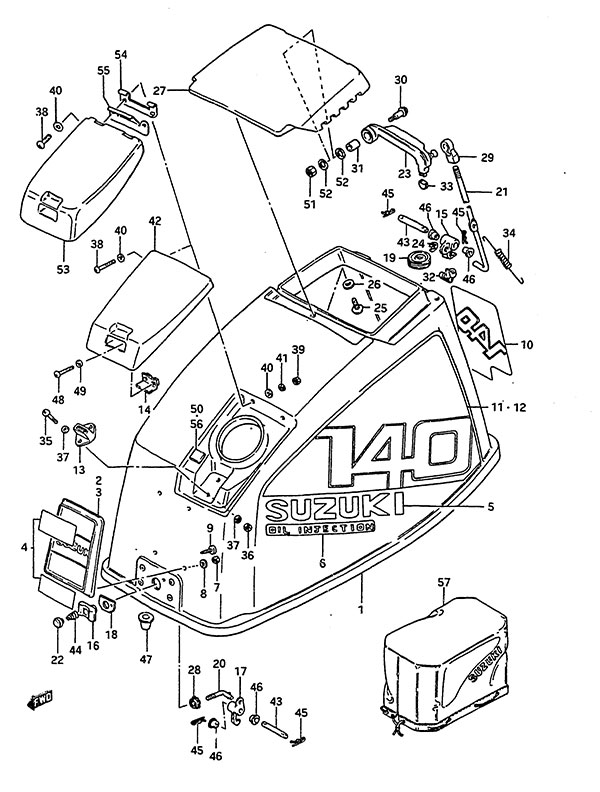

Fig. 29 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61400-94890-02M Engine Cover Set (NLA)
SKU: 61400-94890-02M Weight: 50.000000 Brand: Price: $ 0.00 |
Engine Cover Set (NLA) | 1 | $ 0.00 | 1983 | |
| 1-2 | 61400-94891-02M Engine Cover Set (NLA)
SKU: 61400-94891-02M Weight: 50.000000 Brand: Price: $ 326.18 |
Engine Cover Set (NLA) | 1 | $ 326.18 | 1984 to 1985 | |
| 2 | 61421-94421-019 Front Emblem
SKU: 61421-94421-019 Weight: 0.200000 Brand: Price: $ 45.77 |
Front Emblem | 1 | $ 45.77 | 1983 to 1984 | |
| 3 | 61421-94421-019 Front Emblem
SKU: 61421-94421-019 Weight: 0.200000 Brand: Price: $ 45.77 |
Front Emblem | 1 | $ 45.77 | 1985 | |
| 4 | 61422-95561 Front Emblem Mark (NLA)
SKU: 61422-95561 Weight: 0.100000 Brand: Price: $ 8.60 |
Front Emblem Mark (NLA) | 1 | $ 8.60 | ||
| 5 | 61441-94560 Suzuki Emblem (NLA)
SKU: 61441-94560 Weight: 0.060000 Brand: Price: $ 12.77 |
Suzuki Emblem (NLA) | 2 | $ 12.77 | ||
| 6 | 61442-94600-019 Oil Injection Mark (NLA)
SKU: 61442-94600-019 Weight: 0.062500 Brand: Price: $ 4.27 |
Oil Injection Mark (NLA) | 2 | $ 4.27 | ||
| 7 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 4 | $ 2.65 | 1983 to 1984 | |
| 8 | 09160-05024 Washer (5.5x16x1.5)
SKU: 09160-05024 Weight: 0.060000 Brand: Price: $ 1.54 |
Washer (5.5x16x1.5) | 4 | $ 1.54 | 1983 to 1984 | |
| 9 | 03241-0510A SCREW
SKU: 03241-0510A Weight: 0.200000 Brand: Price: $ 1.27 |
SCREW | 4 | $ 1.27 | 1985 | |
| 10 | 61435-94570 Rear Emblem (NLA)
SKU: 61435-94570 Weight: 0.100000 Brand: Price: $ 31.45 |
Rear Emblem (NLA) | 1 | $ 31.45 | ||
| 11 | 61443-94570 Starboard Stripe (NLA)
SKU: 61443-94570 Weight: 0.100000 Brand: Price: $ 71.19 |
Starboard Stripe (NLA) | 1 | $ 71.19 | ||
| 12 | 61453-94570 Port Stripe (NLA)
SKU: 61453-94570 Weight: 0.100000 Brand: Price: $ 71.19 |
Port Stripe (NLA) | 1 | $ 71.19 | ||
| 13 | 61540-94500 Oil Fill Lid Catch Magnet (NLA)
SKU: 61540-94500 Weight: 0.100000 Brand: Price: $ 17.47 |
Oil Fill Lid Catch Magnet (NLA) | 1 | $ 17.47 | S/N 304382 Older | |
| 14 | 61551-94502 Magnetic Catch Retainer (NLA)
SKU: 61551-94502 Weight: 0.100000 Brand: Price: $ 3.87 |
Magnetic Catch Retainer (NLA) | 1 | $ 3.87 | S/N 304382 Older | |
| 15 | 61641-94501 Engine Cover Hook (NLA)
SKU: 61641-94501 Weight: 0.100000 Brand: Price: $ 24.91 |
Engine Cover Hook (NLA) | 1 | $ 24.91 | ||
| 16 | 61651-95501 Hook Spring Holder (NLA)
SKU: 61651-95501 Weight: 0.100000 Brand: Price: $ 2.73 |
Hook Spring Holder (NLA) | 1 | $ 2.73 | ||
| 17 | 61641-95500 Release Hook (NLA)
SKU: 61641-95500 Weight: 0.100000 Brand: Price: $ 19.35 |
Release Hook (NLA) | 1 | $ 19.35 | ||
| 18 | 61652-95500 Hook Spring Holder Packing (NLA)
SKU: 61652-95500 Weight: 0.100000 Brand: Price: $ 5.50 |
Hook Spring Holder Packing (NLA) | 1 | $ 5.50 | ||
| 19 | 61652-94501 Grommet (NLA)
SKU: 61652-94501 Weight: 0.100000 Brand: Price: $ 2.51 |
Grommet (NLA) | 1 | $ 2.51 | ||
| 20 | 61653-95501 Release Hook Shaft (NLA)
SKU: 61653-95501 Weight: 0.100000 Brand: Price: $ 8.30 |
Release Hook Shaft (NLA) | 1 | $ 8.30 | ||
| 21-1 | 61653-94501 Latch Release Rod (NLA)
SKU: 61653-94501 Weight: 0.100000 Brand: Price: $ 0.00 |
Latch Release Rod (NLA) | 1 | $ 0.00 | 1983 | |
| 21-2 | 61653-94502 Latch Release Rod (NLA)
SKU: 61653-94502 Weight: 0.100000 Brand: Price: $ 11.59 |
Latch Release Rod (NLA) | 1 | $ 11.59 | 1984 to 1985 | |
| 22 | 61660-95500 Hook Knob (NLA)
SKU: 61660-95500 Weight: 0.100000 Brand: Price: $ 3.11 |
Hook Knob (NLA) | 1 | $ 3.11 | ||
| 23-1 | 61661-94500 Lower Cover Latch Lever (NLA)
SKU: 61661-94500 Weight: 0.100000 Brand: Price: $ 20.29 |
Lower Cover Latch Lever (NLA) | 1 | $ 20.29 | 1983 | |
| 23-2 | 61661-94501 Lower Cover Latch Lever (NLA)
SKU: 61661-94501 Weight: 0.060000 Brand: Price: $ 23.52 |
Lower Cover Latch Lever (NLA) | 1 | $ 23.52 | 1984 to 1985 | |
| 24 | 09383-03001 E Ring
SKU: 09383-03001 Weight: 0.060000 Brand: Price: $ 0.81 |
E Ring | 1 | $ 0.81 | For Ref# 21-2 | |
| 25 | 03241-0616C SCREW
SKU: 03241-0616C Weight: 0.200000 Brand: Price: $ 2.72 |
SCREW | 4 | $ 2.72 | ||
| 26 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 4 | $ 1.85 | ||
| 27 | 61431-94503-0ED Tilt Up Handle (NLA)
SKU: 61431-94503-0ED Weight: 2.000000 Brand: Price: $ 99.52 |
Tilt Up Handle (NLA) | 1 | $ 99.52 | ||
| 28 | 61654-95500 Nut (NLA)
SKU: 61654-95500 Weight: 0.100000 Brand: Price: $ 1.94 |
Nut (NLA) | 1 | $ 1.94 | ||
| 29 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 1 | $ 4.52 | ||
| 30 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | 1983 | |
| 31 | 09180-06097 Spacer
SKU: 09180-06097 Weight: 0.100000 Brand: Price: $ 5.74 |
Spacer | 1 | $ 5.74 | 1983 | |
| 32 | 09209-05017 Connector
SKU: 09209-05017 Weight: 0.060000 Brand: Price: $ 1.51 |
Connector | 1 | $ 1.51 | ||
| 33 | 09259-04001 Stopper (NLA)
SKU: 09259-04001 Weight: 0.100000 Brand: Price: $ 0.82 |
Stopper (NLA) | 1 | $ 0.82 | 1983 | |
| 34 | 09443-06040 Spring (NLA)
SKU: 09443-06040 Weight: 0.100000 Brand: Price: $ 2.07 |
Spring (NLA) | 1 | $ 2.07 | ||
| 35 | 09125-05074 Screw (5x16)
SKU: 09125-05074 Weight: 0.125000 Brand: Price: $ 2.10 |
Screw (5x16) | 2 | $ 2.10 | S/N 304382 Older | |
| 36 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | S/N 304382 Older | |
| 37 | 09160-05032 Washer (NLA)
SKU: 09160-05032 Weight: 0.100000 Brand: Price: $ 0.94 |
Washer (NLA) | 4 | $ 0.94 | S/N 304382 Older | |
| 38 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 2 | $ 2.06 | ||
| 39 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 40 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 4 | $ 1.70 | ||
| 41 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 42 | 61481-94504-0ED Oil Tank Filler Lid (NLA)
SKU: 61481-94504-0ED Weight: 0.400000 Brand: Price: $ 51.76 |
Oil Tank Filler Lid (NLA) | 1 | $ 51.76 | S/N 304382 Older Requires Ref# 54, 55 56 | |
| 43 | 61642-95500 Pin (NLA)
SKU: 61642-95500 Weight: 0.100000 Brand: Price: $ 5.21 |
Pin (NLA) | 2 | $ 5.21 | ||
| 44 | 09441-12001 Spring (SUS)
SKU: 09441-12001 Weight: 0.060000 Brand: Price: $ 3.07 |
Spring (SUS) | 1 | $ 3.07 | ||
| 45 | 09385-06003 Pin (NLA)
SKU: 09385-06003 Weight: 0.060000 Brand: Price: $ 1.21 |
Pin (NLA) | 4 | $ 1.21 | ||
| 46 | 09301-06005 Bushing (NLA)
SKU: 09301-06005 Weight: 0.060000 Brand: Price: $ 0.98 |
Bushing (NLA) | 4 | $ 0.98 | ||
| 47 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 4 | $ 4.06 | ||
| 48 | 02112-04087 SCREW 4X8
SKU: 02112-04087 Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW 4X8 | 2 | $ 1.11 | S/N 304382 Older | |
| 49 | 08322-01047 Washer
SKU: 08322-01047 Weight: 0.125000 Brand: Price: $ 1.87 |
Washer | 2 | $ 1.87 | S/N 304382 Newer | |
| 50 | 66511-78000 Oil Tank Filler Lid Pad (NLA)
SKU: 66511-78000 Weight: 0.100000 Brand: Price: $ 0.79 |
Oil Tank Filler Lid Pad (NLA) | 1 | $ 0.79 | S/N 304382 Newer | |
| 51 | 09140-06018 Nut (NLA)
SKU: 09140-06018 Weight: 0.100000 Brand: Price: $ 4.97 |
Nut (NLA) | 1 | $ 4.97 | 1983 | |
| 52 | 09160-06062 Washer (NLA)
SKU: 09160-06062 Weight: 0.060000 Brand: Price: $ 0.45 |
Washer (NLA) | 2 | $ 0.45 | 1983 | |
| 53 | 61481-94504-0ED Oil Tank Filler Lid (NLA)
SKU: 61481-94504-0ED Weight: 0.400000 Brand: Price: $ 51.76 |
Oil Tank Filler Lid (NLA) | 1 | $ 51.76 | S/N 304383 Newer | |
| 54 | 61482-94510 Oil Filler Lid Hinge
SKU: 61482-94510 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Hinge | 1 | $ 4.67 | S/N 304383 Newer | |
| 55 | 61485-94500 Oil Filler Lid Spring
SKU: 61485-94500 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Spring | 1 | $ 4.67 | S/N 304383 Newer | |
| 56 | 61544-94500 Oil Filler Pad
SKU: 61544-94500 Weight: 0.060000 Brand: Price: $ 1.76 |
Oil Filler Pad | 1 | $ 1.76 | S/N 304383 Newer | |
| 57 | 68110-94510 Weather Cover (NLA)
SKU: 68110-94510 Weight: 0.100000 Brand: Price: $ 54.75 |
Weather Cover (NLA) | 1 | $ 54.75 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
