Suzuki DT 140 Parts Listings 1983 to 1985

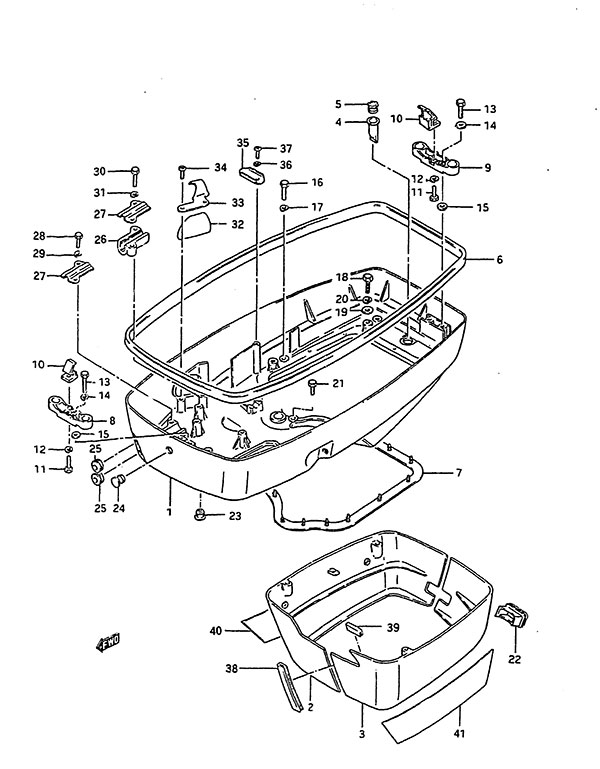

Fig. 28 - Lower Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61110-94507-02M Lower Cover (NLA)
SKU: 61110-94507-02M Weight: 0.100000 Brand: Price: $ 0.00 |
Lower Cover (NLA) | 1 | $ 0.00 | 1983 | |
| 1-2 | 61110-94508-02M Lower Cover (NLA)
SKU: 61110-94508-02M Weight: 0.100000 Brand: Price: $ 239.36 |
Lower Cover (NLA) | 1 | $ 239.36 | 1984 to 1985 | |
| 2 | 61131-94502-0ED Engine Holder Starboard Cover (NLA)
SKU: 61131-94502-0ED Weight: 2.000000 Brand: Price: $ 94.93 |
Engine Holder Starboard Cover (NLA) | 1 | $ 94.93 | ||
| 3 | 61141-94503-0ED Engine Holder Port Cover
SKU: 61141-94503-0ED Weight: 2.000000 Brand: Price: $ 80.94 |
Engine Holder Port Cover | 1 | $ 80.94 | ||
| 4-1 | 13873-20300 Drain Tube
SKU: 13873-20300 Weight: 0.200000 Brand: Price: $ 4.48 |
Drain Tube | 1 | $ 4.48 | 1983 | |
| 4-2 | 61139-94511 Drain Tube
SKU: 61139-94511 Weight: 0.200000 Brand: Price: $ 7.89 |
Drain Tube | 1 | $ 7.89 | 1984 to 1985 | |
| 5 | 13979-37400 Drain Tube Retainer (NLA)
SKU: 13979-37400 Weight: 0.062500 Brand: Price: $ 8.62 |
Drain Tube Retainer (NLA) | 1 | $ 8.62 | ||
| 6 | 61112-94502 Lower Cover Upper Seal (NLA)
SKU: 61112-94502 Weight: 1.500000 Brand: Price: $ 51.48 |
Lower Cover Upper Seal (NLA) | 1 | $ 51.48 | ||
| 7 | 61113-94503 Lower Cover Lower Seal
SKU: 61113-94503 Weight: 0.500000 Brand: Price: $ 23.66 |
Lower Cover Lower Seal | 1 | $ 23.66 | ||
| 8 | 61115-94503 Front Holder (NLA)
SKU: 61115-94503 Weight: 0.100000 Brand: Price: $ 7.96 |
Front Holder (NLA) | 1 | $ 7.96 | ||
| 9 | 61116-94501 Rear Holder (NLA)
SKU: 61116-94501 Weight: 0.100000 Brand: Price: $ 3.93 |
Rear Holder (NLA) | 1 | $ 3.93 | ||
| 10 | 61631-94500 Lower Engine Cover Hook (NLA)
SKU: 61631-94500 Weight: 1.000000 Brand: Price: $ 10.48 |
Lower Engine Cover Hook (NLA) | 2 | $ 10.48 | ||
| 11 | 09117-06040-XC0 Bolt (6x15)
SKU: 09117-06040-XC0 Weight: 0.060000 Brand: Price: $ 3.07 |
Bolt (6x15) | 2 | $ 3.07 | ||
| 12 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 13-1 | 09100-06083 Bolt (6x30) (NLA)
SKU: 09100-06083 Weight: 0.060000 Brand: Price: $ 0.95 |
Bolt (6x30) (NLA) | 4 | $ 0.95 | S/N 304983 Older | |
| 13-2 | 09117-06049 Bolt (6x25)
SKU: 09117-06049 Weight: 0.060000 Brand: Price: $ 3.08 |
Bolt (6x25) | 4 | $ 3.08 | S/N 304984 Newer | |
| 14 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 4 | $ 1.44 | ||
| 15 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 16-1 | 09100-06083 Bolt (6x30) (NLA)
SKU: 09100-06083 Weight: 0.060000 Brand: Price: $ 0.95 |
Bolt (6x30) (NLA) | 4 | $ 0.95 | 1983 to 1984 | |
| 16-2 | 09128-06052 Bolt (6x26) (NLA)
SKU: 09128-06052 Weight: 0.200000 Brand: Price: $ 1.56 |
Bolt (6x26) (NLA) | 4 | $ 1.56 | 1985 | |
| 17 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 4 | $ 1.49 | 1983 to 1984 | |
| 18 | 09118-08106 Bolt (8x50)
SKU: 09118-08106 Weight: 0.200000 Brand: Price: $ 5.65 |
Bolt (8x50) | 4 | $ 5.65 | ||
| 19-1 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 6 | $ 1.63 | ||
| 19-2 | 09181-08005 Washer (NLA)
SKU: 09181-08005 Weight: 0.100000 Brand: Price: $ 0.26 |
Washer (NLA) | 2 | $ 0.26 | 1983 to 1984 | |
| 19-3 | 09181-08007 Washer (NLA)
SKU: 09181-08007 Weight: 0.100000 Brand: Price: $ 0.43 |
Washer (NLA) | 2 | $ 0.43 | 1985 | |
| 20 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 4 | $ 1.49 | ||
| 21 | 09100-06089 Bolt (6x25) (NLA)
SKU: 09100-06089 Weight: 0.100000 Brand: Price: $ 0.82 |
Bolt (6x25) (NLA) | 1 | $ 0.82 | ||
| 22 | 61142-94502 Grommet (NLA)
SKU: 61142-94502 Weight: 0.100000 Brand: Price: $ 3.20 |
Grommet (NLA) | 1 | $ 3.20 | ||
| 23 | 09250-09008 Plug
SKU: 09250-09008 Weight: 0.125000 Brand: Price: $ 1.55 |
Plug | 1 | $ 1.55 | ||
| 24 | 09250-10012 Cap (NLA)
SKU: 09250-10012 Weight: 0.060000 Brand: Price: $ 1.46 |
Cap (NLA) | 1 | $ 1.46 | ||
| 25 | 09308-08013 Grommet
SKU: 09308-08013 Weight: 0.060000 Brand: Price: $ 1.26 |
Grommet | 2 | $ 1.26 | ||
| 26 | 67271-94500 Remocon Cable Holder
SKU: 67271-94500 Weight: 0.080000 Brand: Price: $ 6.25 |
Remocon Cable Holder | 1 | $ 6.25 | ||
| 27 | 67276-94502 Remocon Cable Holder Plate (NLA)
SKU: 67276-94502 Weight: 0.060000 Brand: Price: $ 13.99 |
Remocon Cable Holder Plate (NLA) | 2 | $ 13.99 | ||
| 28-1 | 09100-06113 Bolt (6x16)
SKU: 09100-06113 Weight: 0.200000 Brand: Price: $ 1.93 |
Bolt (6x16) | 2 | $ 1.93 | 1983 to 1984 | |
| 28-2 | 09117-06037-XC0 Bolt (6x35) (NLA)
SKU: 09117-06037-XC0 Weight: 0.060000 Brand: Price: $ 2.46 |
Bolt (6x35) (NLA) | 2 | $ 2.46 | 1985 | |
| 29 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 30 | 09117-06037-XC0 Bolt (6x35) (NLA)
SKU: 09117-06037-XC0 Weight: 0.060000 Brand: Price: $ 2.46 |
Bolt (6x35) (NLA) | 2 | $ 2.46 | ||
| 31 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 32-1 | 36656-94502 Cable Grommet (NLA)
SKU: 36656-94502 Weight: 0.100000 Brand: Price: $ 9.93 |
Cable Grommet (NLA) | 1 | $ 9.93 | 1983 | |
| 32-2 | 36656-94511 Cable Grommet (NLA)
SKU: 36656-94511 Weight: 0.100000 Brand: Price: $ 11.47 |
Cable Grommet (NLA) | 1 | $ 11.47 | 1984 to 1985 | |
| 33 | 36659-94503 Grommet Clamp (NLA)
SKU: 36659-94503 Weight: 0.100000 Brand: Price: $ 2.81 |
Grommet Clamp (NLA) | 1 | $ 2.81 | ||
| 34 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 2 | $ 2.06 | ||
| 35 | 33815-94500 Protector (NLA)
SKU: 33815-94500 Weight: 0.100000 Brand: Price: $ 0.88 |
Protector (NLA) | 1 | $ 0.88 | ||
| 36 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 37 | 02112-06127 SCREW
SKU: 02112-06127 Weight: 0.060000 Brand: Price: $ 1.85 |
SCREW | 1 | $ 1.85 | ||
| 38 | 13851-95210 Cushion (NLA)
SKU: 13851-95210 Weight: 0.100000 Brand: Price: $ 4.79 |
Cushion (NLA) | 1 | $ 4.79 | ||
| 39 | 61136-94500 Cushion (NLA)
SKU: 61136-94500 Weight: 0.100000 Brand: Price: $ 0.00 |
Cushion (NLA) | 2 | $ 0.00 | ||
| 40 | 61221-94560 Lower Cover Starboard Tape (NLA)
SKU: 61221-94560 Weight: 0.100000 Brand: Price: $ 14.44 |
Lower Cover Starboard Tape (NLA) | 1 | $ 14.44 | ||
| 41 | 61231-94560 Lower Cover Port Tape (NLA)
SKU: 61231-94560 Weight: 0.100000 Brand: Price: $ 13.01 |
Lower Cover Port Tape (NLA) | 1 | $ 13.01 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
