Suzuki DT 140 Parts Listings 1983 to 1985

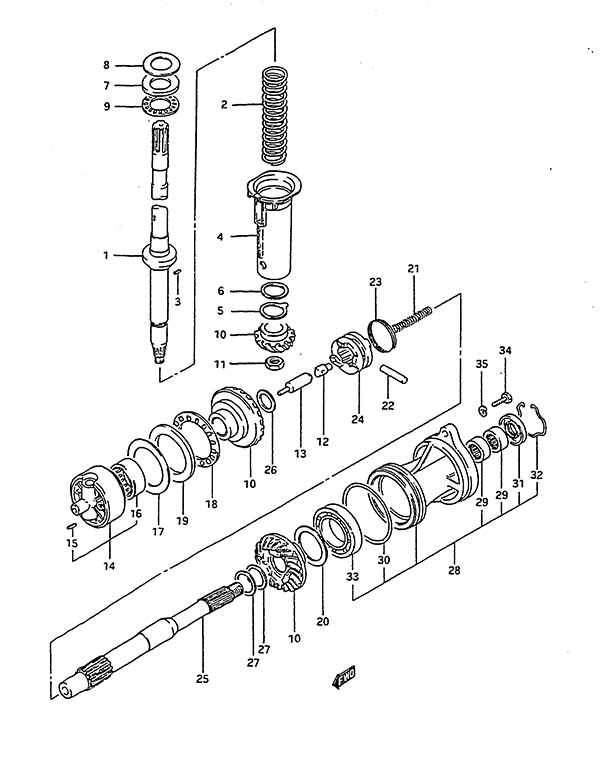

Fig. 27 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57100-94501 Driveshaft Assembly (L) (NLA)
SKU: 57100-94501 Weight: 0.100000 Brand: Price: $ 137.44 |
Driveshaft Assembly (L) (NLA) | 1 | $ 137.44 | Type: L | |
| 1-2 | 57100-94511 Driveshaft Assembly (X) (NLA)
SKU: 57100-94511 Weight: 0.100000 Brand: Price: $ 162.29 |
Driveshaft Assembly (X) (NLA) | 1 | $ 162.29 | Type: X | |
| 2 | 09440-31003 Drive Shaft Spring
SKU: 09440-31003 Weight: 0.100000 Brand: Price: $ 5.06 |
Drive Shaft Spring | 1 | $ 5.06 | ||
| 3 | 09205-04019 Pin
SKU: 09205-04019 Weight: 0.250000 Brand: Price: $ 1.57 |
Pin | 1 | $ 1.57 | ||
| 4 | 57133-94502 Drive Shaft Spring Collar (NLA)
SKU: 57133-94502 Weight: 0.250000 Brand: Price: $ 9.99 |
Drive Shaft Spring Collar (NLA) | 1 | $ 9.99 | ||
| 5 | 09166-30006 Thrust Washer (2.50)
SKU: 09166-30006 Weight: 0.200000 Brand: Price: $ 3.23 |
Thrust Washer (2.50) | 1 | $ 3.23 | ||
| 6 | 09160-30031 Thrust Washer (2.50) (NLA)
SKU: 09160-30031 Weight: 0.200000 Brand: Price: $ 4.27 |
Thrust Washer (2.50) (NLA) | 1 | $ 4.27 | ||
| 7 | 09160-32005 Thrust Washer (4.25)
SKU: 09160-32005 Weight: 0.100000 Brand: Price: $ 45.06 |
Thrust Washer (4.25) | 1 | $ 45.06 | ||
| 8-1 | 09181-30300 Shim (0.70)
SKU: 09181-30300 Weight: 0.060000 Brand: Price: $ 4.11 |
Shim (0.70) | 1 | $ 4.11 | ||
| 8-2 | 09181-30302 Shim (0.80) (NLA)
SKU: 09181-30302 Weight: 0.060000 Brand: Price: $ 3.19 |
Shim (0.80) (NLA) | 1 | $ 3.19 | ||
| 8-3 | 09181-30304 Shim (0.90) (NLA)
SKU: 09181-30304 Weight: 0.060000 Brand: Price: $ 2.47 |
Shim (0.90) (NLA) | 1 | $ 2.47 | ||
| 8-4 | 09181-30306 Shim (1.00) (NLA)
SKU: 09181-30306 Weight: 0.060000 Brand: Price: $ 3.36 |
Shim (1.00) (NLA) | 1 | $ 3.36 | ||
| 8-5 | 09181-30312 Shim (1.10) (NLA)
SKU: 09181-30312 Weight: 0.060000 Brand: Price: $ 3.74 |
Shim (1.10) (NLA) | 1 | $ 3.74 | ||
| 8-6 | 09181-30316 Shim (1.20)
SKU: 09181-30316 Weight: 0.060000 Brand: Price: $ 3.95 |
Shim (1.20) | 1 | $ 3.95 | ||
| 8-7 | 09181-30321 Shim (1.30)
SKU: 09181-30321 Weight: 0.060000 Brand: Price: $ 5.01 |
Shim (1.30) | 1 | $ 5.01 | ||
| 8-8 | 09181-30299 Shim (0.60) (NLA)
SKU: 09181-30299 Weight: 0.125000 Brand: Price: $ 3.41 |
Shim (0.60) (NLA) | 1 | $ 3.41 | ||
| 9 | 09263-30046 Bearing (30x52x8)
SKU: 09263-30046 Weight: 0.100000 Brand: Price: $ 111.37 |
Bearing (30x52x8) | 1 | $ 111.37 | ||
| 10-1 | 57300-94821 Pinion & Gear Set (NLA)
SKU: 57300-94821 Weight: 5.000000 Brand: Price: $ 358.13 |
Pinion & Gear Set (NLA) | 1 | $ 358.13 | 1983 | |
| 10-2 | 57300-94832 Pinion & Gear Set (NLA)
SKU: 57300-94832 Weight: 5.000000 Brand: Price: $ 515.89 |
Pinion & Gear Set (NLA) | 1 | $ 515.89 | 1984 to 1985 | |
| 11 | 09140-16021 Pinion Nut
SKU: 09140-16021 Weight: 0.060000 Brand: Price: $ 3.76 |
Pinion Nut | 1 | $ 3.76 | ||
| 12-1 | 57632-95501 Push Pin (NLA)
SKU: 57632-95501 Weight: 0.060000 Brand: Price: $ 6.20 |
Push Pin (NLA) | 1 | $ 6.20 | 1983 | |
| 12-2 | 09209-12007 Push Pin
SKU: 09209-12007 Weight: 0.060000 Brand: Price: $ 4.67 |
Push Pin | 1 | $ 4.67 | 1984 to 1985 | |
| 13 | 57631-94501 Push Rod (L:77) (NLA)
SKU: 57631-94501 Weight: 0.140000 Brand: Price: $ 12.10 |
Push Rod (L:77) (NLA) | 1 | $ 12.10 | ||
| 14-1 | 56140-94501 Fwd Gear Bearing Housing (NLA)
SKU: 56140-94501 Weight: 0.100000 Brand: Price: $ 95.57 |
Fwd Gear Bearing Housing (NLA) | 1 | $ 95.57 | 1983 | |
| 14-2 | 56140-94510 Forward Gear Bearing Housing (NLA)
SKU: 56140-94510 Weight: 1.000000 Brand: Price: $ 138.95 |
Forward Gear Bearing Housing (NLA) | 1 | $ 138.95 | 1984 to 1985 | |
| 15 | 09205-05011 Spring Pin (5x14)
SKU: 09205-05011 Weight: 0.100000 Brand: Price: $ 1.40 |
Spring Pin (5x14) | 1 | $ 1.40 | ||
| 16 | 09263-50001 Bearing (50x62x25)
SKU: 09263-50001 Weight: 0.250000 Brand: Price: $ 62.82 |
Bearing (50x62x25) | 1 | $ 62.82 | ||
| 17-1 | 09181-70001 Shim (0.70)
SKU: 09181-70001 Weight: 0.100000 Brand: Price: $ 5.56 |
Shim (0.70) | 1 | $ 5.56 | ||
| 17-2 | 09181-70002 Shim (0.80)
SKU: 09181-70002 Weight: 0.100000 Brand: Price: $ 5.56 |
Shim (0.80) | 1 | $ 5.56 | ||
| 17-3 | 09181-70003 Shim (0.90)
SKU: 09181-70003 Weight: 0.100000 Brand: Price: $ 5.56 |
Shim (0.90) | 1 | $ 5.56 | ||
| 17-4 | 09181-70004 Shim (1.00)
SKU: 09181-70004 Weight: 0.100000 Brand: Price: $ 5.56 |
Shim (1.00) | 1 | $ 5.56 | ||
| 17-5 | 09181-70005 Shim (0.50) (NLA)
SKU: 09181-70005 Weight: 0.100000 Brand: Price: $ 2.80 |
Shim (0.50) (NLA) | 1 | $ 2.80 | ||
| 17-6 | 09181-70006 Shim (0.60)
SKU: 09181-70006 Weight: 0.100000 Brand: Price: $ 6.25 |
Shim (0.60) | 1 | $ 6.25 | ||
| 18 | 09269-70001 Bearing (70x95x4.0)
SKU: 09269-70001 Weight: 0.180000 Brand: Price: $ 61.10 |
Bearing (70x95x4.0) | 1 | $ 61.10 | ||
| 19 | 09160-70002 Thrust Washer (5.25)
SKU: 09160-70002 Weight: 0.320000 Brand: Price: $ 58.89 |
Thrust Washer (5.25) | 1 | $ 58.89 | ||
| 20-1 | 09181-45003 Shim (1.00)
SKU: 09181-45003 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.00) | 1 | $ 3.57 | ||
| 20-2 | 09181-45004 Shim (1.10)
SKU: 09181-45004 Weight: 0.060000 Brand: Price: $ 4.99 |
Shim (1.10) | 1 | $ 4.99 | ||
| 20-3 | 09181-45005 Shim (1.20)
SKU: 09181-45005 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.20) | 1 | $ 3.57 | ||
| 20-4 | 09181-45006 Shim (1.30)
SKU: 09181-45006 Weight: 0.060000 Brand: Price: $ 3.64 |
Shim (1.30) | 1 | $ 3.64 | ||
| 20-5 | 09181-45007 Shim (1.40)
SKU: 09181-45007 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.40) | 1 | $ 3.57 | ||
| 20-6 | 09181-45008 Shim (1.50)
SKU: 09181-45008 Weight: 0.060000 Brand: Price: $ 3.64 |
Shim (1.50) | 1 | $ 3.64 | ||
| 20-7 | 09181-45009 Shim (1.60)
SKU: 09181-45009 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.60) | 1 | $ 3.57 | ||
| 21 | 09440-11020 Spring
SKU: 09440-11020 Weight: 0.060000 Brand: Price: $ 2.14 |
Spring | 1 | $ 2.14 | ||
| 22-1 | 09202-06020 Pin (6x48) (NLA)
SKU: 09202-06020 Weight: 0.125000 Brand: Price: $ 2.56 |
Pin (6x48) (NLA) | 1 | $ 2.56 | 1983 | |
| 22-2 | 09202-07002 Pin (7x48)
SKU: 09202-07002 Weight: 0.060000 Brand: Price: $ 4.25 |
Pin (7x48) | 1 | $ 4.25 | 1984 to 1985 | |
| 23-1 | 09440-49001 Clutch Dog Spring (NLA)
SKU: 09440-49001 Weight: 0.100000 Brand: Price: $ 1.35 |
Clutch Dog Spring (NLA) | 1 | $ 1.35 | ||
| 23-2 | 09440-50002 Clutch Dog Spring
SKU: 09440-50002 Weight: 0.060000 Brand: Price: $ 2.36 |
Clutch Dog Spring | 1 | $ 2.36 | ||
| 24-1 | 57621-94503 Clutch Dog Shifter (NLA)
SKU: 57621-94503 Weight: 2.000000 Brand: Price: $ 72.64 |
Clutch Dog Shifter (NLA) | 1 | $ 72.64 | 1983 | |
| 24-2 | 57621-94520 Clutch Dog Shifter
SKU: 57621-94520 Weight: 0.920000 Brand: Price: $ 132.16 |
Clutch Dog Shifter | 1 | $ 132.16 | 1984 to 1985 | |
| 25-1 | 57610-94504 Propeller Shaft Assembly (NLA)
SKU: 57610-94504 Weight: 0.100000 Brand: Price: $ 0.00 |
Propeller Shaft Assembly (NLA) | 1 | $ 0.00 | 1983 | |
| 25-2 | 57610-94505 Propeller Shaft Assembly (NLA)
SKU: 57610-94505 Weight: 0.100000 Brand: Price: $ 60.38 |
Propeller Shaft Assembly (NLA) | 1 | $ 60.38 | 1984 | |
| 25-3 | 57610-94506 Propeller Shaft Assembly (NLA)
SKU: 57610-94506 Weight: 3.200000 Brand: Price: $ 254.49 |
Propeller Shaft Assembly (NLA) | 1 | $ 254.49 | 1985 | |
| 26 | 09181-25030 Shim (3.00)
SKU: 09181-25030 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (3.00) | 1 | $ 3.57 | ||
| 27-1 | 09181-28016 Shim (1.00)
SKU: 09181-28016 Weight: 0.060000 Brand: Price: $ 3.82 |
Shim (1.00) | 1 | $ 3.82 | ||
| 27-2 | 09181-28017 Shim (1.20)
SKU: 09181-28017 Weight: 0.060000 Brand: Price: $ 4.11 |
Shim (1.20) | 1 | $ 4.11 | ||
| 27-3 | 09181-28019 Shim (1.40)
SKU: 09181-28019 Weight: 0.060000 Brand: Price: $ 3.89 |
Shim (1.40) | 1 | $ 3.89 | ||
| 27-4 | 09181-28020 Shim (1.60)
SKU: 09181-28020 Weight: 0.060000 Brand: Price: $ 4.03 |
Shim (1.60) | 1 | $ 4.03 | ||
| 27-5 | 09181-28018 Shim (1.30)
SKU: 09181-28018 Weight: 0.060000 Brand: Price: $ 4.11 |
Shim (1.30) | 1 | $ 4.11 | ||
| 28 | 56120-94513-0ED Propeller Shaft Bearing Housing (NLA)
SKU: 56120-94513-0ED Weight: 3.240000 Brand: Price: $ 376.40 |
Propeller Shaft Bearing Housing (NLA) | 1 | $ 376.40 | ||
| 29 | 09263-28013 Bearing (28x37x20)
SKU: 09263-28013 Weight: 0.120000 Brand: Price: $ 32.64 |
Bearing (28x37x20) | 2 | $ 32.64 | ||
| 30 | 09280-97001 O-Ring
SKU: 09280-97001 Weight: 0.060000 Brand: Price: $ 4.24 |
O-Ring | 1 | $ 4.24 | ||
| 31-1 | 09289-28006 Oil Seal
SKU: 09289-28006 Weight: 0.125000 Brand: Price: $ 14.75 |
Oil Seal | 1 | $ 14.75 | 1983 | |
| 31-2 | 09282-28002 Oil Seal
SKU: 09282-28002 Weight: 0.060000 Brand: Price: $ 9.07 |
Oil Seal | 2 | $ 9.07 | 1984 to 1985 | |
| 32 | 09387-52001 Set Ring (SUS)
SKU: 09387-52001 Weight: 0.060000 Brand: Price: $ 2.81 |
Set Ring (SUS) | 1 | $ 2.81 | ||
| 33 | 08113-60097 B1 45X75X16 BEA
SKU: 08113-60097 Weight: 0.580000 Brand: Price: $ 56.55 |
B1 45X75X16 BEA | 1 | $ 56.55 | ||
| 34 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 2 | $ 3.57 | ||
| 35 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
