Suzuki DT 140 Parts Listings 1983 to 1985

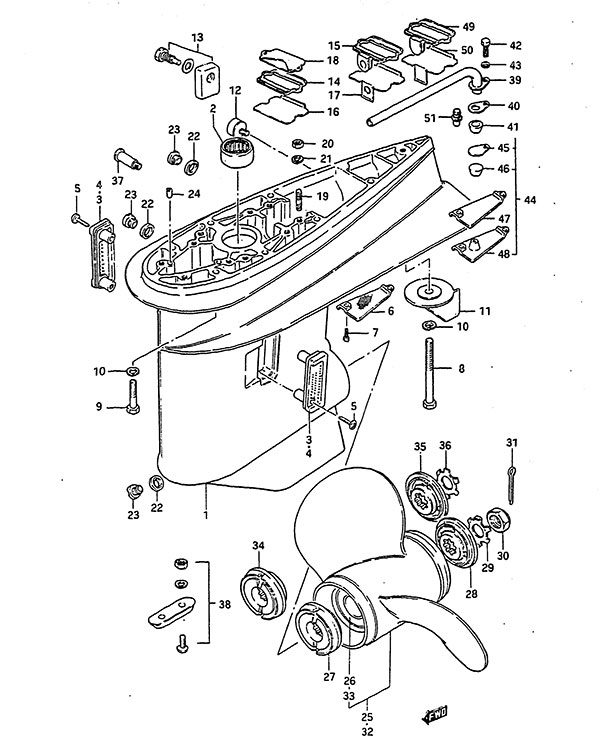

Fig. 26 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55100-94530-0ED Gear Case Housing
SKU: 55100-94530-0ED Weight: 24.000000 Brand: Price: $ 1,230.00 |
Gear Case Housing | 1 | $ 1,230.00 | ||
| 2 | 09263-28016 Bearing (28.6x38x31.8)
SKU: 09263-28016 Weight: 0.220000 Brand: Price: $ 89.23 |
Bearing (28.6x38x31.8) | 1 | $ 89.23 | ||
| 3-1 | 17631-94502 Water Filter (NLA)
SKU: 17631-94502 Weight: 0.060000 Brand: Price: $ 13.04 |
Water Filter (NLA) | 2 | $ 13.04 | S/N 304871 Older | |
| 3-2 | 17631-94990 Water Filter (NLA)
SKU: 17631-94990 Weight: 0.100000 Brand: Price: $ 0.00 |
Water Filter (NLA) | 2 | $ 0.00 | S/N 304872 to 305081 | |
| 4 | 17631-94600 Water Filter
SKU: 17631-94600 Weight: 0.060000 Brand: Price: $ 13.29 |
Water Filter | 2 | $ 13.29 | 1984 to 1985 | |
| 5-1 | 03112-06303 Screw (NLA)
SKU: 03112-06303 Weight: 0.060000 Brand: Price: $ 2.20 |
Screw (NLA) | 2 | $ 2.20 | S/N 304871 Older | |
| 5-2 | 03112-04309 SCREW 4X30
SKU: 03112-04309 Weight: 0.060000 Brand: Price: $ 1.73 |
SCREW 4X30 | 2 | $ 1.73 | S/N 304872 Newer | |
| 6 | 17635-94500 Sub Water Filter
SKU: 17635-94500 Weight: 0.060000 Brand: Price: $ 5.64 |
Sub Water Filter | 1 | $ 5.64 | 1984 to 1985 | |
| 7 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | 1984 to 1985 | |
| 8 | 09116-10142 Bolt (10x100) w/Washer
SKU: 09116-10142 Weight: 0.140000 Brand: Price: $ 8.14 |
Bolt (10x100) w/Washer | 1 | $ 8.14 | ||
| 9 | 09100-10157-XC0 Bolt (10x45)
SKU: 09100-10157-XC0 Weight: 0.080000 Brand: Price: $ 7.10 |
Bolt (10x45) | 8 | $ 7.10 | ||
| 10 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 9 | $ 1.86 | ||
| 11 | 55125-94502 Zinc Anode
SKU: 55125-94502 Weight: 0.580000 Brand: Price: $ 23.71 |
Zinc Anode | 1 | $ 23.71 | ||
| 12 | 11130-94600 Zinc Anode
SKU: 11130-94600 Weight: 0.060000 Brand: Price: $ 9.01 |
Zinc Anode | 1 | $ 9.01 | 1983 | |
| 13 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 1 | $ 8.74 | 1984 to 1985 | |
| 14 | 55332-94503 Exhaust Seal Rubber (NLA)
SKU: 55332-94503 Weight: 0.100000 Brand: Price: $ 7.48 |
Exhaust Seal Rubber (NLA) | 1 | $ 7.48 | 1983 | |
| 14 | 55332-94510 Exhaust Seal Rubber (NLA)
SKU: 55332-94510 Weight: 0.060000 Brand: Price: $ 11.92 |
Exhaust Seal Rubber (NLA) | 1 | $ 11.92 | 1984 to 1985 | |
| 16 | 55333-94520 Exhaust Seal Plate (NLA)
SKU: 55333-94520 Weight: 0.080000 Brand: Price: $ 6.01 |
Exhaust Seal Plate (NLA) | 1 | $ 6.01 | 1983 | |
| 17 | 55333-94510 Exhaust Seal Plate
SKU: 55333-94510 Weight: 0.080000 Brand: Price: $ 6.21 |
Exhaust Seal Plate | 1 | $ 6.21 | 1984 to 1985 | |
| 18 | 55334-94500 Exhaust Seal Cover
SKU: 55334-94500 Weight: 0.060000 Brand: Price: $ 30.19 |
Exhaust Seal Cover | 1 | $ 30.19 | ||
| 19 | 09108-06062 Stud Bolt (6x12)
SKU: 09108-06062 Weight: 0.060000 Brand: Price: $ 1.62 |
Stud Bolt (6x12) | 2 | $ 1.62 | ||
| 20 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 21 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 22 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 3 | $ 1.60 | ||
| 23 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 3 | $ 6.59 | ||
| 24 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 2 | $ 1.78 | ||
| 25-1 | 58100-95511-01T U1700 Propeller 3x13-1/4x17 (NLA)
SKU: 58100-95511-01T Weight: 0.100000 Brand: Price: $ 103.41 |
U1700 Propeller 3x13-1/4x17 (NLA) | 1 | $ 103.41 | ||
| 25-2 | 58100-95521-01T U1900 Propeller 3x13x19 (NLA)
SKU: 58100-95521-01T Weight: 0.100000 Brand: Price: $ 103.41 |
U1900 Propeller 3x13x19 (NLA) | 1 | $ 103.41 | ||
| 26 | 58120-95500 Type U Propeller Bushing
SKU: 58120-95500 Weight: 1.000000 Brand: Price: $ 64.81 |
Type U Propeller Bushing | 1 | $ 64.81 | ||
| 27 | 57635-95503 Propeller Bushing Stopper
SKU: 57635-95503 Weight: 0.660000 Brand: Price: $ 80.98 |
Propeller Bushing Stopper | 1 | $ 80.98 | Type: U | |
| 28 | 57633-95501 Propeller Nut Spacer
SKU: 57633-95501 Weight: 0.200000 Brand: Price: $ 35.83 |
Propeller Nut Spacer | 1 | $ 35.83 | Type: U | |
| 30 | 09159-18004 Nut
SKU: 09159-18004 Weight: 0.080000 Brand: Price: $ 21.41 |
Nut | 1 | $ 21.41 | ||
| 31 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 32-1 | 58100-94553-15M VS1500 S/S Propeller 3x13 1/2x15 (NLA)
SKU: 58100-94553-15M Weight: 0.100000 Brand: Price: $ 222.60 |
VS1500 S/S Propeller 3x13 1/2x15 (NLA) | 1 | $ 222.60 | ||
| 32-2 | 58100-94500-019 V1500 Propeller 3x13-1/2x15
SKU: 58100-94500-019 Weight: 10.000000 Brand: Price: $ 242.32 |
V1500 Propeller 3x13-1/2x15 | 1 | $ 242.32 | ||
| 32-3 | 99105-00100-16P S/S Propeller 3x13-1/14x16 (NLA)
SKU: 99105-00100-16P Weight: 24.000000 Brand: Price: $ 421.27 |
S/S Propeller 3x13-1/14x16 (NLA) | 1 | $ 421.27 | ||
| 32-4 | 58100-94512-019 V1700 Propeller 3x13-3/4x17
SKU: 58100-94512-019 Weight: 10.000000 Brand: Price: $ 242.32 |
V1700 Propeller 3x13-3/4x17 | 1 | $ 242.32 | ||
| 32-5 | 58100-94560-15M VS1900 S/S Propeller 3x13x19 (NLA)
SKU: 58100-94560-15M Weight: 0.100000 Brand: Price: $ 222.60 |
VS1900 S/S Propeller 3x13x19 (NLA) | 1 | $ 222.60 | ||
| 32-6 | 58100-94522-019 V1900 Propeller 3x13x19
SKU: 58100-94522-019 Weight: 10.000000 Brand: Price: $ 266.55 |
V1900 Propeller 3x13x19 | 1 | $ 266.55 | ||
| 32-7 | 58100-94570-15M VS2100 S/S Propeller 3x13x21 (NLA)
SKU: 58100-94570-15M Weight: 0.100000 Brand: Price: $ 222.60 |
VS2100 S/S Propeller 3x13x21 (NLA) | 1 | $ 222.60 | ||
| 32-8 | 58100-94532-019 V2100 Propeller 3x13x21
SKU: 58100-94532-019 Weight: 10.000000 Brand: Price: $ 235.26 |
V2100 Propeller 3x13x21 | 1 | $ 235.26 | ||
| 33 | 58120-94520 Propeller Bushing (NLA)
SKU: 58120-94520 Weight: 1.120000 Brand: Price: $ 59.60 |
Propeller Bushing (NLA) | 1 | $ 59.60 | ||
| 34 | 57635-94502 Propeller Bushing Stopper
SKU: 57635-94502 Weight: 0.580000 Brand: Price: $ 103.93 |
Propeller Bushing Stopper | 1 | $ 103.93 | Type: V | |
| 35 | 57633-94500 Propeller Nut Spacer
SKU: 57633-94500 Weight: 0.320000 Brand: Price: $ 28.04 |
Propeller Nut Spacer | 1 | $ 28.04 | Type: V | |
| 36 | 57634-94500 Propeller Nut Washer (NLA)
SKU: 57634-94500 Weight: 0.060000 Brand: Price: $ 4.09 |
Propeller Nut Washer (NLA) | 1 | $ 4.09 | Type: V | |
| 37 | 55181-95200 Flush Hose Attachment
SKU: 55181-95200 Weight: 0.080000 Brand: Price: $ 7.16 |
Flush Hose Attachment | 1 | $ 7.16 | ||
| 38 | 55300-95500 Zinc Anode
SKU: 55300-95500 Weight: 0.240000 Brand: Price: $ 16.96 |
Zinc Anode | 1 | $ 16.96 | Optional | |
| 39 | 17520-94500 Sub Water Tube (NLA)
SKU: 17520-94500 Weight: 0.250000 Brand: Price: $ 31.85 |
Sub Water Tube (NLA) | 1 | $ 31.85 | S/N 404979 Newer | |
| 40 | 17523-94510 Sub Water Tube Gasket
SKU: 17523-94510 Weight: 0.060000 Brand: Price: $ 3.08 |
Sub Water Tube Gasket | 1 | $ 3.08 | S/N 404979 Newer | |
| 41 | 17564-94500 Sub Water Tube Bushing
SKU: 17564-94500 Weight: 0.060000 Brand: Price: $ 3.04 |
Sub Water Tube Bushing | 1 | $ 3.04 | S/N 404979 Newer | |
| 42 | 09117-06040-XC0 Bolt (6x15)
SKU: 09117-06040-XC0 Weight: 0.060000 Brand: Price: $ 3.07 |
Bolt (6x15) | 1 | $ 3.07 | S/N 404979 Newer | |
| 43 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 1 | $ 1.49 | S/N 404979 Newer | |
| 44 | 17500-94520 Exhaust Seal Assembly (NLA)
SKU: 17500-94520 Weight: 0.180000 Brand: Price: $ 13.27 |
Exhaust Seal Assembly (NLA) | 1 | $ 13.27 | 1984 to 1985 | |
| 45 | 17522-94520 Gear Case Plug Plate (NLA)
SKU: 17522-94520 Weight: 0.100000 Brand: Price: $ 6.60 |
Gear Case Plug Plate (NLA) | 1 | $ 6.60 | Opt: 1984 to 1985 | |
| 46 | 17564-94520 Gear Case Plug (NLA)
SKU: 17564-94520 Weight: 0.100000 Brand: Price: $ 2.32 |
Gear Case Plug (NLA) | 1 | $ 2.32 | Opt: 1984 to 1985 | |
| 47 | 17635-94521 Gear Case Plate (NLA)
SKU: 17635-94521 Weight: 0.100000 Brand: Price: $ 4.38 |
Gear Case Plate (NLA) | 1 | $ 4.38 | Opt: 1984 | |
| 48 | 17635-94521 Gear Case Plate (NLA)
SKU: 17635-94521 Weight: 0.100000 Brand: Price: $ 4.38 |
Gear Case Plate (NLA) | 1 | $ 4.38 | Opt: 1985 | |
| 49 | 55332-94520 Exhaust Seal Rubber
SKU: 55332-94520 Weight: 0.060000 Brand: Price: $ 12.89 |
Exhaust Seal Rubber | 1 | $ 12.89 | Opt: 1984 to 1985 | |
| 50 | 55333-94520 Exhaust Seal Plate (NLA)
SKU: 55333-94520 Weight: 0.080000 Brand: Price: $ 6.01 |
Exhaust Seal Plate (NLA) | 1 | $ 6.01 | Opt: 1984 to 1985 | |
| 51 | 17636-94500 Sub Water Tube Plug (NLA)
SKU: 17636-94500 Weight: 0.200000 Brand: Price: $ 3.73 |
Sub Water Tube Plug (NLA) | 1 | $ 3.73 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
