Suzuki DT 140 Parts Listings 1983 to 1985

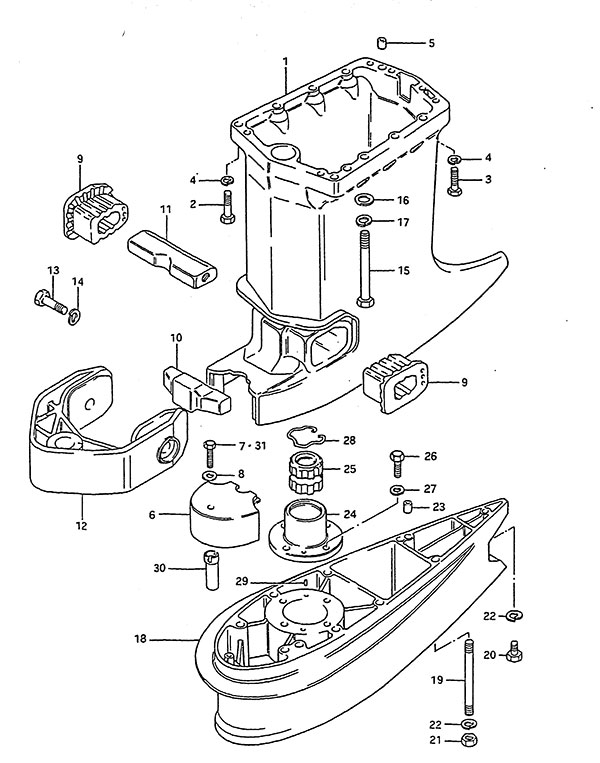

Fig. 25 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 52111-94506-02M Drive Shaft Housing (NLA)
SKU: 52111-94506-02M Weight: 0.100000 Brand: Price: $ 153.21 |
Drive Shaft Housing (NLA) | 1 | $ 153.21 | S/N 406441 Older | |
| 1-2 | 52111-94507-02M Drive Shaft Housing (NLA)
SKU: 52111-94507-02M Weight: 0.100000 Brand: Price: $ 173.15 |
Drive Shaft Housing (NLA) | 1 | $ 173.15 | S/N 406442 to 406620 | |
| 1-3 | 52111-94508-02M Drive Shaft Housing (NLA)
SKU: 52111-94508-02M Weight: 0.100000 Brand: Price: $ 301.92 |
Drive Shaft Housing (NLA) | 1 | $ 301.92 | S/N 506621 Newer | |
| 2-1 | 09117-08056-XC0 Bolt (8x40)
SKU: 09117-08056-XC0 Weight: 0.060000 Brand: Price: $ 7.86 |
Bolt (8x40) | 2 | $ 7.86 | 1983 | |
| 2-2 | 09116-08128 Bolt (8x40)
SKU: 09116-08128 Weight: 0.125000 Brand: Price: $ 4.11 |
Bolt (8x40) | 2 | $ 4.11 | 1984 | |
| 3 | 09100-08224-XC0 Bolt (8x35)
SKU: 09100-08224-XC0 Weight: 0.060000 Brand: Price: $ 5.06 |
Bolt (8x35) | 4 | $ 5.06 | ||
| 4 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 6 | $ 1.49 | ||
| 5 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 2 | $ 1.78 | ||
| 6 | 52121-94502-0ED Drive Shaft Housing Cover (NLA)
SKU: 52121-94502-0ED Weight: 0.220000 Brand: Price: $ 29.57 |
Drive Shaft Housing Cover (NLA) | 1 | $ 29.57 | ||
| 7-1 | 09117-06037-XC0 Bolt (6x35) (NLA)
SKU: 09117-06037-XC0 Weight: 0.060000 Brand: Price: $ 2.46 |
Bolt (6x35) (NLA) | 1 | $ 2.46 | 1983 to 1984 | |
| 7-2 | 29103-94400 Bolt (6x35)
SKU: 29103-94400 Weight: 0.125000 Brand: Price: $ 2.55 |
Bolt (6x35) | 1 | $ 2.55 | 1985 | |
| 8 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 9-1 | 54161-94503 Lower Mount (NLA)
SKU: 54161-94503 Weight: 1.000000 Brand: Price: $ 12.53 |
Lower Mount (NLA) | 2 | $ 12.53 | ||
| 9-2 | 54161-94510 Lower Mount (NLA)
SKU: 54161-94510 Weight: 1.000000 Brand: Price: $ 12.53 |
Lower Mount (NLA) | 2 | $ 12.53 | Opt: Hard Type | |
| 10-1 | 54165-94504 Lower Thrust Mount (NLA)
SKU: 54165-94504 Weight: 0.100000 Brand: Price: $ 10.41 |
Lower Thrust Mount (NLA) | 1 | $ 10.41 | ||
| 10-2 | 54165-94510 Lower Thrust Mount (NLA)
SKU: 54165-94510 Weight: 0.100000 Brand: Price: $ 11.12 |
Lower Thrust Mount (NLA) | 1 | $ 11.12 | Opt: Hard Type | |
| 11 | 54166-94501 Lower Mount Stopper (NLA)
SKU: 54166-94501 Weight: 0.100000 Brand: Price: $ 30.57 |
Lower Mount Stopper (NLA) | 1 | $ 30.57 | ||
| 12-1 | 54210-94501-02M Lower Mounting Bracket (NLA)
SKU: 54210-94501-02M Weight: 0.100000 Brand: Price: $ 0.00 |
Lower Mounting Bracket (NLA) | 1 | $ 0.00 | 1983 to 1984 | |
| 12-2 | 54210-94503-02M Lower Mounting Bracket (NLA)
SKU: 54210-94503-02M Weight: 0.100000 Brand: Price: $ 48.70 |
Lower Mounting Bracket (NLA) | 1 | $ 48.70 | 1985 | |
| 13 | 09104-14001 Bolt (14x55) (NLA)
SKU: 09104-14001 Weight: 0.100000 Brand: Price: $ 1.54 |
Bolt (14x55) (NLA) | 2 | $ 1.54 | ||
| 14-1 | 09162-14003 Lock Washer (NLA)
SKU: 09162-14003 Weight: 0.100000 Brand: Price: $ 0.77 |
Lock Washer (NLA) | 2 | $ 0.77 | 1983 | |
| 14-2 | 09162-14004 Lock Washer (NLA)
SKU: 09162-14004 Weight: 0.100000 Brand: Price: $ 1.65 |
Lock Washer (NLA) | 2 | $ 1.65 | 1984 to 1985 | |
| 15 | 09100-10159 Bolt (10x130) (NLA)
SKU: 09100-10159 Weight: 0.180000 Brand: Price: $ 8.02 |
Bolt (10x130) (NLA) | 8 | $ 8.02 | ||
| 16 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 8 | $ 1.63 | ||
| 17 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 8 | $ 1.86 | ||
| 18 | 52131-94502-02M Extension Case (X) (NLA)
SKU: 52131-94502-02M Weight: 0.100000 Brand: Price: $ 162.47 |
Extension Case (X) (NLA) | 1 | $ 162.47 | Type: X | |
| 19 | 09108-10050 Stud Bolt (NLA)
SKU: 09108-10050 Weight: 0.300000 Brand: Price: $ 11.84 |
Stud Bolt (NLA) | 8 | $ 11.84 | ||
| 20 | 09100-10157-XC0 Bolt (10x45)
SKU: 09100-10157-XC0 Weight: 0.080000 Brand: Price: $ 7.10 |
Bolt (10x45) | 1 | $ 7.10 | ||
| 21 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 8 | $ 2.04 | ||
| 22 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 9 | $ 1.86 | ||
| 23 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 2 | $ 1.78 | ||
| 24 | 52161-94500 Bushing Housing (NLA)
SKU: 52161-94500 Weight: 0.100000 Brand: Price: $ 33.32 |
Bushing Housing (NLA) | 1 | $ 33.32 | ||
| 25 | 57130-94501 Drive Shaft Bushing
SKU: 57130-94501 Weight: 0.250000 Brand: Price: $ 59.33 |
Drive Shaft Bushing | 1 | $ 59.33 | ||
| 26 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 4 | $ 3.57 | ||
| 27 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 4 | $ 1.49 | ||
| 28 | 09387-45001 Set Ring (SUS)
SKU: 09387-45001 Weight: 0.060000 Brand: Price: $ 2.81 |
Set Ring (SUS) | 1 | $ 2.81 | ||
| 29 | 04221-05109 PIN
SKU: 04221-05109 Weight: 0.125000 Brand: Price: $ 1.49 |
PIN | 2 | $ 1.49 | ||
| 30 | 52122-94500 Cover Spacer (NLA)
SKU: 52122-94500 Weight: 0.100000 Brand: Price: $ 2.41 |
Cover Spacer (NLA) | 1 | $ 2.41 | ||
| 31 | 01550-06657 BOLT
SKU: 01550-06657 Weight: 0.060000 Brand: Price: $ 3.61 |
BOLT | 1 | $ 3.61 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
