Suzuki DT 140 Parts Listings 1983 to 1985

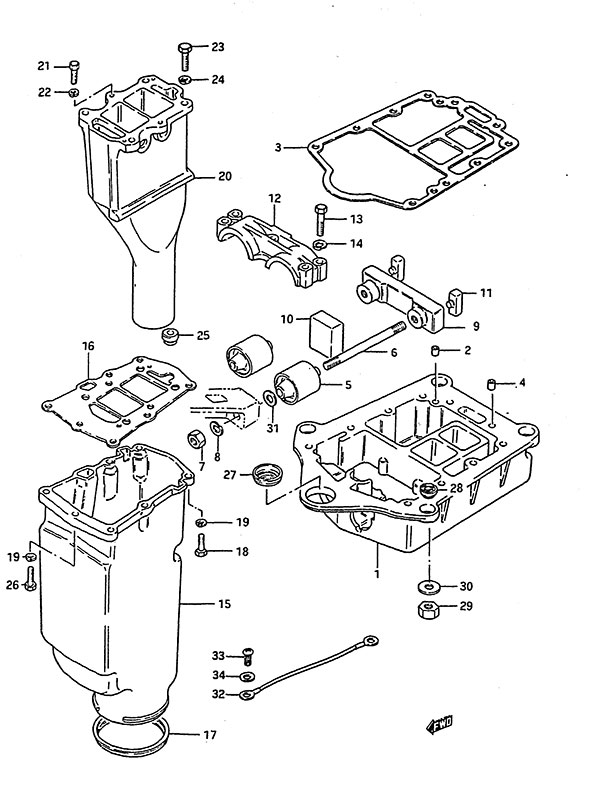

Fig. 24 - Engine Holder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 51111-94503-02M Engine Holder (NLA)
SKU: 51111-94503-02M Weight: 0.100000 Brand: Price: $ 0.00 |
Engine Holder (NLA) | 1 | $ 0.00 | 1983 | |
| 1-2 | 51111-94505-02M Engine Holder (NLA)
SKU: 51111-94505-02M Weight: 0.100000 Brand: Price: $ 0.00 |
Engine Holder (NLA) | 1 | $ 0.00 | S/N 405082 to 406334 | |
| 1-3 | 51111-94507-02M Engine Holder (NLA)
SKU: 51111-94507-02M Weight: 0.100000 Brand: Price: $ 118.65 |
Engine Holder (NLA) | 1 | $ 118.65 | S/N 406335 Newer | |
| 2 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 2 | $ 1.78 | ||
| 3 | 51211-94530 Engine Holder Gasket (NLA)
SKU: 51211-94530 Weight: 0.180000 Brand: Price: $ 43.08 |
Engine Holder Gasket (NLA) | 1 | $ 43.08 | ||
| 4 | 09206-13017 Pin (13x20)
SKU: 09206-13017 Weight: 0.125000 Brand: Price: $ 7.73 |
Pin (13x20) | 2 | $ 7.73 | ||
| 5-1 | 54130-94501 Upper Mount
SKU: 54130-94501 Weight: 1.000000 Brand: Price: $ 62.09 |
Upper Mount | 2 | $ 62.09 | ||
| 5-2 | 54130-94510 Upper Mount (NLA)
SKU: 54130-94510 Weight: 8.500000 Brand: Price: $ 67.73 |
Upper Mount (NLA) | 2 | $ 67.73 | Opt: Hard Type | |
| 6 | 09108-12002 Stud Bolt
SKU: 09108-12002 Weight: 0.250000 Brand: Price: $ 18.78 |
Stud Bolt | 2 | $ 18.78 | ||
| 7-1 | 09140-12020 Nut (NLA)
SKU: 09140-12020 Weight: 0.100000 Brand: Price: $ 0.00 |
Nut (NLA) | 2 | $ 0.00 | 1983 | |
| 7-2 | 09140-12029 Nut
SKU: 09140-12029 Weight: 0.060000 Brand: Price: $ 3.08 |
Nut | 2 | $ 3.08 | 1984 to 1985 | |
| 8 | 09162-12005 Lock Washer
SKU: 09162-12005 Weight: 0.060000 Brand: Price: $ 2.06 |
Lock Washer | 2 | $ 2.06 | ||
| 9 | 54136-94503 Upper Mount Stopper (NLA)
SKU: 54136-94503 Weight: 0.500000 Brand: Price: $ 41.07 |
Upper Mount Stopper (NLA) | 1 | $ 41.07 | ||
| 10-1 | 54141-94501 Upper Front Mount
SKU: 54141-94501 Weight: 0.200000 Brand: Price: $ 9.02 |
Upper Front Mount | 1 | $ 9.02 | ||
| 10-2 | 54141-94510 Upper Front Mount (NLA)
SKU: 54141-94510 Weight: 0.100000 Brand: Price: $ 5.65 |
Upper Front Mount (NLA) | 1 | $ 5.65 | Opt: Hard Type | |
| 11-1 | 54142-94502 Upper Rear Mount (NLA)
SKU: 54142-94502 Weight: 0.100000 Brand: Price: $ 2.62 |
Upper Rear Mount (NLA) | 2 | $ 2.62 | ||
| 11-2 | 54142-94510 Upper Rear Mount (NLA)
SKU: 54142-94510 Weight: 0.100000 Brand: Price: $ 2.43 |
Upper Rear Mount (NLA) | 2 | $ 2.43 | Opt: Hard Type | |
| 12 | 51112-94502 Upper Mount Cover (NLA)
SKU: 51112-94502 Weight: 0.800000 Brand: Price: $ 51.88 |
Upper Mount Cover (NLA) | 1 | $ 51.88 | ||
| 13 | 09100-08160 Bolt (8x45)
SKU: 09100-08160 Weight: 0.060000 Brand: Price: $ 3.77 |
Bolt (8x45) | 5 | $ 3.77 | ||
| 14 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 5 | $ 1.49 | ||
| 15 | 52171-94503 Exhaust Housing (NLA)
SKU: 52171-94503 Weight: 0.100000 Brand: Price: $ 123.72 |
Exhaust Housing (NLA) | 1 | $ 123.72 | ||
| 16 | 52172-94571 Exhaust Housing Gasket
SKU: 52172-94571 Weight: 0.250000 Brand: Price: $ 66.14 |
Exhaust Housing Gasket | 1 | $ 66.14 | ||
| 17 | 52173-94502 Exhaust Housing Seal
SKU: 52173-94502 Weight: 0.080000 Brand: Price: $ 16.26 |
Exhaust Housing Seal | 1 | $ 16.26 | ||
| 18-1 | 09100-06089 Bolt (6x25) (NLA)
SKU: 09100-06089 Weight: 0.100000 Brand: Price: $ 0.82 |
Bolt (6x25) (NLA) | 6 | $ 0.82 | 1983 | |
| 18-2 | 01550-0625A BOLT
SKU: 01550-0625A Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 6 | $ 1.97 | 1984 to 1985 | |
| 19 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 7 | $ 1.49 | ||
| 20-1 | 14211-94505 Exhaust Tube (NLA)
SKU: 14211-94505 Weight: 0.100000 Brand: Price: $ 30.59 |
Exhaust Tube (NLA) | 1 | $ 30.59 | S/N 405085 Older | |
| 20-2 | 14211-94506 Exhaust Tube (NLA)
SKU: 14211-94506 Weight: 0.100000 Brand: Price: $ 71.26 |
Exhaust Tube (NLA) | 1 | $ 71.26 | S/N 405086 to 406441 | |
| 20-3 | 14211-94511 Exhaust Tube (NLA)
SKU: 14211-94511 Weight: 0.100000 Brand: Price: $ 63.43 |
Exhaust Tube (NLA) | 1 | $ 63.43 | S/N 406442 to 406620 | |
| 20-4 | 14211-94600 Exhuast Tube (NLA)
SKU: 14211-94600 Weight: 0.100000 Brand: Price: $ 56.38 |
Exhuast Tube (NLA) | 1 | $ 56.38 | S/N 506621 Newer | |
| 21 | 09100-06089 Bolt (6x25) (NLA)
SKU: 09100-06089 Weight: 0.100000 Brand: Price: $ 0.82 |
Bolt (6x25) (NLA) | 2 | $ 0.82 | ||
| 22 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 23 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 4 | $ 3.57 | ||
| 24 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 4 | $ 1.49 | ||
| 25 | 09308-06010 Grommet (NLA)
SKU: 09308-06010 Weight: 0.100000 Brand: Price: $ 0.86 |
Grommet (NLA) | 1 | $ 0.86 | ||
| 26-1 | 09100-06049 Bolt (NLA)
SKU: 09100-06049 Weight: 0.100000 Brand: Price: $ 0.00 |
Bolt (NLA) | 1 | $ 0.00 | 1983 | |
| 26-2 | 09100-06121 Bolt (6x30) (NLA)
SKU: 09100-06121 Weight: 0.060000 Brand: Price: $ 1.22 |
Bolt (6x30) (NLA) | 1 | $ 1.22 | 1984 to 1985 | |
| 27 | 09284-08004 Seal (NLA)
SKU: 09284-08004 Weight: 0.062500 Brand: Price: $ 5.47 |
Seal (NLA) | 1 | $ 5.47 | ||
| 28 | 09319-08043 Bushing (NLA)
SKU: 09319-08043 Weight: 0.200000 Brand: Price: $ 10.98 |
Bushing (NLA) | 4 | $ 10.98 | ||
| 29 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 4 | $ 2.52 | ||
| 30-1 | 09160-08052 Washer (NLA)
SKU: 09160-08052 Weight: 0.060000 Brand: Price: $ 0.80 |
Washer (NLA) | 4 | $ 0.80 | S/N 305081 Older | |
| 30-2 | 09160-08081 Washer (8.5x23x1.5)
SKU: 09160-08081 Weight: 0.060000 Brand: Price: $ 2.68 |
Washer (8.5x23x1.5) | 4 | $ 2.68 | S/N 405082 Newer | |
| 31 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 1 | $ 3.13 | ||
| 32 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 33 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 34 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 2 | $ 2.90 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
